LDV55-PED - EOL
This product has been discontinued.
Part number:
LDV55-PED
Price:

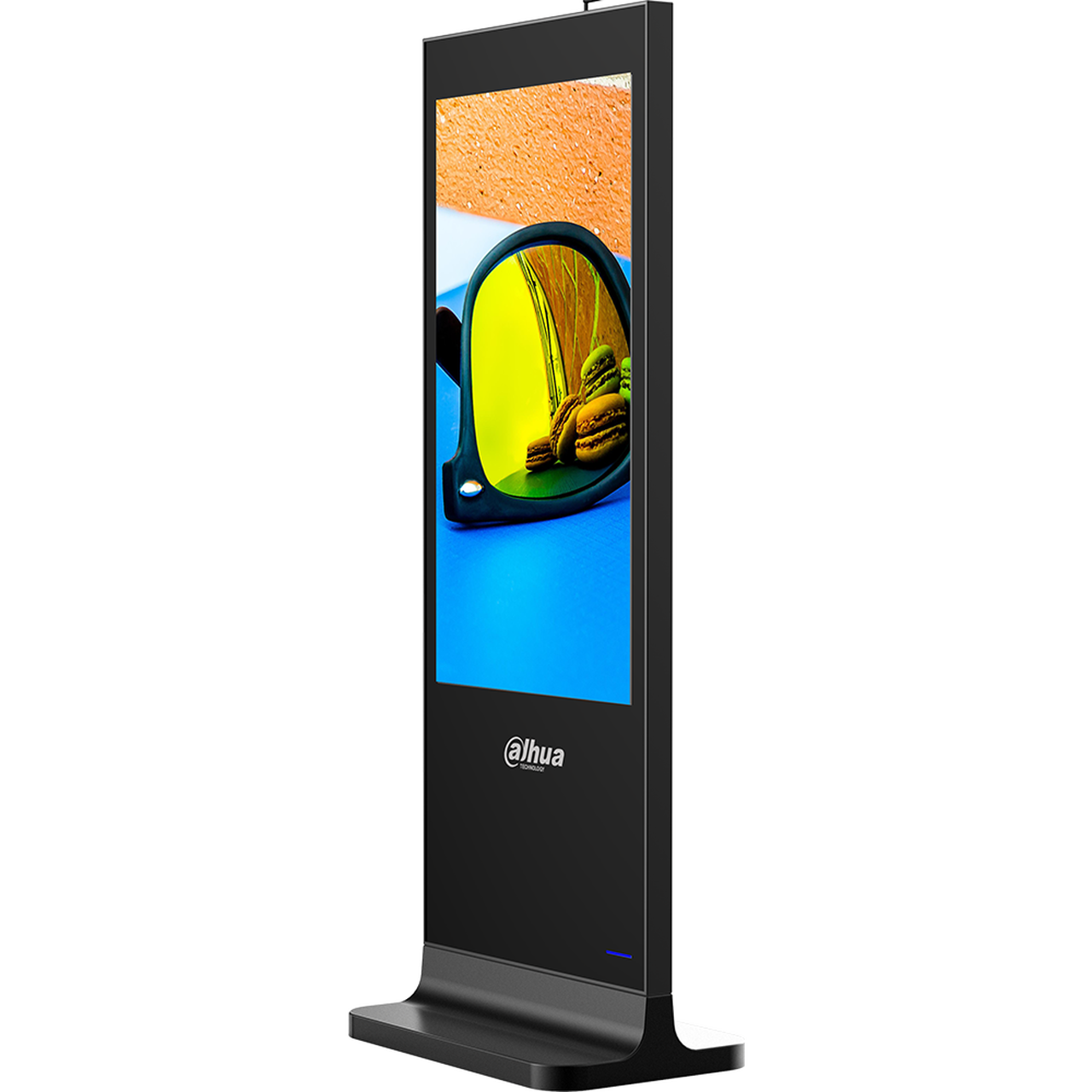

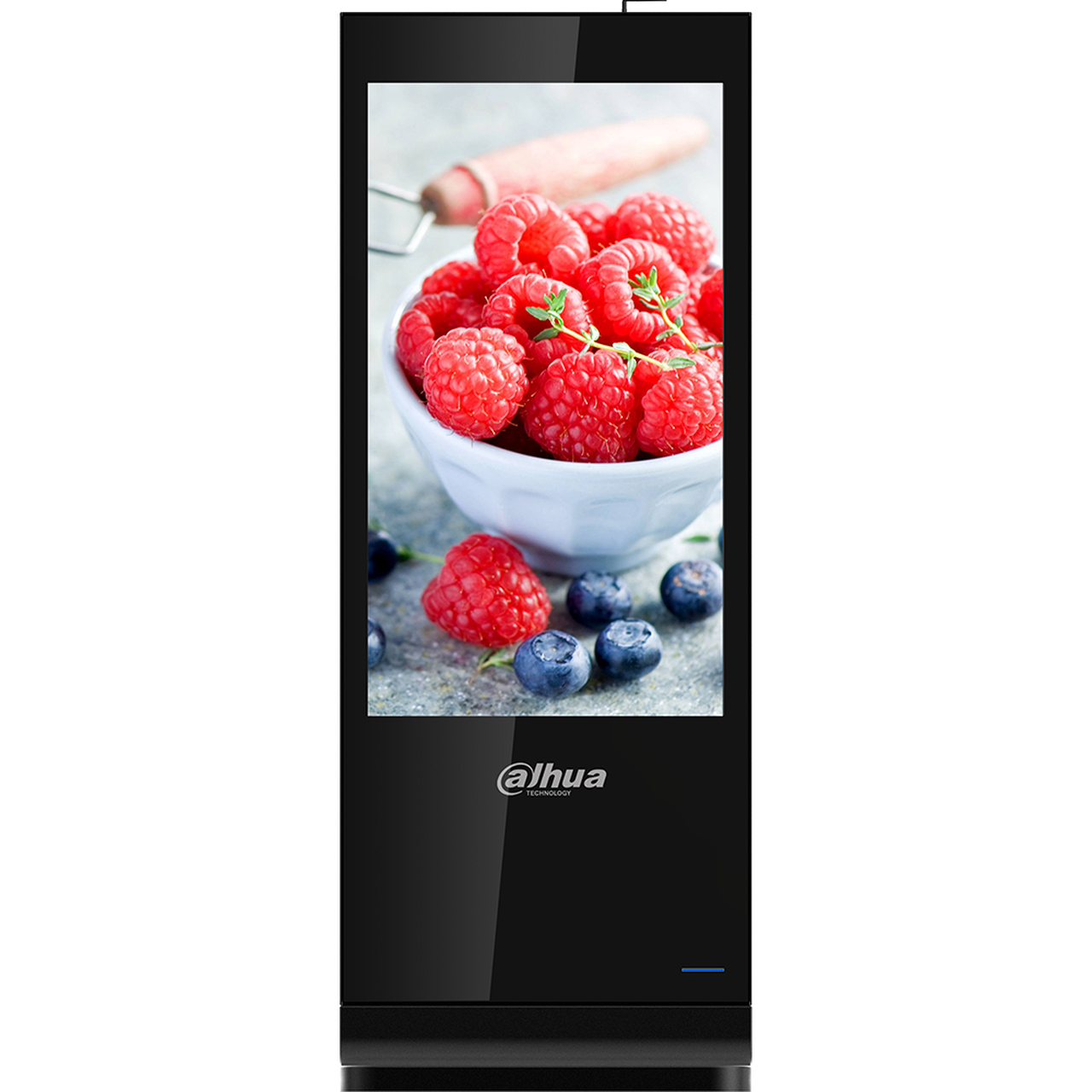

Pedestal for LDV55 Floor Standing Digital Signage
Features:
- Pedestal for LDV55 Floor Standing Digital Signage
- 55-inch, 1080p Full HD Display
- Industrial-grade, Full Metal Casing
- Supports a Wide-range of Audio/Video Encoding Formats
- Dahua Media Publish System Provides Unified Remote Management and Point-to-Multipoint Monitor Management
- Quad Core Processor for Powerful Decoding Capabilities
| Technical Specification | |
| Display | |
| Viewable Picture Area | 55 in. |
| Mode | Portrait |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Backlight | LCD |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1200:1 |
| Angle of View | Horizontal: 178° Vertical: 178° |
| Response Time | 8 ms |
| Display Colors | 16.7 Million (8 Bit) |
| Interface |
| Inputs | • One (1) RJ45 • One (1) USB 2.0 • One (1) HDMI • One (1) SD |
| External Control | RS232 |
| Wi-Fi | Enabled |
| Audio Output | Two (2) 2 W Speakers |
| Smart Signage Platform | Media Publish System |
| Electrical |
| Power Supply | 100 VAC to 240 VAC (±10%), 50/60 Hz |
| Consumption | Typical: 59.3 W Standby: ≤ 0.5 W |
| Construction/Environmental |
| Dimensions, with pedestal | 2091.80 mm x 790.0 mm 63.60 mm (82.40 in. x 31.10 in. x 2.50 in.) | |
| Dimensions, packaging | Screen | 2125.0 mm x 970.0 mm x 299.0 mm (83.70 in. x 38.20 in. x 11.80 in.) |
| Pedestal | 970.0 mm x 683.0 mm x 354.0 mm (38.20 in. x 26.90 in. x 13.90 in.) | |
| Gross Weight | Screen | 87.50 kg (192.90 lb) |
| Pedestal | 20.90 kg (46.10 lb) | |
| Operating Temperature | –10° C to +55° C (14° F to 131° F) | |
| Operating Humidity | 10% to 90% | |
