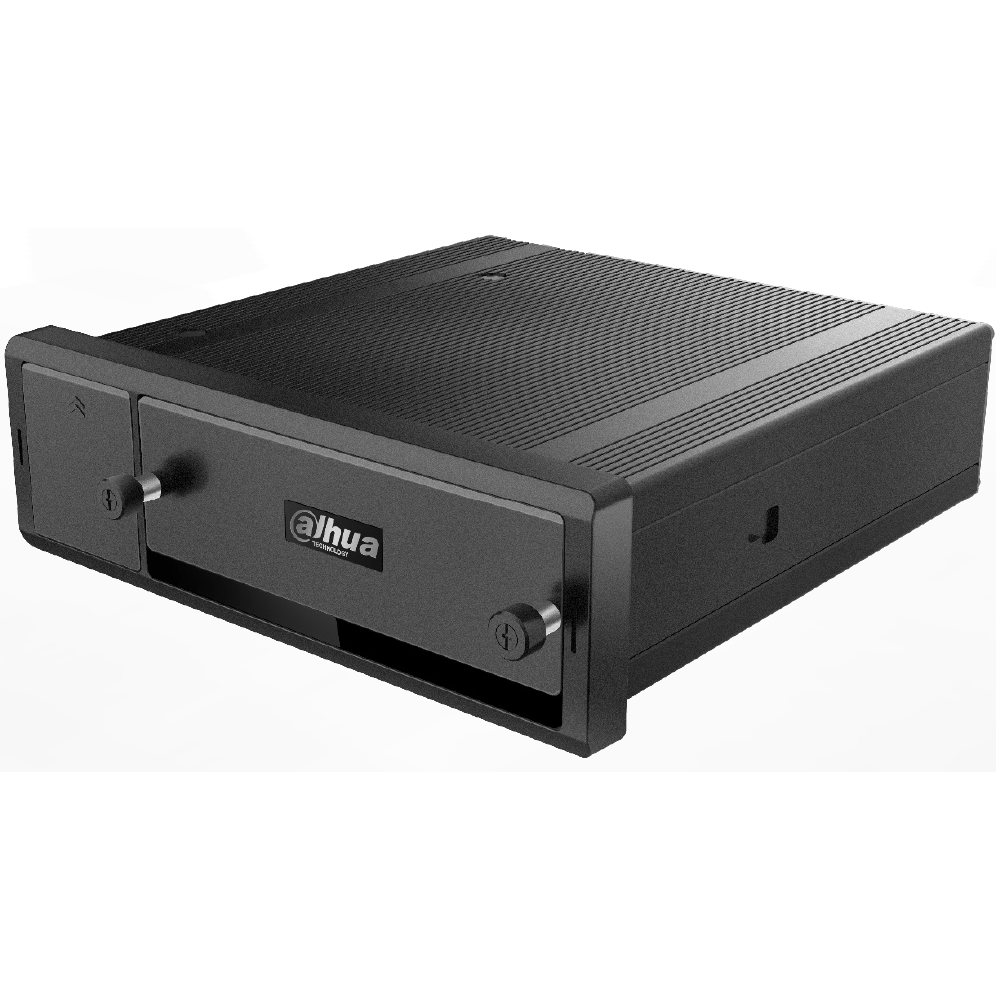

Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution NVR (or MNVR) operates across different transportation networks.The MNVR simultaneously records 4 MP real-time video from eight (8) IP cameras and provides eight (8) simultaneous video output channels.
The MNVR supports real-time vehicle location tracking and monitoring, and can upload the GPS information along with recorded video to a 3G/4G/LTE-FDD/Wi-Fi wireless network. The MNVR is also adaptable, allowing connections to various accessories, including card readers and emergency buttons. Note: 2.5-in. Hard Disk Drives sold separately.
Features :
- Eight-channel IP/PoE Camera Input
- 4 MP Real-time Recording on all Channels
- H.265 Video Compression
- Simultaneous HDMI, VGA, and TV Video Output Channels
- Embedded 3G/4G/LTE-FDD/Wi-Fi and GPS Modules

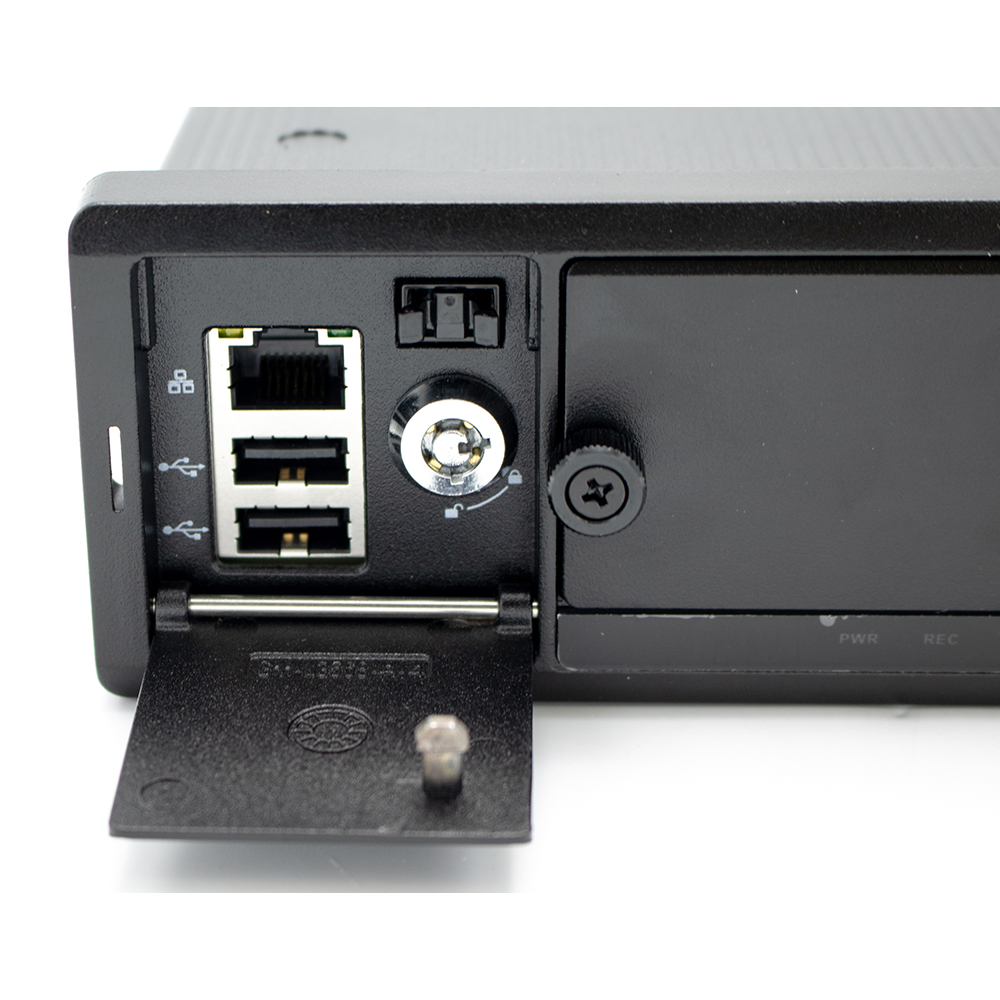

- Two (2) 2.5-in. Hard Disk Drive Ports and (2) USB 2.0 Ports

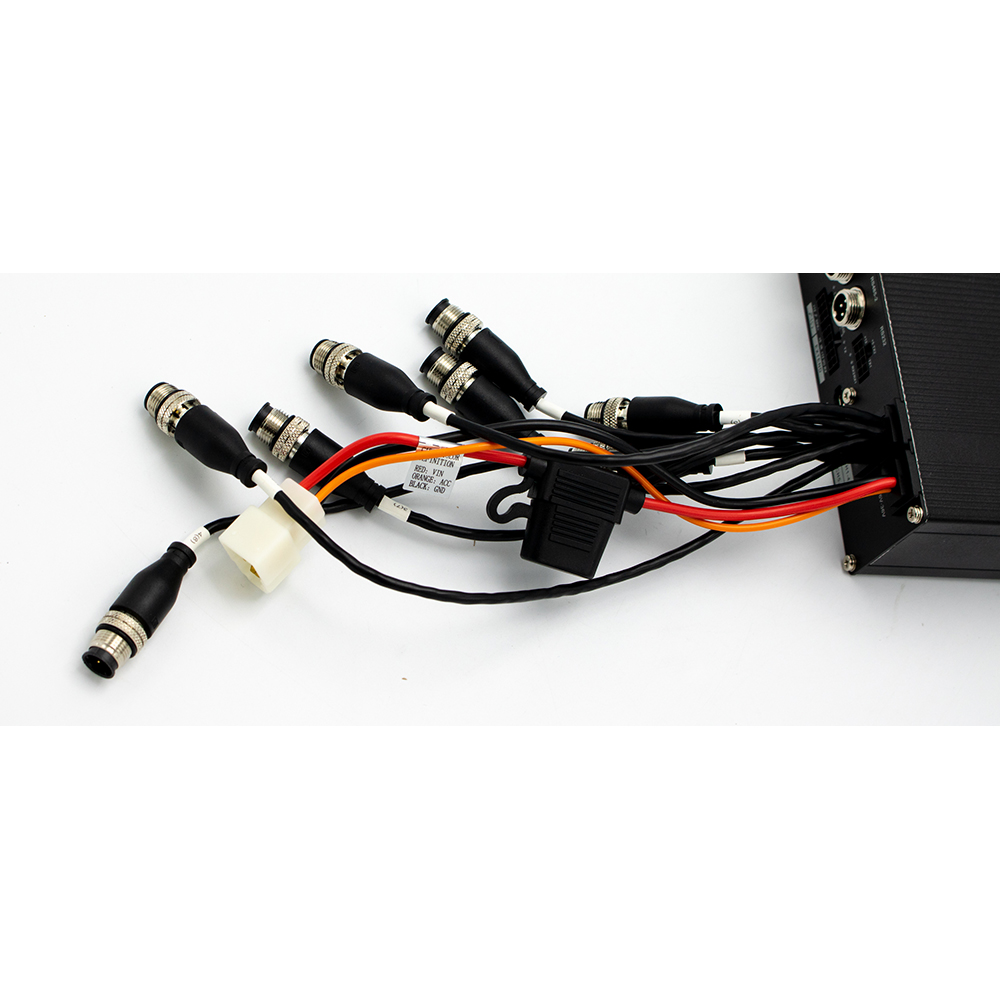

(HDDs sold separately) - Aviation Connectors for Increased Signal Stability
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
System
| Main Processor | Embedded Microprocessor |
| Operating System | Embedded LINUX |
Video and Audio
| IP Camera Input | Eight (8) Channels) |
| Audio | Input: One (1) Channel Input Output: One (1) Channel Output |
Display
| Interface | One (1) HDMI Output Port One (1) VGA Output Port, 10-pin Aviation One (1) A/V Output Port, 4-pin M12 Aviation |
| Resolution | 800 x 600 |
| Display Split | 1/4/8/9 |
| Privacy Masking | Four (4) Rectangular Zones (each camera) |
| On-screen Display | Camera Title, Time, GPS, License Number |
Recording
| Video Compression | H.265 |
| Audio Compression | G.711A, G.711U, PCM |
| Record Rate | Eight (8) Channels at 4 MP Real-time Recording |
| Record Mode | Manual, Schedule (Regular - Continuous, MD, Alarm), Stop |
| Record Intervaly | 1 minute to 120 minutes (default: 60 minutes) Pre-record: 1 s to 30 s Post-record: 10 s to 300 s |
Video Detection and Alarm
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 330 (22 × 15), Video Loss, and, Tampering |
| Alarm Input | Channels 1 to 8: Local Alarm Input Alarm 10 Reserved for Panic Button |
| Relay Output | Two (2) Total Channels, One (1) Relay Output, One (1) Control 12 V Output |
Playback and Backup
| Playback | One (1) Channel |
| Search Mode | Time/Date, Alarm, Motion Detection, and Exact Search (accurate to one second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
Storage
| Internal HDD | Two (2) HDD Ports, up to 2 TB per HDD |
| SD Card | One (1) SD Card Slot, up to 256 GB |
