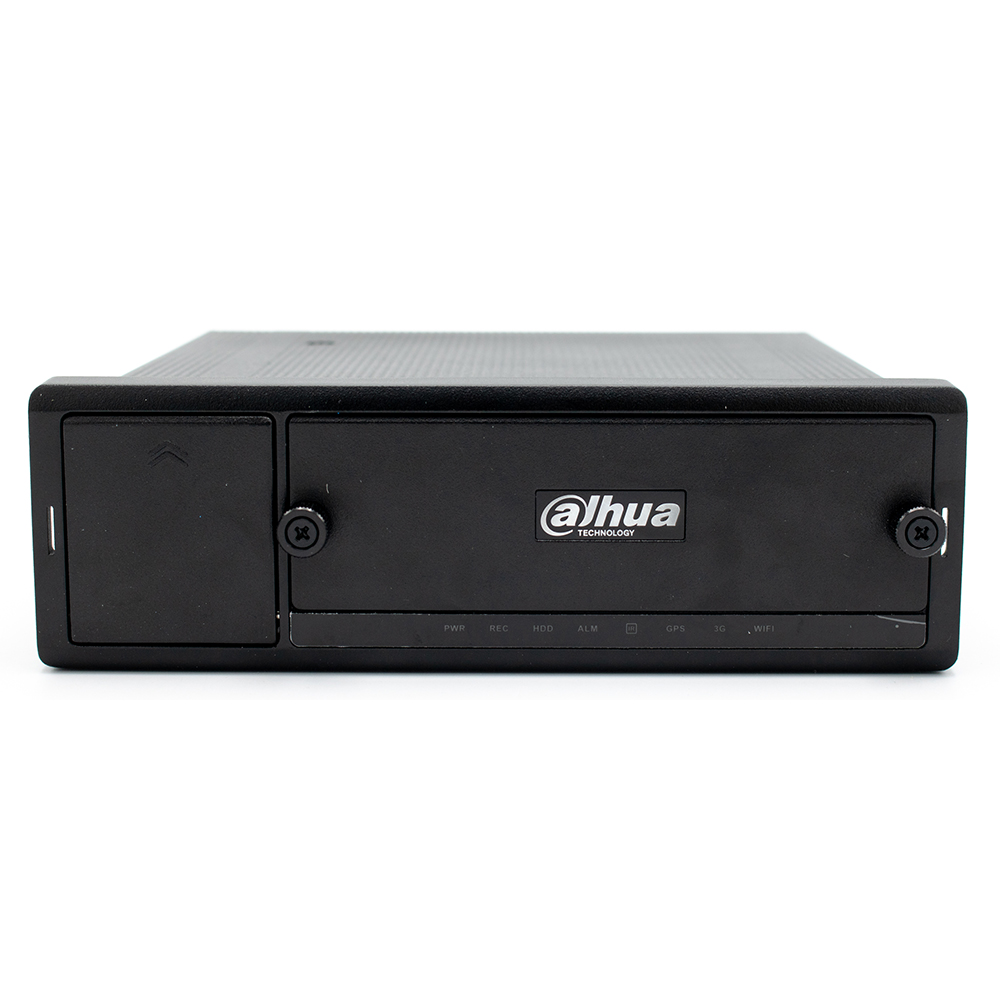

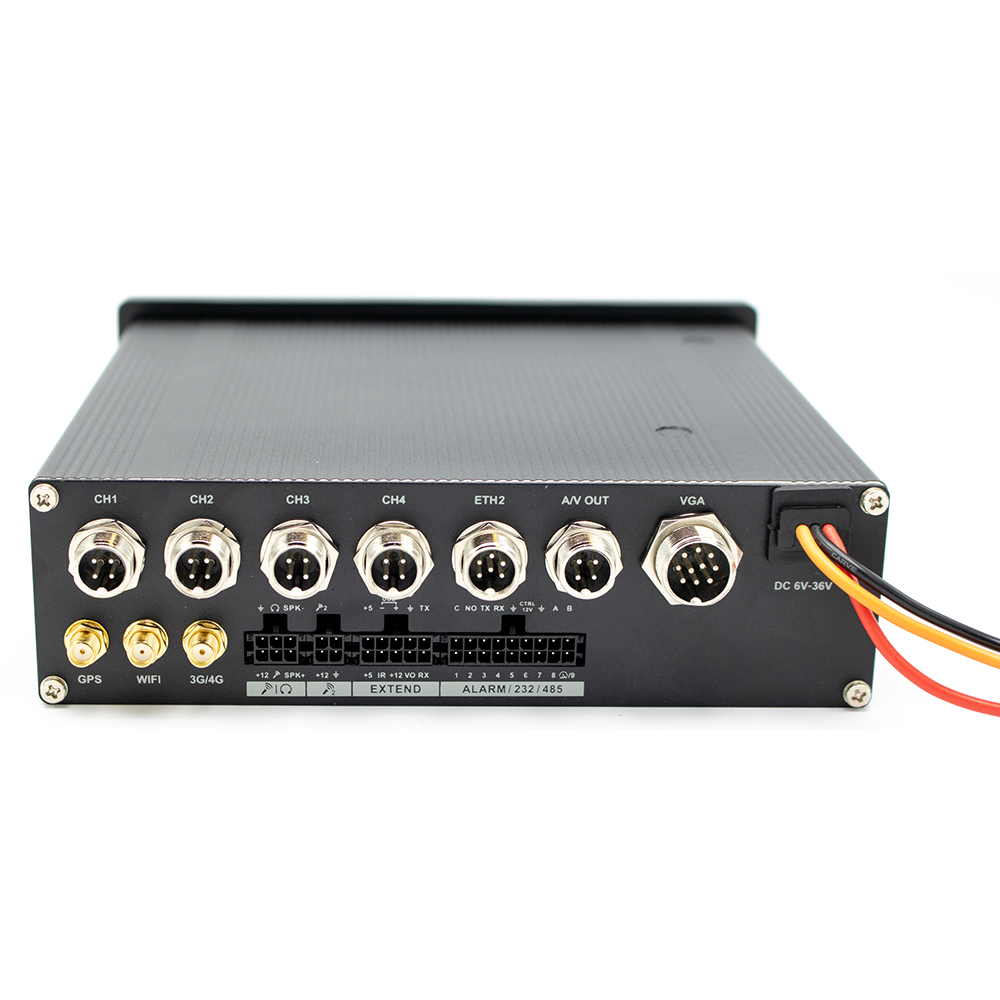

Dahua - MX4104-VM - Four-channel Mobile HDCVI DVR
Part number:
MX4104-VM
Price:
Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution HDCVI DVR (or MXVR) operates across different transportation networks. The MXVR simultaneously records 1080p Full HD real-time video from four (4) analog/HDCVI cameras and provides two (2) simultaneous video output channels.
Features:
- Four-channel 1080p Real-time Recording
- Multi-format Video Input: HDCVI, AHD, TVI, CVBS
- H.265 and H.264 Dual Codec Video Compression
- Simultaneous VGA and TV Video Output Channels
- Embedded 3G/4G/LTE-FDD/Wi-Fi and GPS Modules
- One (1) 2.5-in. Hard Disk Drive Port and one (1) SD Card Slot
(HDD sold separately) - Aviation Connectors for Increased Signal Stability
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
System
| Main Processor | Embedded Microprocessor |
| Operating System | Embedded LINUX |
Video and Audio
| Video | Input: Four (4) Channels, HDCVI, AHD¹, TVI¹, CVBS Supported Resolution: HDCVI, AHD, TVI, CVBS, Cameras: up to 1080p Connections: Four (4) Channels, M12 A-coded 4-pin Connectors |
| Audio, Two-way Talk | Input: One (1) Channel Input Output: One (1) Channel Output |
Display
| Interface | One (1) VGA Output Port One (1) TV Output Port |
| Resolution | 1800 x 600 |
| Display Split | 1/4/8/9 |
| Privacy Masking | Four (4) Rectangular Zones (each camera) |
| On-screen Display | Camera Title, Time, GPS |
Recording
| Video Compression | H.265, H.264 |
| Audio Compression | G.711A, G.711U, PCM |
| Record Rate | Four (4) Channels at 1080p Real-time Recording |
| Bit Rate | 48 Kbps to 8192 Kbps |
| Record Mode | Manual, Schedule (Regular - Continuous, MD, Alarm), Stop |
| Record Interval | 1 minute to 120 minutes (default: 60 minutes) Pre-record: 1 s to 30 s Post-record: 10 s to 300 s |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
