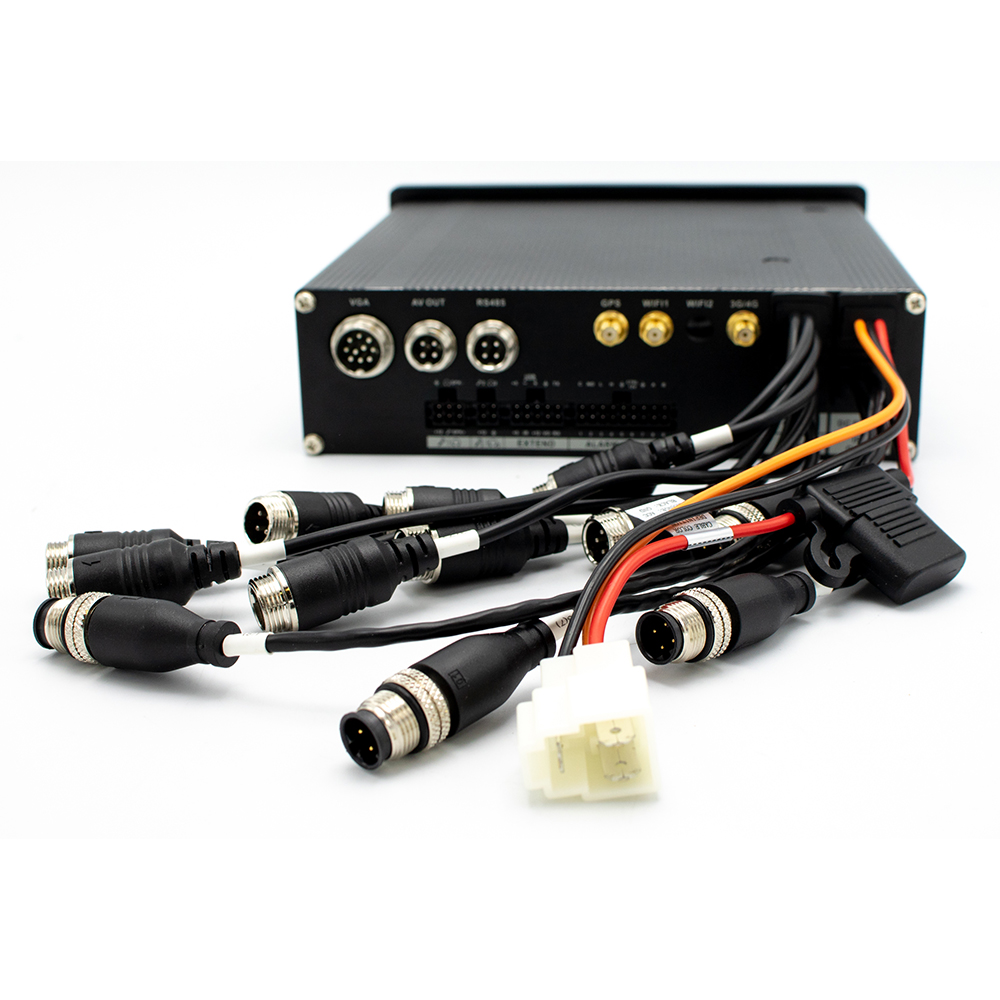

Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution HDCVI DVR (or MXVR) operates across different transportation networks. The MXVR simultaneously records 1080p Full HD real-time video from eight (8) analog/HDCVI cameras and provides two (2) simultaneous video output channels.
Features :
- Eight-channel 1080p Real-time Recording
- 8 + 4 IP Camera Channels, each channel up to 2 MP
- Dual-stream Recording
- Penta-brid Video Input: HDCVI, AHD, TVI, CVBS, IP
- H.264 Video Compression
- Simultaneous VGA and TV Video Output Channels
- Embedded 3G/4G/LTE-FDD/Wi-Fi and GPS Modules
- Two (2) 2.5-in. Hard Disk Drive Ports and one (1) SD Card Slot
(HDDs sold separately) - Aviation Connectors for Increased Signal Stability
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
System
| Main Processor | Embedded Microprocessor |
| Operating System | Embedded LINUX |
Video and Audio
| Video | Input: Eight (8) Channels, HDCVI, AHD, TVI, CVBS; plus, Four (4) IP Channels, up to 2 MP per input Supported Resolution: Analog Cameras: 525 Lines, HDCVI Cameras: 1080p iP Cameras: 1080p Connections: Eight (8) Channels, M12 A-coded 4-pin Connectors, Four (4) M12 D-coded Connectors (for IP cameras) |
| Audio, Two-way Talk | One (1) Channel Input One (1) Channel Output |
Display
| Interface | One (1) VGA Output Port One (1) TV Output Port |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600 |
| Display Split | 1/4/8/9/12 |
| Privacy Masking | Four (4) Rectangular Zones (each camera) |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
Recording
| Video Compression | H.264 |
| Audio Compression | G.711 |
| Record Rate | Main Stream: 12 Channels of 1080p at 30 fps Sub Stream: D1 and CIF at 30 fps |
| Bit Rate | 48 Kbps to 8192 Kbps |
| Record Mode | Manual, Schedule (Regular - Continuous, MD, Alarm), Stop |
| Record Interval | 1 minute to 120 minutes (default: 60 minutes) Pre-record: 1 s to 30 s Post-record: 10 s to 300 s |
Video Detection and Alarm
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 330 (22 × 15), Video Loss, and, Tampering |
| Alarm Input | Nine (9) Channels: Channels 1 to 7: Local Alarm Channels 8 to 9: Pulse Input |
| Relay Output | Two (2) Total Channels, One (1) Relay Output, One (1) Control 12V Output |
Playback and Backup
| Playback | Four (4) Channels |
| Search Mode | Time/Date, Alarm, Motion Detection, and Exact Search (accurate to one second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
