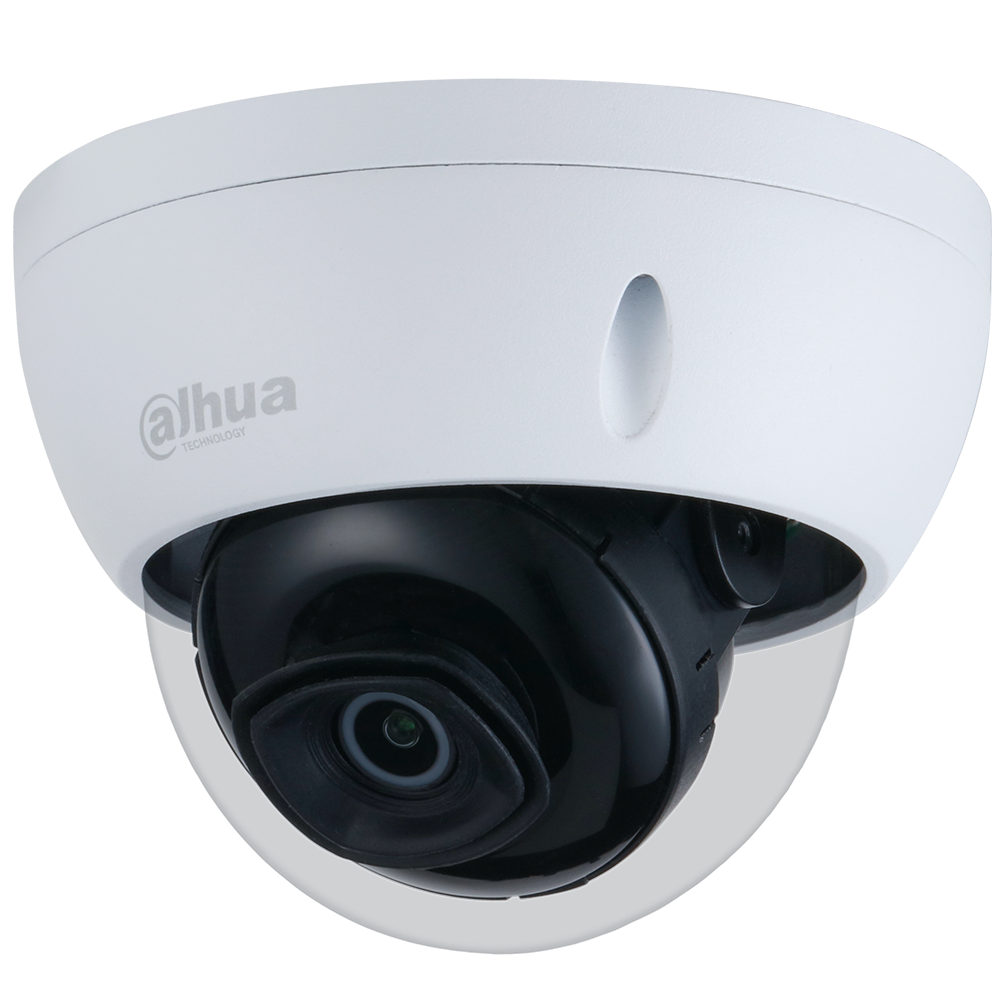

The Dahua Lite Series Network cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
For challenging low-light applications, Dahua’s Enhanced Starlight Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Features:
- 1/2.7-in. 2 MP Progressive-scan CMOS Sensor
- Dual Stream Encoding with Smart H. 265+ and Smart H.264+ Dual Codecs
- 2 MP at 30 fps 30 fps, Maximum Resolution
- Starlight Technology for Low Light Sensitivity
- 2.8 mm Fixed Lens
- Wide Dynamic Range and Day/Night (ICR)
- Maximum IR LED Distance 30 m (98 ft) with Smart IR
- Intelligent Video System
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- PoE Support
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/2.7-in. 2 MP Progressive-scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| RAM/ROM | 128 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color: 0.005 lux at F1.6 0 lux at F1.6 with IR on |
| S/N Ratio | > 56 dB |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Automatic |
| IR LEDs | Three (3) |
Lens
| Lens Type | Fixed | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Maximum Aperture | F1.6 | ||||
| Angle of View | Horizontal | 110° | |||
| Vertical | 59° | ||||
| Diagonal | 132° | ||||
| Focus Control | Fixed | ||||
| Close Focus Distance | 0.60 m (1.97 ft) | ||||
| DORI¹ Distance | Lens | Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| 2.8 mm | 37.30 m (122.38 ft) | 14.90 m (48.88 ft) | 7.50 m (24.61 ft) | 3.70 m (12.14 ft) | |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B |
| Streaming Capability | Two (2) Streams |
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 1080p at 30 fps |
| Sub Stream 1: 704 x 480 at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 6144 Kbps H.265: 12 Kbps to 6144 Kbps |
| Day/Night | Auto (ICR) |
| BLC Mode | BLC, HLC, Digital WDR |
Environmental
| Operating Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | 109.90 mm x 81.0 mm (4.33 in. x 3.19 in.) |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.48 kg (1.06 lb) |
