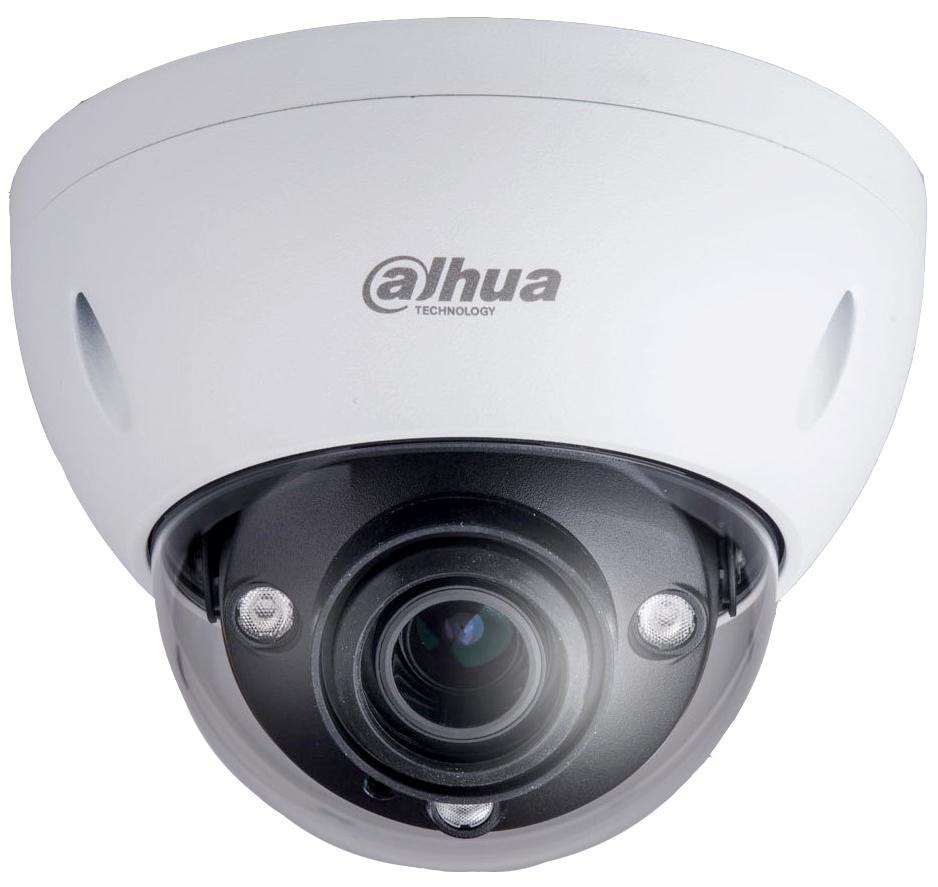

The Dahua 2 MP Ultra Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low-light environments. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Features:
- 1/1.9-in. 2MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and H.264 Dual Codec
- Starlight Technology for Ultra-low Light Sensitivity
- 1080p at 60 fps Maximum Resolution
- 4.1 mm to 16.4 mm Motorized Optical Zoom Lens
- True WDR (120 dB) and True Day/Night (ICR)
- Maximum IR LED Distance 50 m (164 ft)
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System
- Five-year Warranty (for products sold through authorized Dahua Dealers)
Camera
| Image Sensor | 1/1.9-in. 2 MP STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.002 lux at F1.53 (1/3 s, 30 IRE) Color: 0.01 lux at F1.53 (1/30 s, 30 IRE) 0 lux at F1.53 (with IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 50.0 m (164.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Four (4) |
Lens
| Lens Type | Motorized, Auto Iris (HALL) |
| Mount Type | Board-in |
| Focal Length | 4.1 mm to 16.4 mm |
| Max. Aperture | F1.53 |
| Angle of View | Horizontal: 92° to 32° Vertical: 53° to 18° |
| Optical Zoom | 4x |
| Focus Control | Motorized Auto-focus |
| Close Focus Distance | 1.0 m (3.28 ft) |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 1080p at 60 fps |
| Sub Stream: 60 fps | |
| Sub Stream 2: 1080p at 60 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24 Kbps to 10240 Kbps H.265: 14 Kbps to 6144 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Advanced Features | Electronic Image Stabilization (EIS), Smart IR, Defog |
| Digital Zoom | 16x |
| Flip | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Area, Rectangle) |
Network
| Ethernet | RJ-45 (100/1000 Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast, Multicast |
| Max. User Access | 10 Users / 20 Users |
| Edge Storage | NAS (Network Attached Storage) Local PC for Instant Recording Micro SD Card, maximum 128 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
