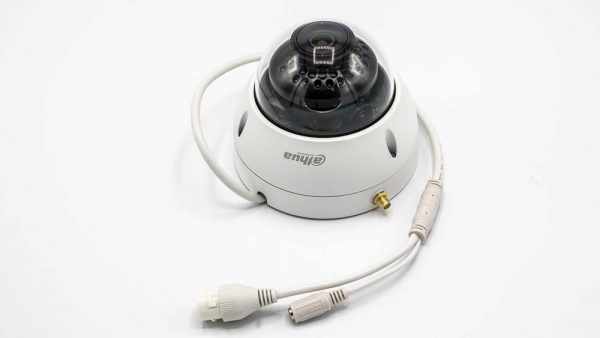

Dahua - N41BL12-W - 4MP IR WiFi 2.8 mm Mini Dome
Part number:
N41BL12-W
Price:
The Dahua N41BL12-W camera offers high-resolution video and WiFi connectivity in a compact and accessible package. The camera features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Features:
- 1/3-in. 4 MP Progressive-scan CMOS Sensor
- 2.4 GHz WiFi (IEEE802.11a/b/g/n/ac)
- Smart H.265+ and Smart H.264+ Dual Codec
- Dual-stream Encoding
- 4 MP at 20 fps
- 2.8 mm Fixed Lens
- True Day/Night (ICR)
- Maximum IR Distance 30 m (98 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Image Sensor | 1/3-in. 4 MP Progressive-scan CMOS |
| Effective Pixels | 2688 (H) x 1520 (V) |
| RAM/ROM | 512 MB / 32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1 s to ~1/100,000 s |
| Minimum Illumination | Color: 0.53 lux at F2.0 (1 s, 30 IRE) 0 Lux at F2.0 (IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 30 m (98.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | 24 |
Lens
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Maximum Aperture | F2.0 |
| Angle of View | Horizontal: 106° Vertical: 56° Diagonal: 127° |
| Focus Contro | Fixed |
Name
Description
Size
Downloads
File
Data Sheet
0.9mb
File
Specification
0mb
