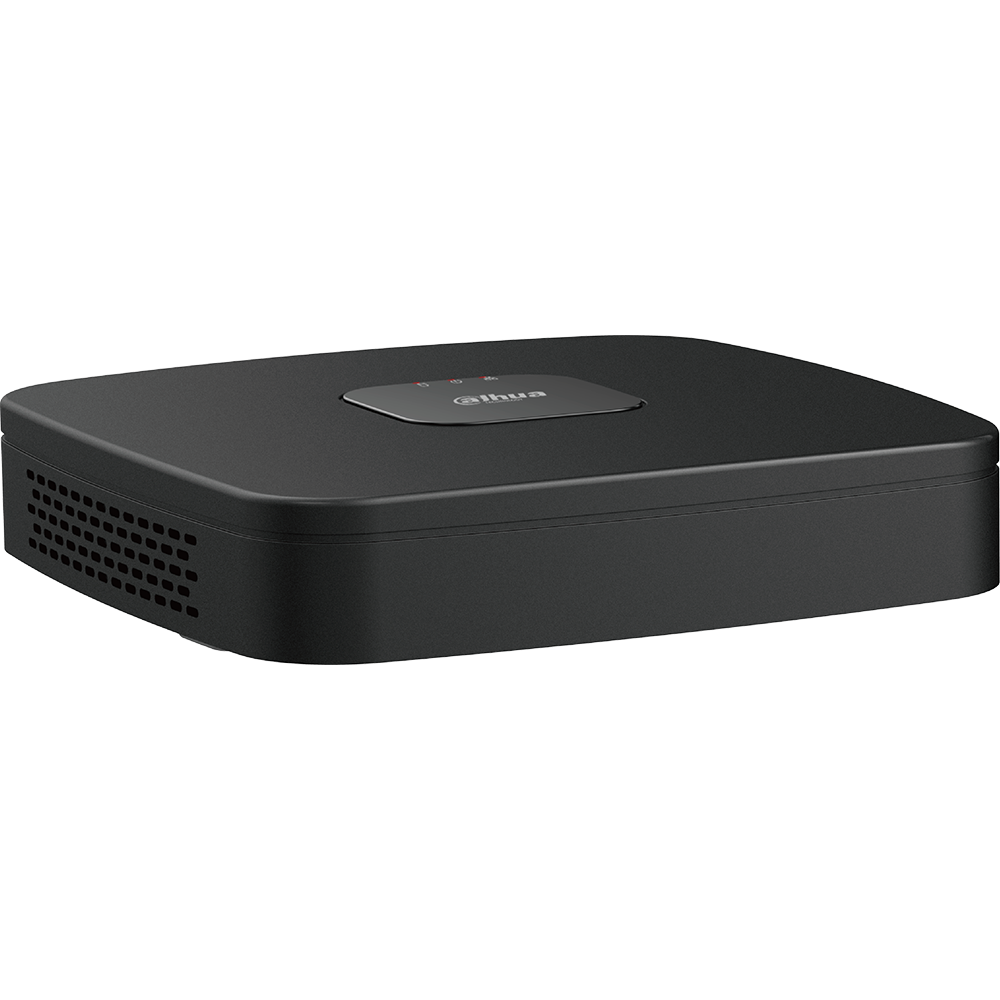

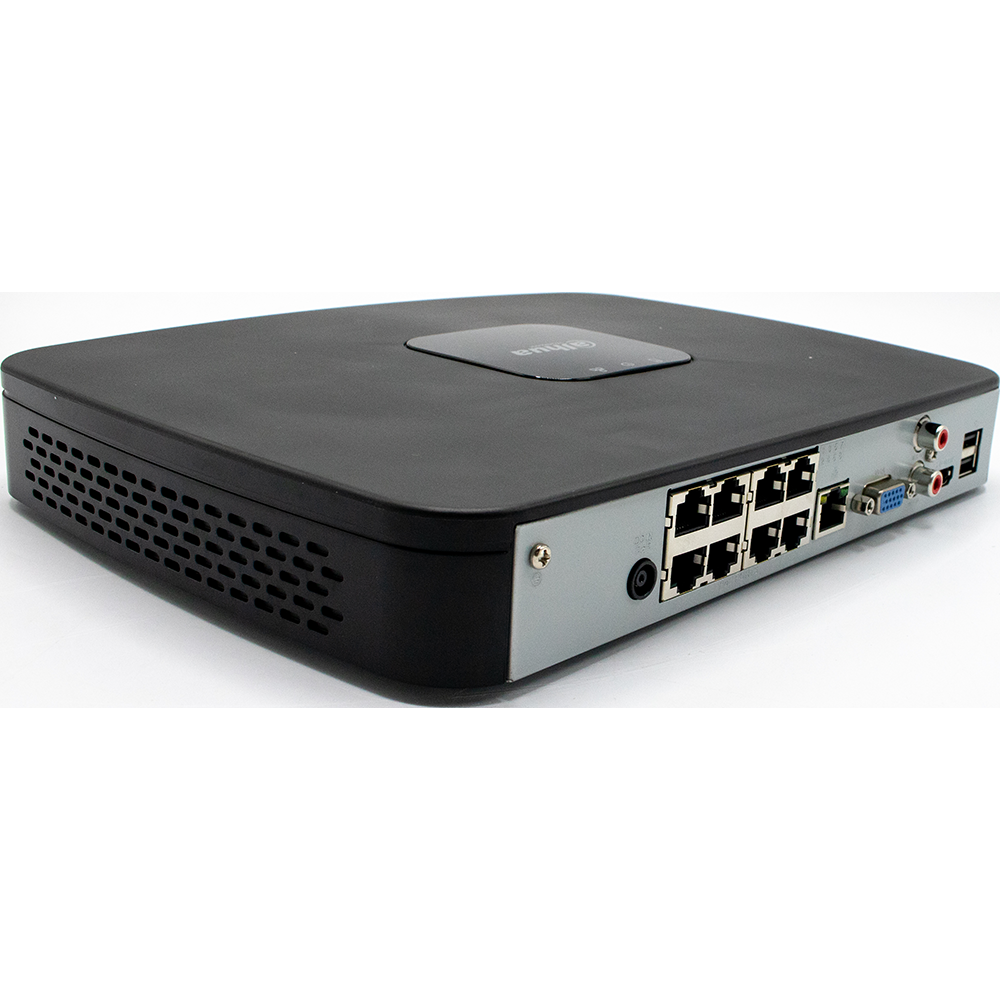

Dahua - N41C2P2 - NVR 8CH POE 4K 1SATA 2TB
Part number:
N41C2P2
Price:

Dahua’s Lite Series network video recorders offer excellent performance and high recording quality for network video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage.


Designed as a cost-effective and easy to install recorder, this NVR is an ideal addition to any security system that monitors public spaces, water conservancy, transportation, city centers, schools, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and it is compatible with ONVIF S, T, and G protocols, enabling interoperability when combined with 4K cameras.



Features:

  • Smart H.265+ and Smart H.264+ Dual Codec
  • Maximum 80 Mbps Incoming Bandwidth
  • Up to 8 MP Resolution for Preview and Playback
  • Simultaneous HDMI and VGA Video Output
  • Supports Remote Configuration and Management of Network Cameras
  • Supports P2P Remote Surveillance and DMSS Mobile App
  • Records Analytics+ Data from Edge Cameras
  • Eight (8) PoE/PoE+ Ports
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
System
Main ProcessorIndustrial-grade Embedded Processor
Operating SystemEmbedded Linux
Audio and Video
IP Camera InputEight (8) Channels
AudioInput: One (1) Channel, RCA Output: One (1) Channel, RCA
Analytics+ Recording¹
Perimeter ProtectionChannelsEight (8)
SearchBy channel, time, event type
SMD+ChannelsEight (8)
SearchBy target classification (human or vehicle)
Display
InterfaceOne (1) HDMI
One (1) VGA
Native Output Resolution3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
Maximum DecodingTwo (2) Channel of 8 MP at 30 fps
Four (4) Channels of 4 MP at 30 fps
Eight (8) Channels of 2 MP at 30 fps
Multi-screen Display1/4/8/9
On-screen DisplayCamera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Recording
Video CompressionSmart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio CompressionPCM, G.711A, G.711Mu, G.726
Supported IP Camera Resolution8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1
Maximum Recording Bandwidth80 Mbps
Record ModeManual Recording; Alarm Recording; SMD Recording; Smart Recording
Video Detection and Alarm
General AlarmsMotion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly  AlarmsCamera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Analytics+ AlarmsFace detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm ActionsRecording, snapshot, audio, buzzer, log, preset,
and email
Playback and Backup
Sync Playback1/4/8
Search ModeTime/Date, Alarm, MD and Exact Search (accurate to one second), Smart Search
Playback FunctionPlay, Pause, Stop, Rewind, Fast Play, Slow Play, Reverse, By Frame, Full Screen, Backup Selection (video clip or file), Partial Zoom, Audio On/Off
Backup ModeUSB Device, Network
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others
Network
EthernetOne (1) RJ-45 Port (10/100 Mbps), Self-adaptive
PoEEight (8) Ports (IEEE802.3af/at)
Network FunctionHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP;
Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS); P2P; Auto register
Maximum User Access128
Mobile Operating SystemIOS, Android
BrowserChrome, IE 9 or later
InteroperabilityONVIF Profiles S,T,G; CGI, SDK
Storage
Internal HDDOne (1) SATA III Port,
Up to 10 TB capacity per HDD
HDD ModeSingle

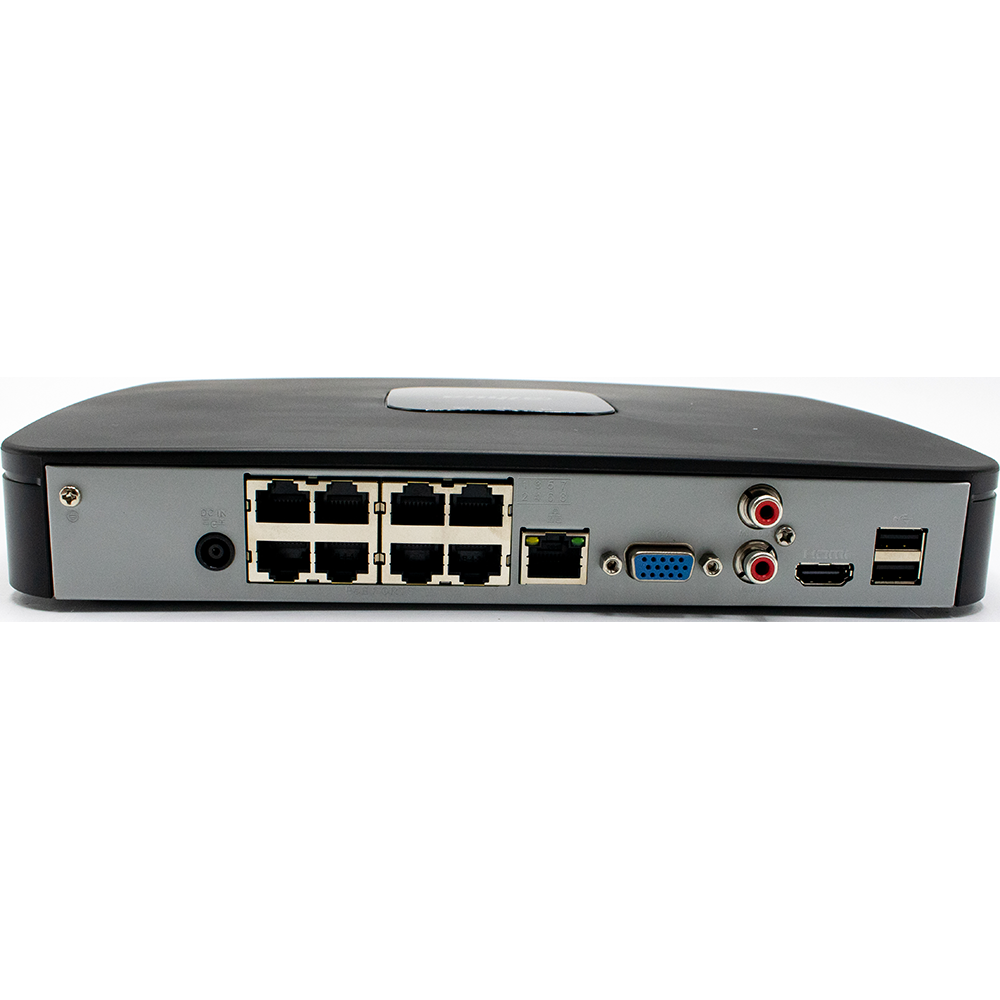

Auxiliary Interface
USBTwo (2) USB 2.0 Ports (rear panel)
Electrical
Power Supply53 VDC, 1.36 A
NVR Power Consumption< 10 W, without HDD
Total PoE Budget25.5 W single port, 72 W total
Environmental
Operating Conditions–10° C to +50° C (+14° F to +122° F), 10% to 93% RH
Storage Conditions0° C to +40° C (32° F to 104° F), 30% to 85% RH
Construction
Dimensions (W x L x H)270.0 mm x 206.50 mm x 47.50 mm
(10.63 in. x 8.12 in. x 1.80 in.)
Net Weight0.70 kg (1.54 lb), without HDD
Gross Weight1.80 kg (3.97 lb), without HDD
Certifications
SafetyEN62368-1 UL 62368-1
CAN/CSA C22.2 No.62368-1-14
Electromagnetic Compatibility (EMC)CFR 47 FCC Part 15 Subpart B
EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4
Ordering Information
TypePart NumberDescription
Eight-channel NVRN41C2P8-channel Smart 1U 8 PoE 4K, No HDD
Network Video Recorder
N41C2P28-channel Smart 1U 8 PoE 4K, 2 TB HDD
Network Video Recorder
N41C2P48-channel Smart 1U 8 PoE 4K, 4 TB HDD
Network Video Recorder
N41C2P68-channel Smart 1U 8 PoE 4K, 6 TB HDD
Network Video Recorder
