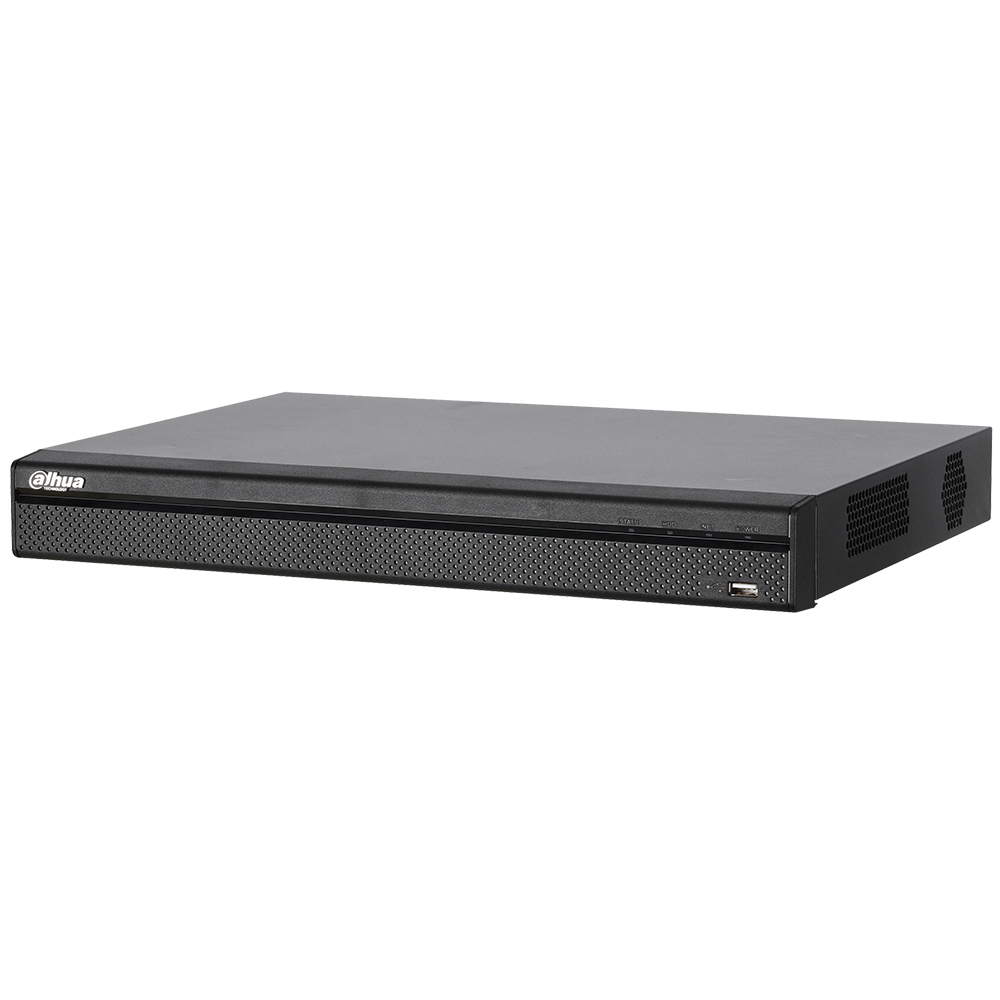

Dahua - N42B2P1 - 4K 8CH 1U NVR 1TB
Part number:
N42B2P1
Price:

Dahua’s Lite Series network video recorders offer excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage.



The NVR is compatible with numerous third‐party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi‐ user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.



Features:

  • H.265 and H.264 Video Compression
  • Maximum 200 Mbps Incoming Bandwidth
  • Up to 8 MP Resolution for Preview and Playback
  • Simultaneous HDMI and VGA Video Output
  • Support for IPC and UPnP Protocols
  • 8 PoE Ports
  • Compatible with Dahua Smart Motion Detection Cameras
  • Support for Automatic Network Replenishment (ANR) Technology
System
Main ProcessorEmbedded Quad-core Processor
Operating SystemEmbedded Linux
Audio and Video
IP Camera InputEight (8) Channels
Two-way TalkInput: One (1) Channel, RCA
Output: One (1) Channel, RCA
Display
InterfaceOne (1) HDMI
One (1) VGA
Native Output Resolution3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Maximum DecodingTwo (2) Channels of 4K/6 MP at 30 fps
Three (3) Channels of 5 MP at 30 fps
Four (4) Channels of 4 MP/3 MP at 30 fps
Four (4) Channels of 1080p at 60 fps
Eight (8) Channels of 1080p at 30 fps
Multi-screen Display1/4/8/9
On-screen DisplayCamera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Quick Installation Guide
0.4mb
File
A&E Specification
0mb
