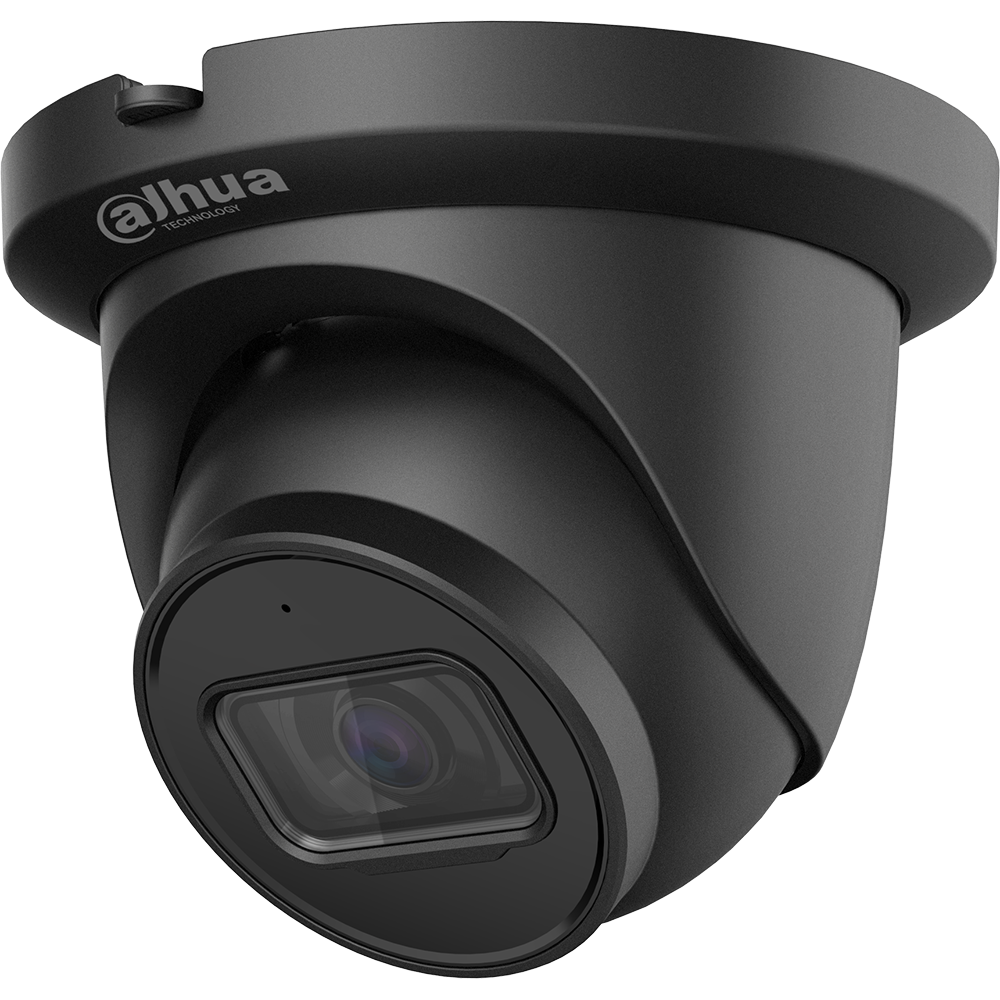

1/3-in. 4MP CMOS, WDR(120dB), H.265/H.264, 20fps@4MP, 2.8mm/F1.6 Fixed lens, IR Distance 98.43ft, IP67, Basic Starlight, Lite Series
The Dahua 4MP Lite Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Features :
- 1/3-in. 4MP Progressive-scan CMOS Sensor
- Dual Stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codecs
- 4MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
- Starlight Technology for Low Light Sensitivity
- True WDR (120 dB) and Day/Night (ICR)
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- Built-in Microphone
- Intelligent Video System
- ArcticPro Series Camera – Operational down to –40° C (–40°)
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 128 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color: 0.008 lux at F1.6 0 lux at F1.6 with IR on |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Two (2) |
Lens
| Lens Type | Fixed-focal | ||||
| Iris Type | Fixed Aperture | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Maximum Aperture | F1.6 | ||||
| Field of View | Horizontal: 102.0° Vertical: 55.0° Diagonal: 121.1° | ||||
| Close Focus Distance | 0.90 m (2.95 ft) | ||||
| DORI² Distance | Lens | Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| 2.8 mm | 56.0 m (183.73 ft) | 22.40 m (73.49 ft) | 11.20 m (36.75 ft) | 5.60 m (18.37 ft) | |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF (Profile S, G, T), CGI, P2P, Milestone, Genetec |
| Auto Register | Support |
| Streaming Method | Unicast, Multicast |
| Max. User Access | 20 |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP Micro SD Card slot (maximum 256 GB) |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangle) |
| Region of Interest | Off, On (4 Zones) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Image Rotation | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangle) |
