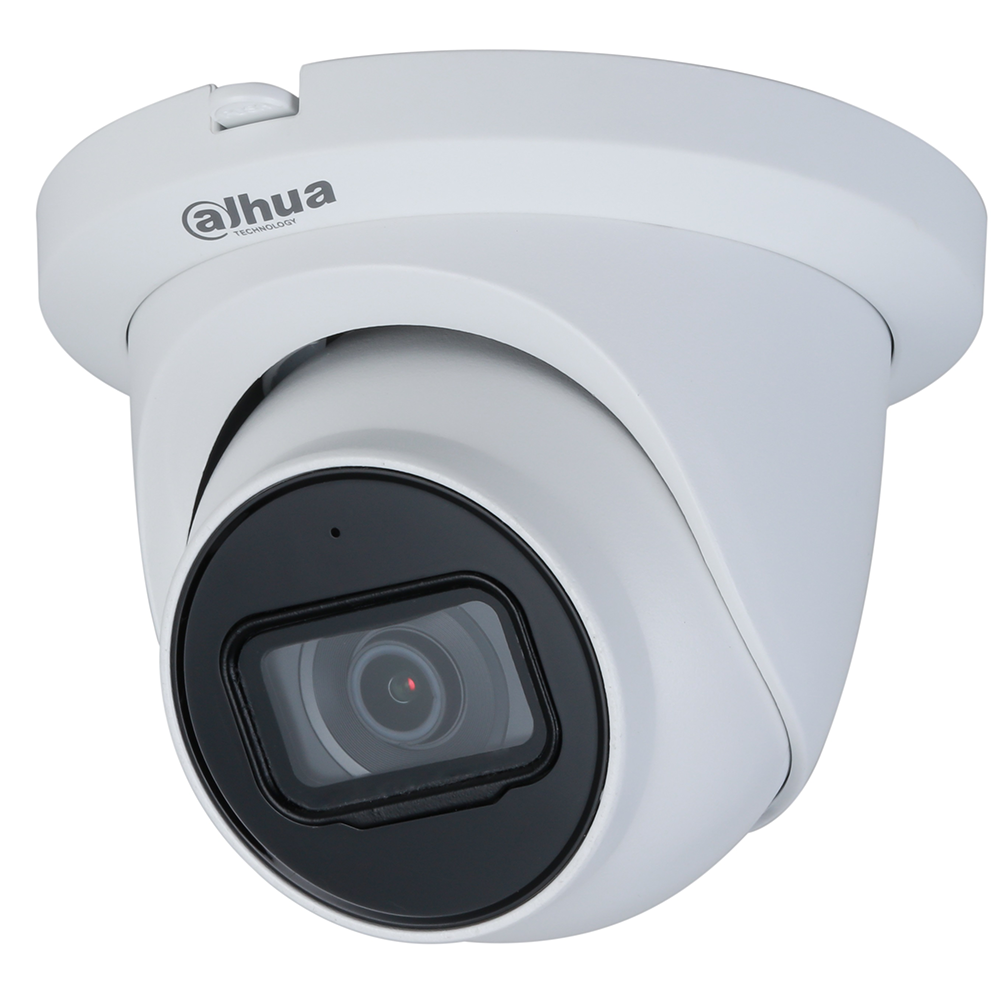

The Dahua 4 MP Lite Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Features:
- 1/3-in. 4 MP Progressive-scan CMOS Sensor
- Dual Stream Encoding
- Smart H. 265+ and Smart H.264+ Dual Codecs
- 4 MP at 20 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Starlight Technology for Low Light Sensitivity
- True WDR (120 dB) and Day/Night (ICR)
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- Built-in Microphone
- Intelligent Video System
- ArcticPro Series Camera – Operational down to –40°
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Image Sensor | 1/3-in. 4 MP Progressive-scan CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 128 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | d Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color: 0.008 lux at F1.6 0 lux at F1.6 with IR on |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Two (2) |
Lens
| Lens Type | Fixed-focal |
| Iris Type | Fixed Aperture |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal: 102.0° Vertical: 55.0° Diagonal: 121.1° |
| Close Focus Distance | 0.90 m (2.95 ft) |
Pan/Tilt/Rotation
| Range | Pan: 0˚ to 360˚ Tilt: 0˚ to 78˚ Rotation: 0˚ to 360˚ |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG | |
| Streaming Capability | Two (2) Streams | |
| Resolution | 2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream | 2688 x 1520 at 20 fps or 2560 x 1440 at 30 fps |
| Sub Stream | D1 (704 x 480) at 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 32 K to 6144 Kbps H.265: 12 K to 6144 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| Backlight | BLC, HLC, True WDR (120 dB) | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangle) |
| Region of Interest | Off, On (4 Zones) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Image Rotation | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangle) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF (Profile S, G, T), CGI, P2P, Milestone, Genetec |
| Auto Register | Support |
| Streaming Method | Unicast, Multicast |
| Max. User Access | 20 |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP Micro SD Card slot (maximum 256 GB) |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Electrical | |
| Power Supply | 12 VDC ± 30%, or PoE (IEEE802.3af Class 0) |
| Power Consumption | < 6.6 W |
