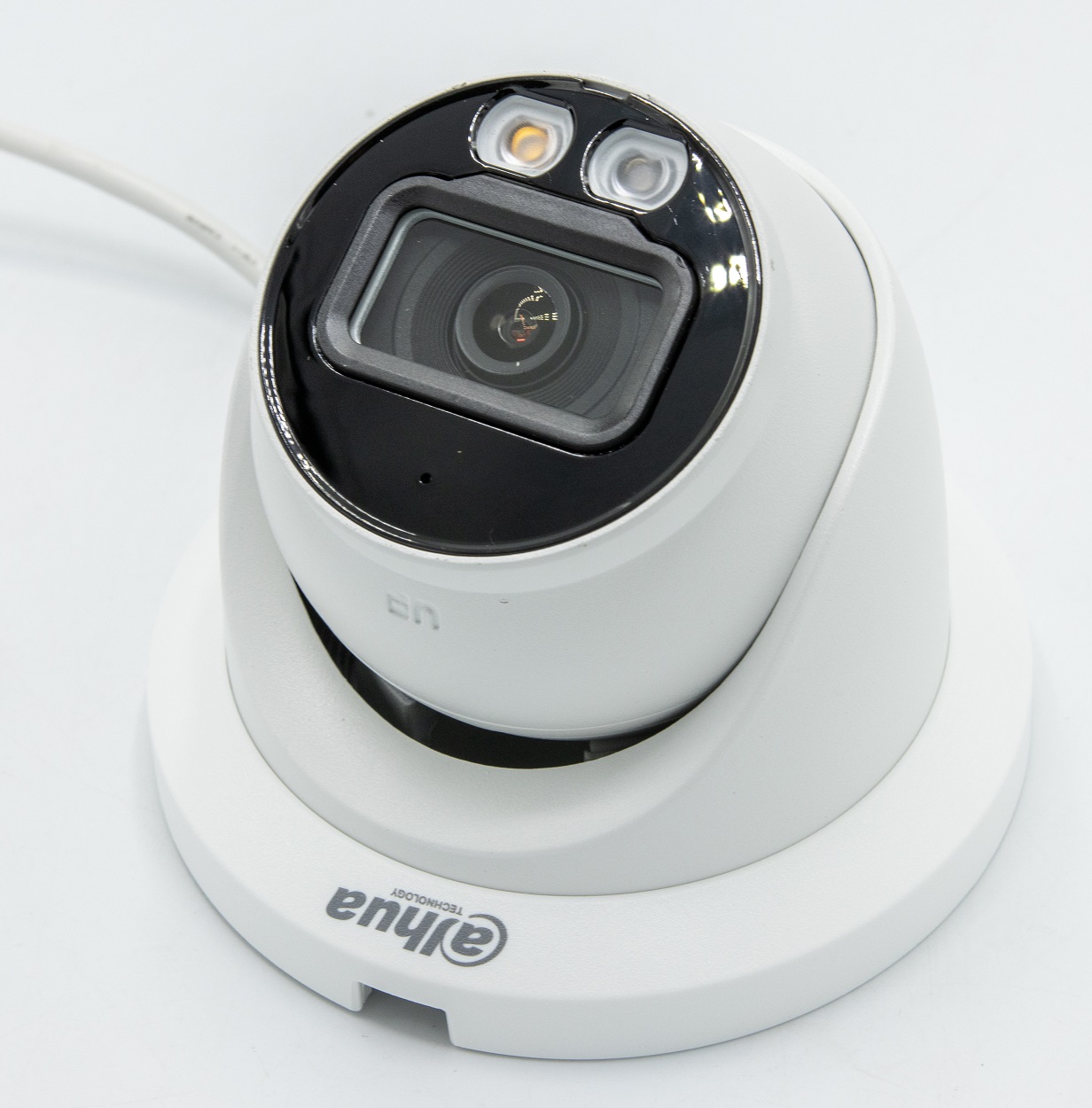

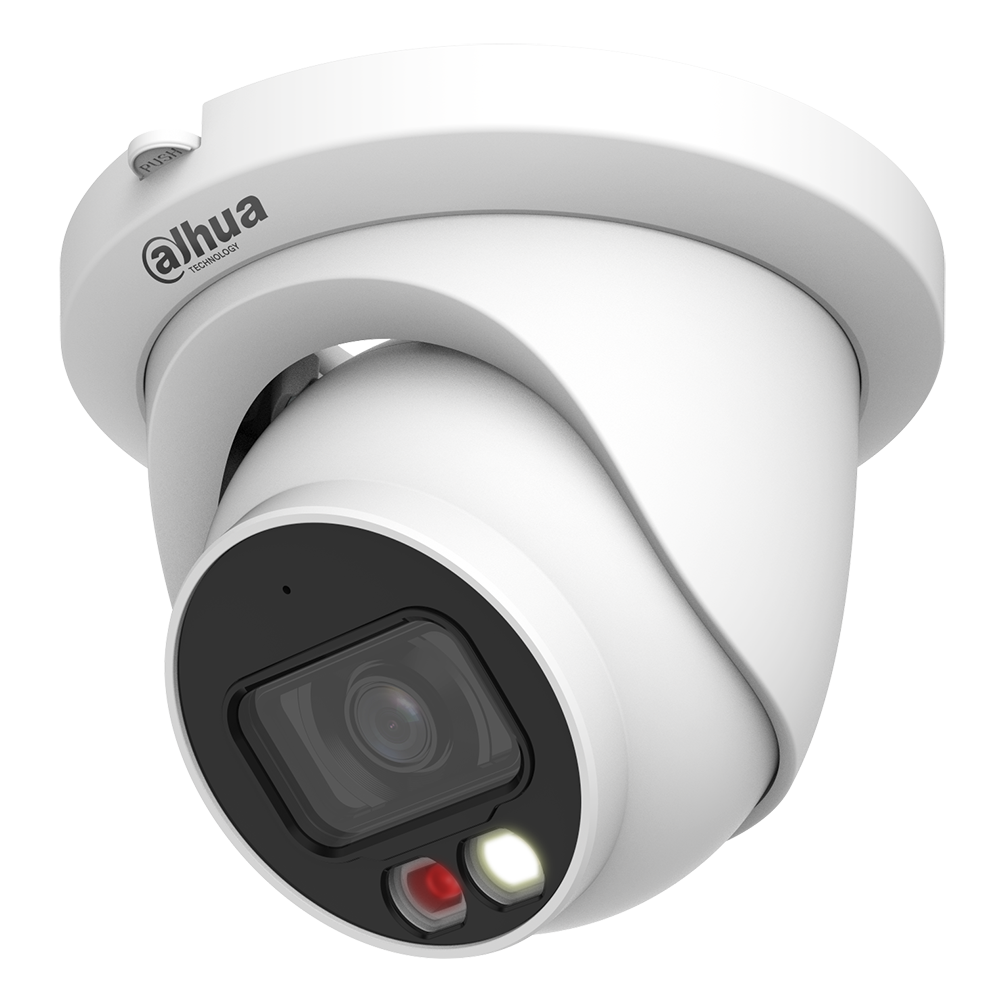

Dahua - N42DJS2 - 4MP VU-MORE, Basic Night Color, Eyeball 2.8mm, Lite Series
The Dahua VU-MORE Color Lite Series camera offers multiple features such as motion detection and Smart Dual Illumination to provide deterrence, overtness, and full-color video. The camera provides increased color viewing at night for a variety of small to mid-size applications at an affordable price.
1/3-in. 4MP CMOS, WDR (120dB), H.265/H.264, 30fps@4MP, 2.8mm/F1.6 Fixed lens, LED Distance 49ft, IR Distance 98ft, Micro SD, Max. 256GB, Built-in Mic, IP67, DC12V, PoE, Smart Dual-illuminators, Perimeter Protection, Smart Motion Detection+
Features:
- 1/3-in. 4MP Progressive-scan CMOS Sensor
- 4MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
- Analytics+ Function – Perimeter Protection and Smart Motion Detection+
- Dual Stream Encoding
- Smart Dual Illumination — IR and White Light
- Smart H.265+ and Smart H.264+ Dual Codecs
- True WDR (120 dB) and Day/Night (ICR)
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- Intelligent Video System
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/3-in. CMOS |
| Effective Pixels | 2688 (H) × 1520 (V), 4MP |
| Scanning System | Progressive |
| RAM/ROM | 128 MB/128 MB |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | 0.008 lux at F1.6 (Color, 30 IRE) 0.0008 lux at F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| IR Distance | 30 m (98.43 ft) (IR), 15 m (49.21 ft) (Warm light) |
| IR On/Off Control | Auto; Manual |
| Illuminators | One (1) IR LED One (1) Warm Light |
Lens
| Lens Type | Fixed-focal | ||||
| Iris Type | Fixed | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Maximum Aperture | F1.6 | ||||
| Angle of View | Horizontal | 95° | |||
| Vertical | 52° | ||||
| Diagonal | 114° | ||||
| Close Focus Distance | 0.9 m (2.95 ft) | ||||
| DORI1 Distance | Detect | O | bserve | Recognize | Identify |
| 63.6 m (208.66 ft) | 2 (8 | 5.4 m 3.33 ft) | 12.7 m (41.67 ft) | 6.4 m (20.99 ft) | |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multcast, ICMP, IGMP |
| Interoperability | ONVIF (Profile S, Profile T), CGI, P2P, Milestone, SDK, API |
| Maximum User Access | 6 (Total bandwidth: 36 M) |
| Edge Storage | FTP, SFTP Micro SD Card Slot (Maximum 256 GB) |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | DSS, DMSS |
| Mobile Operating System | iOS, Android |
| Cyber Security | Configuraton Encrypton, Trusted Executon, Digest, Security Logs, WSSE, Account Lockout, Syslog, Video Encrypton, 802.1x, IP/MAC Filtering, HTTPS, Trusted Upgrade, Trusted Boot, Firmware Encrypton, Generating and Importing X.509 Certifcaton |
Videos
| Compression | Smart H.265+, Smart H.264+, H.264H, H.265, H.264, H.264B, MJPEG (Only supported by the sub stream) | |
| Streaming Capability | Two (2) Streams | |
| Resolution | 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 ×960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) | |
| Frame Rate | Main Stream | 2688 × 1520 at 20 fps |
| Sub Stream | 704 × 480 at 20 fps | |
| Bit Rate | H.264: 32 kbps to 6144 kbps H.265: 12 kbps to 6144 kbps | |
| Bit Rate Control | CBR, VBR | |
| Day/Night | Auto (ICR); Manual | |
| BLC Mode | BLC , HLC, WDR (120 dB) | |
| White Balance | Auto, natural, street lamp, outdoor, manual, regional custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 3DNR | |
| Motion Detection | Off, On (4 Zones, Rectangle) | |
| Region of Interest | Off, On (4 Zones) | |
| Operating Conditions | –40°C to +60°C (–40°F to +140°F), Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 100.9 mm × Φ109.9 mm (3.97 in. × Φ4.33 in.) |
| Net Weight | 0.37 kg (0.82 lb) |
| Gross Weight | 0.51 kg (1.12 lb) |
