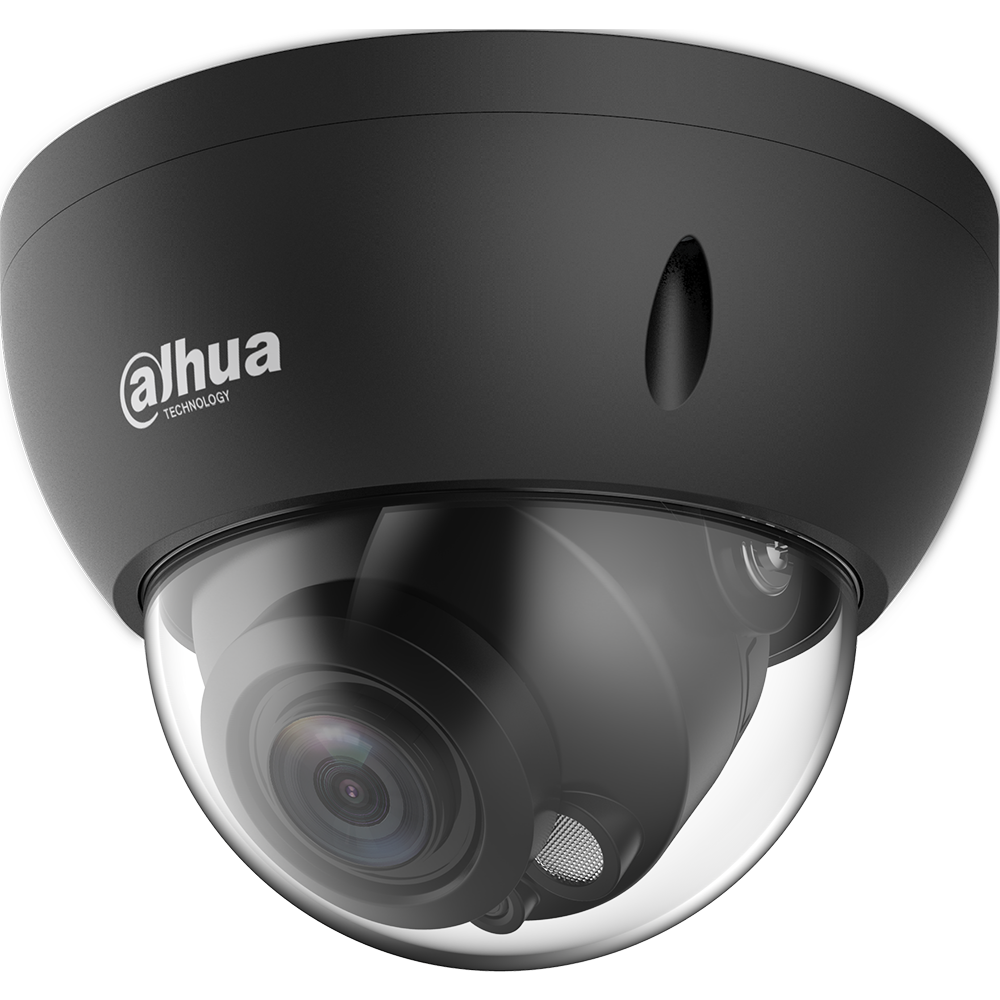

DAHUA - N43AM5Z-B - 4MP STARLIGHT VARI FOCAL NETWORK DOME CAMERA BLACK



Part number:
N43AM5Z-B
Price:

The Dahua 4 MP Starlight camera offers Smart Motion Detection for improved alarm accuracy from intrusion and tripwire functions. The camera is ideal for a host of diverse applications  Starlight, True Wide Dynamic Range, and IR illumination allow the camera to operate in any lighting condition. The camera is rated to the IP67 Ingress Protection and to the IK10 Vandal Resistance standards, allowing the camera to deliver high-quality and reliable video in the harshest environments.



Features:

  • 1/3 in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps
  • 2.7 mm to 13.5 mm Motorized Vari-focal Lens
  • Starlight Technology for Low-light Applications
  • Analytics+ Function – Perimeter Protection and
  • Smart Motion Detection
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Maximum IR LED Distance 40 m (131.23 ft)
  • Enhanced Power and Data Transmission Distances (ePoE)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Camera

Image Sensor1/3-in. 4 MP CMOS
Effective Pixels2688(H) x 1520(V)
RAM/ROM512 MB/128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual, 1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.005 lux at F1.5
0 lux at F1.5 (IR on)
S/N Ratio> 56 dB
IR DistanceUp to 40.0 m (131.23 ft)
IR On/Off ControlAuto, Manual
IR LEDsTwo (2)

Lens

Lens TypeMotorized Vari-focal
Iris TypeFixed Aperture
Mount Type14
Focal Length2.7 mm to 13.5 mm
Maximum ApertureF1.5
Angle of ViewHorizontal: 104° to 27°
Vertical: 55° to 15°
Diagonal: 124° to 31°
Close Focus Distance0.80 m (2.62 ft)
