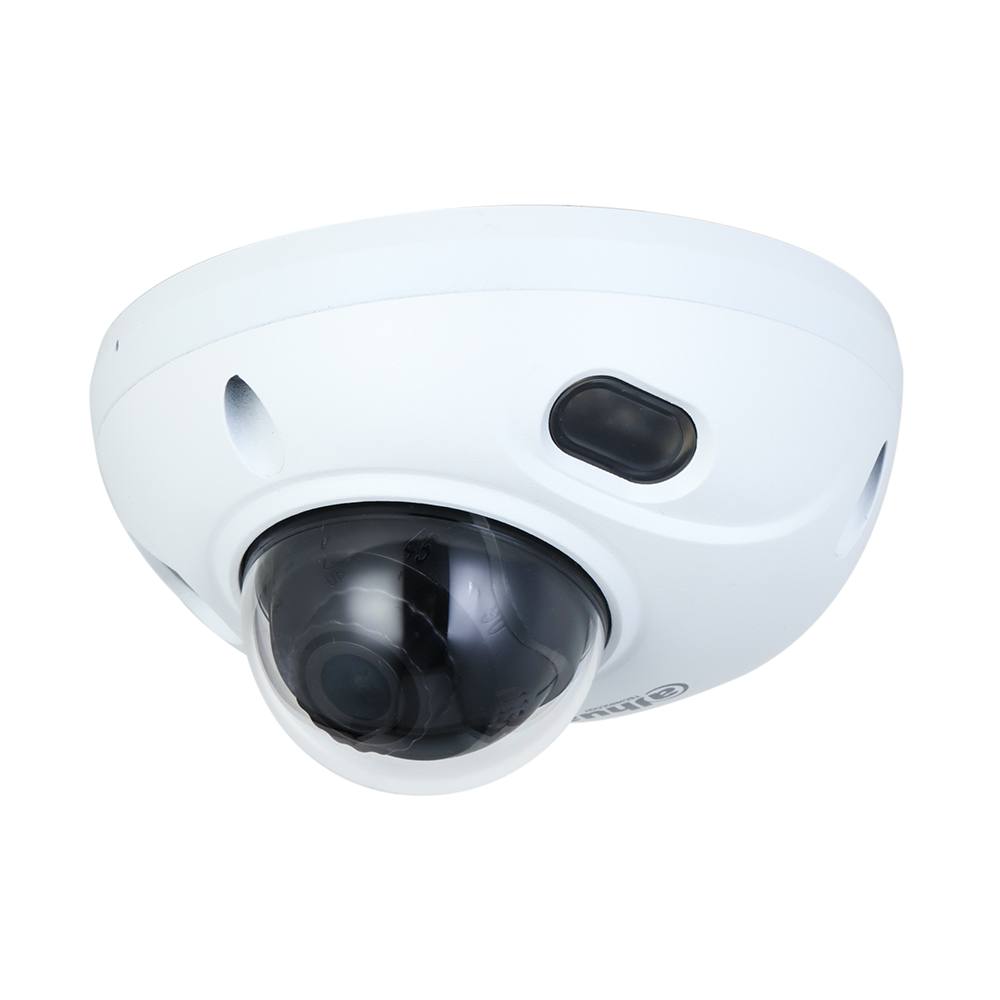

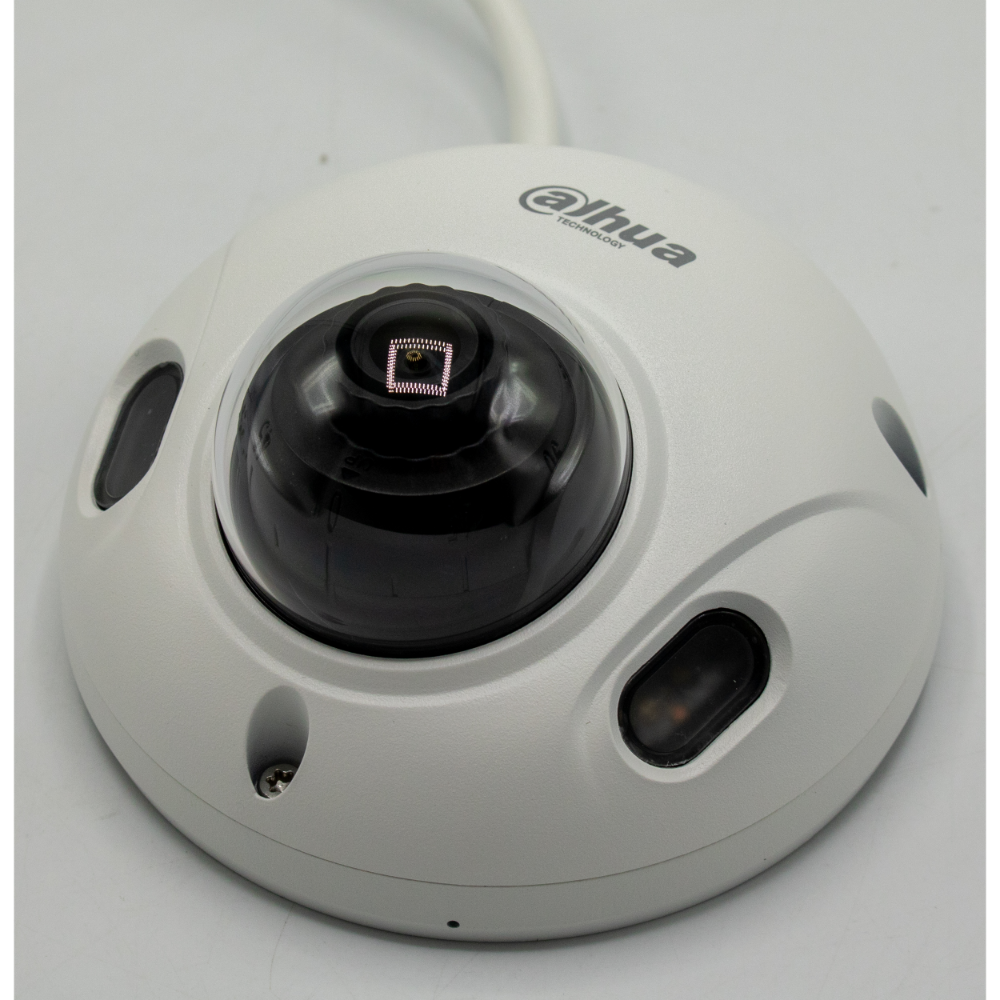

Dahua - N43CN62 - 4MP Enhanced Starlight Network Fixed Wedge Camera
Part number:
N43CN62
Price:
The Dahua 4MP Enhanced Starlight Network Fixed Wedge Camera is ideal for a host of diverse applications. The camera also Enhanced Starlight, True Wide Dynamic Range, and IR illumination to allow the camera to operate in any lighting condition.
Features:
- 1/3 in. 4MP Progress-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+ and Smart H.264+ Dual Codec
- 4MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
- Enhanced Starlight Technology for Low-light Applications
- Analytics+ Function: Perimeter Protection, Smart Motion Detection+
- True Wide Dynamic Range (120 dB), Day/Night IR Cut Filter
- Maximum IR LED Distance of 50 m (164.04 ft)
- Built-in Microphone
- AI Scene Self-adaptation (AI SSA)
- ArcticPro Series Camera – Operational Down to -40 °C (-40 °F)
- Standard PoE
- IP67 Ingress Protection, IK10 Vandal Resistance
- Five-year Warranty*
| Camera |
| Image Sensor | 1/3-in. 4MP CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color (30 IRE): 0.005 lux at F1.4 B/W (30 IRE): 0.0005 lux at F1.4 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| IR Distance | Up to 30 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Two (2) |
| Lens | |||||
| Lens Type | Fixed Focal | ||||
| Iris Type | Fixed Aperture | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Maximum Aperture | F1.4 | ||||
| Angle of View | Horizontal: 107° Vertical: 56° Diagonal: 127° | ||||
| Close Focus Distance | 0.9 m (2.95 ft) | ||||
| DORI Distance1 | Detect | Observe | Recognize | Identify | |
| 63.6 m (208.66 ft) | 25.40 m (83.33 ft) | 12.70 m (41.67 ft) | 6.40 m (21.00 ft) | ||
| Installation Angle | |||||
| Range | Pan: 0° to 355° Tilt: -20˚ to 70˚ Rotation: 0˚ to 355˚ | ||||
| Video | |||||
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) | ||||
| Streaming Capability | Three (3) Streams | ||||
| Resolution | 4MP (2688 x 1520), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | ||||
| Frame Rate2 | Main Stream | 2688 × 1520 at 30 fps | |||
| Sub Stream 1 | 704 × 480 at 30 fps | ||||
| Sub Stream 2 | 1920 × 1080 at 30 fps | ||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.264: 3 Kbps to 8192 Kbps H.265: 3 Kbps to 8192 Kbps | ||||
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA | ||||
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | ||||
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | Off, On (4 Zones, Rectangular) | ||||
| Image Rotation | 0°, 90°, 180°, 270° | ||||
| Mirror | Off, On | ||||
| Privacy Masking | Off, On (4 Areas, Rectangular) | ||||
| Advanced Features | Smart IR, SSA, AFSA, AI SSA, Defog | ||||
| Audio | ||
| Built-in Microphone | Yes | |
| Compression | G.711a, G.711Mu, G.726, PCM, G.723, AAC | |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Interoperability | ONVIF (Profile S, G, T), CGI, P2P, SDK, API |
| Auto Register | Support |
| Streaming Method | Unicast/Multicast |
| Maximum User Access | 20 Users (Max. Bandwidth: 64 Mbps) |
| Edge Storage | Network Attached Storage (NAS), FTP, SFTP, SD Card Slot (Max. 256 GB) |
| Web Viewer | Microsoft Edge, Chrome |
| Management Software | SmartPSS Lite, DSS, DMSS |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Certifications | |
| Safety | UL62368-1 CAN/CSA C22.2 No. 62368-1-14 |
| Electromagnetic Compatibility (EMC) | 47 CFR FCC Part 15, Subpart B |
| Interface |
| Audio | Input | One (1) Channel, RCA |
| Output | One (1) Channel, RCA | |
| Alarm | Input | One (1) Channel (5 mA, 3 to 5 VDC) |
| Output | One (1) Channel (300 mA, 12 VDC) |
| Interface | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) |
| Ingress Protection | IP67 |
| Vandal Protection | IK10 |
Name
Description
Size
Downloads
File
Datasheet
0.6mb

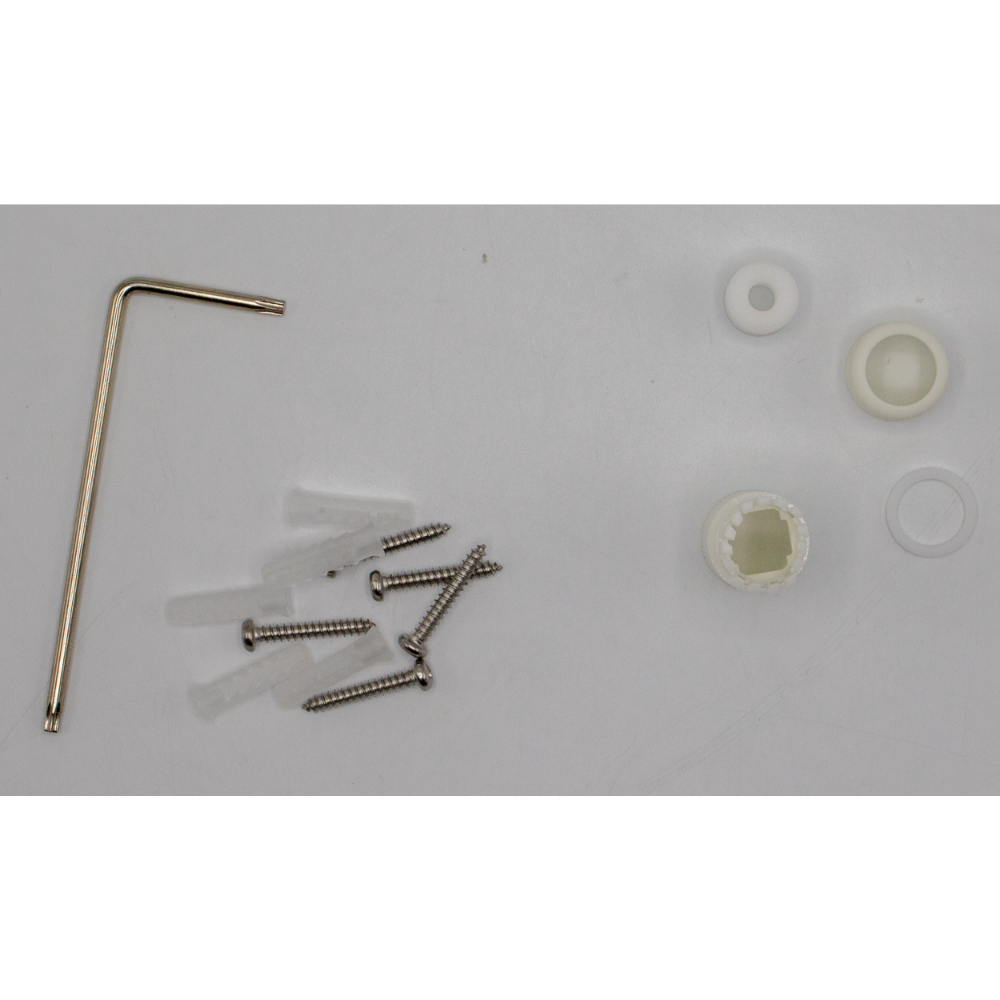

accessories
