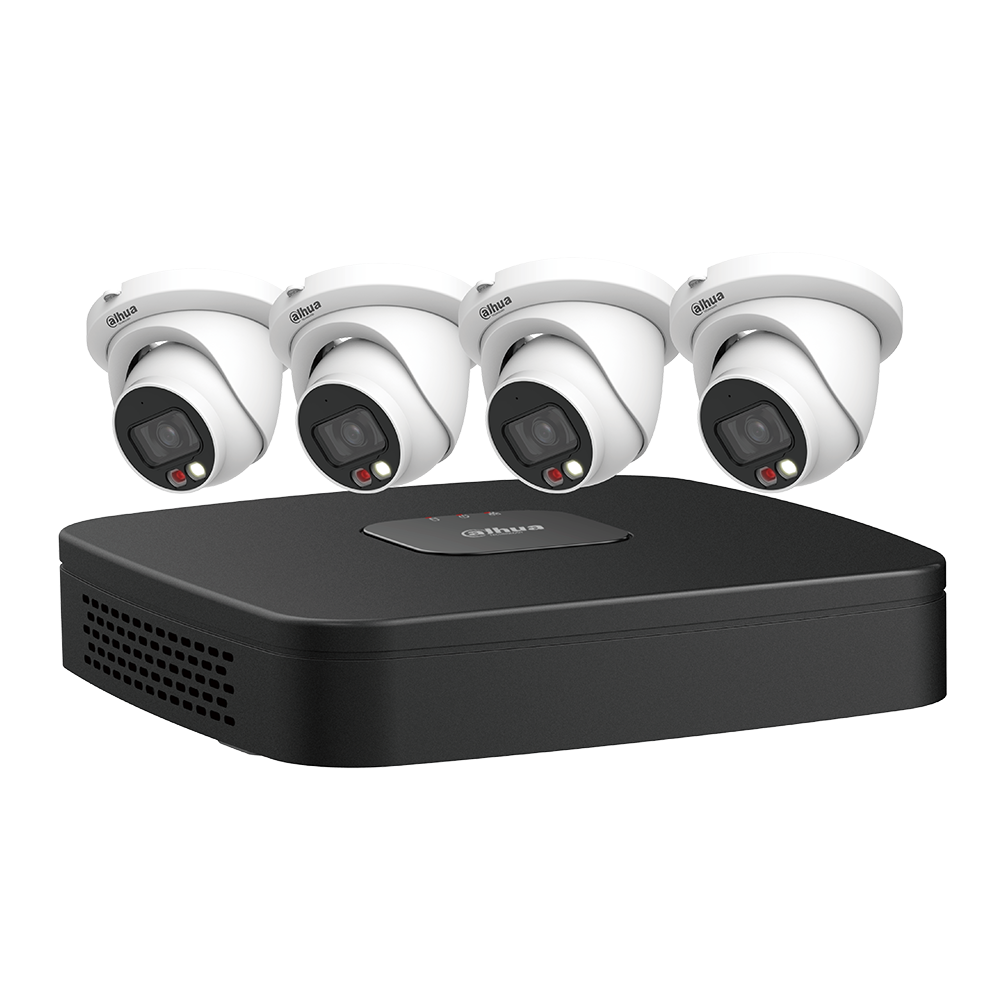

Dahua - N444E42C - IP Kit: 4-CH NVR + 4 x 4MP, VU-MORE Night Color Eyeball Cameras
Part number:
N444E42C
Price:

4-CH NETWORK KIT: 4 x 4MP, VU-MORE Night Color 2.8mm Eyeball Cameras and a 4K Network Recorder, 2TB included The Dahua VU-MORE Color Lite Series camera offers multiple features such as motion detection and Smart Dual Illumination to provide deterrence, overtness, and full-color video. The camera provides increased color viewing at night for a variety of small to mid-size applications at an affordable price.



Dahua’s Lite Series network video recorders offer excellent performance and high recording quality for network video security applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and backup storage.



The NVR is compatible with numerous third-party devices making it the perfect solution for security systems with or without a video management system (VMS). Its open architecture supports multi-user access and it is compatible with ONVIF S, T, and G protocols, enabling interoperability when combined with 4K cameras.



Features:



4MP Network Cameras

  • 4MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
  • Analytics+ Function: Perimeter Protection, Smart Motion Detection+
  • Smart Dual Illumination — IR and White Light
  • True WDR (120 dB) and Day/Night (ICR)

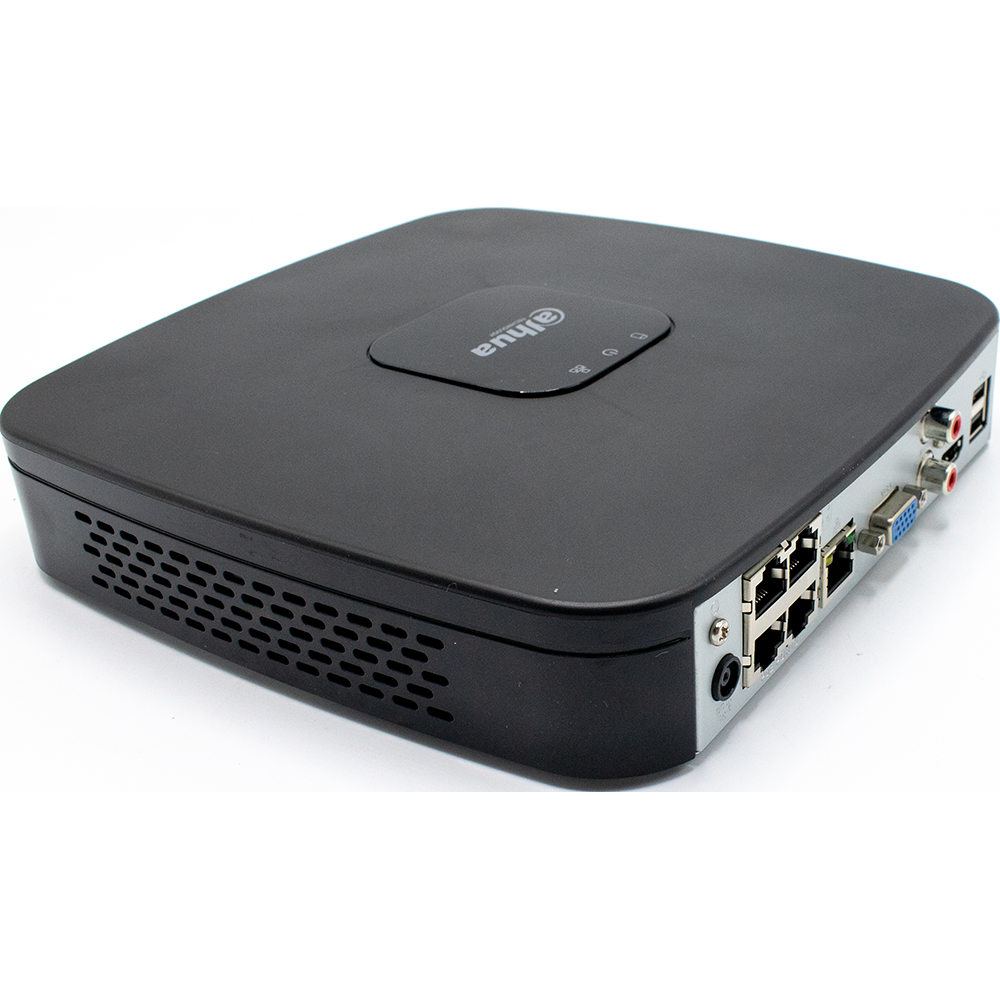

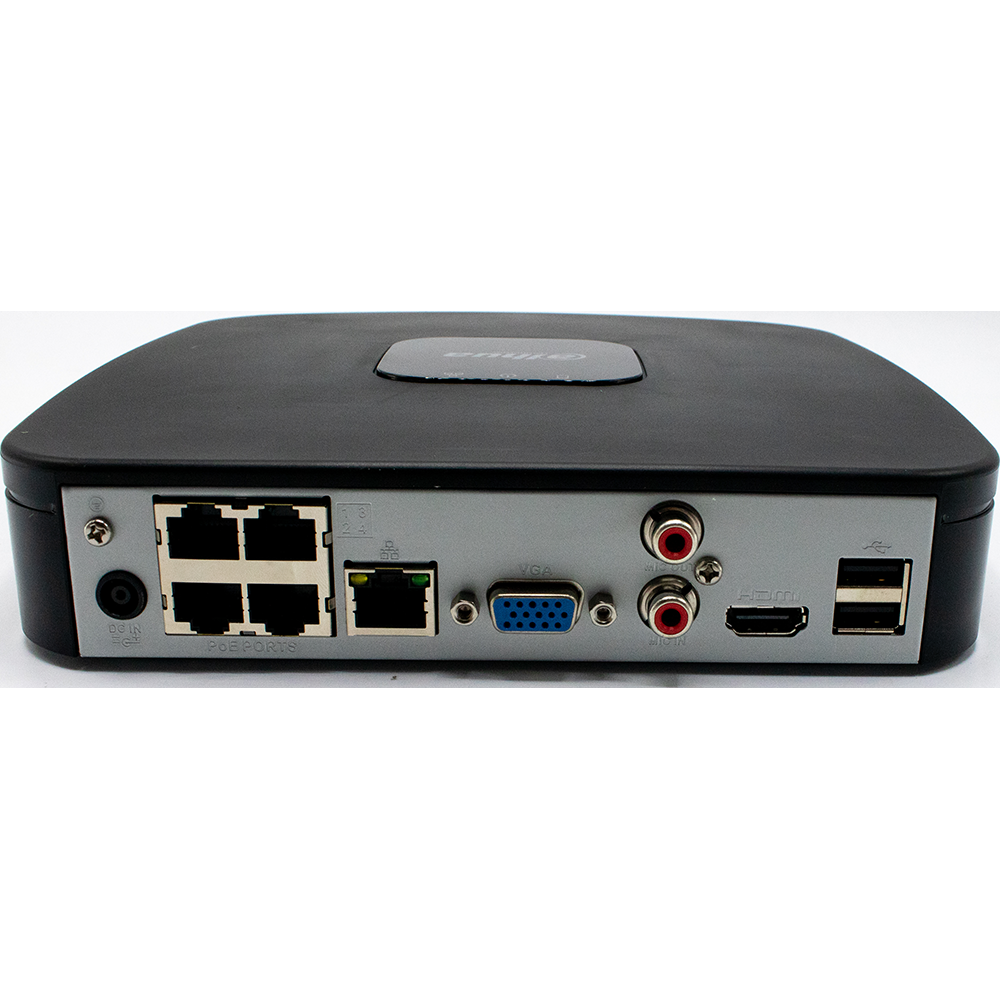

Four-channel NVR

  • Lite Series NVR with Four (4) Channels
  • One (1) SATA III Port, Up to 10 TB capacity per HDD
  • Maximum 80 Mbps Recording Bandwidth
  • Records Analytics+ Data from Edge Cameras
Technical Specification
N42DJS2 4MP VU-MORE Color Eyeball Network Camera
Camera
Image Sensor1/3-in. CMOS
Effective Pixels2688 (H) × 1520 (V), 4MP
Scanning SystemProgressive
RAM/ROM128 MB/128 MB
Electronic Shutter SpeedAuto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination

0.008 lux at F1.6 (Color, 30 IRE)

0.0008 lux at F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio> 56 dB
IR Distance30 m (98.43 ft) (IR), 15 m (49.21 ft) (Warm light)
IR On/Off ControlAuto; Manual
IlluminatorsOne (1) IR LED, One (1) Warm Light

Lens

Lens TypeFixed-focal
Iris TypeFixed
Mount TypeM12
Focal Length2.8 mm
Maximum ApertureF1.6
Angle of ViewHorizontal 95°
Vertical 52°
Diagonal 114°
Close Focus Distance0.9 m (2.95 ft)
DORI1 DistanceDetect ObserveRecognizeIdentify
63.6 m (208.66 ft)

25.4 m

(83.33 ft)

12.7 m

(41.67 ft)

6.4 m (20.99 ft)

Network

EthernetRJ-45 (10/100 Base-T)
Protocol

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP,

RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP,

Multcast, ICMP, IGMP

InteroperabilityONVIF (Profile S, Profile T), CGI, P2P, Milestone, SDK, API
Maximum User Access6 (Total bandwidth: 36 M)
Edge StorageFTP, SFTP, Micro SD Card Slot (Maximum 256 GB)
Web ViewerIE, Chrome, Firefox
Management SoftwareDSS, DMSS
Mobile Operating SystemiOS, Android
Cyber Security

Configuraton Encrypton, Trusted Executon, Digest,

Security Logs, WSSE, Account Lockout, Syslog,

Video

Encrypton, 802.1x, IP/MAC Filtering, HTTPS,

Trusted

Upgrade, Trusted Boot, Firmware Encrypton,

Generating and Importing X.509 Certifcaton

SafetyEN 62368-1
Electromagnetic Compatibility (EMC)

FCC CFR 47 Part 15 Subpart B

Electromagnetic Compatibility Directive 2014/30/

EU

Electrical
Power Supply12 VDC or PoE (802.3af)

Power

Consumption

Basic1.9 W (12 VDC), 2.4 W (PoE)
Maximum

5.2 W (12 VDC), 5.9 W (PoE)

(H.265 + Intelligence + WDR + Warm Light)

Environmental
Operating Conditions–40°C to +60°C (–40°F to +140°F), < 95% RH
Storage Conditions–40°C to +60°C (–40°F to +140°F)
Ingress ProtectionIP67
Construction
CasingMetal
Dimensions100.9 mm × Φ109.9 mm (3.97 in. × Φ4.33 in.)
Net Weight0.37 kg (0.82 lb)
Gross Weight0.51 kg (1.12 lb)
Analytics+ Functions
Perimeter Protection

•  Detects human or vehicle violations using the following methods:

Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.

•  Monitors a combination of detection methods.

•  Search and retrieve video based on target type.

Intelligent SearchWorks with a Smart NVR to perform and refine intelligent searches, event extraction and merging to event videos
Smart Motion Detection+2

•  Differentiates between and classifies human and vehicle objects.

•  Filters false alarms due to leaves, lights, animals, and other inconsequential objects.

•  Extracts human or vehicle objects from recorded video for quick target search and retrieval.

Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features

•  Tampering with the camera.

•  Error writing to an onboard Micro SD card.

•  Error sending or receiving data over the network.

•  Unauthorized access to the camera.

•  IP Address Conflict

Name
Description
Size
Downloads
File
Datasheet
0.9mb
