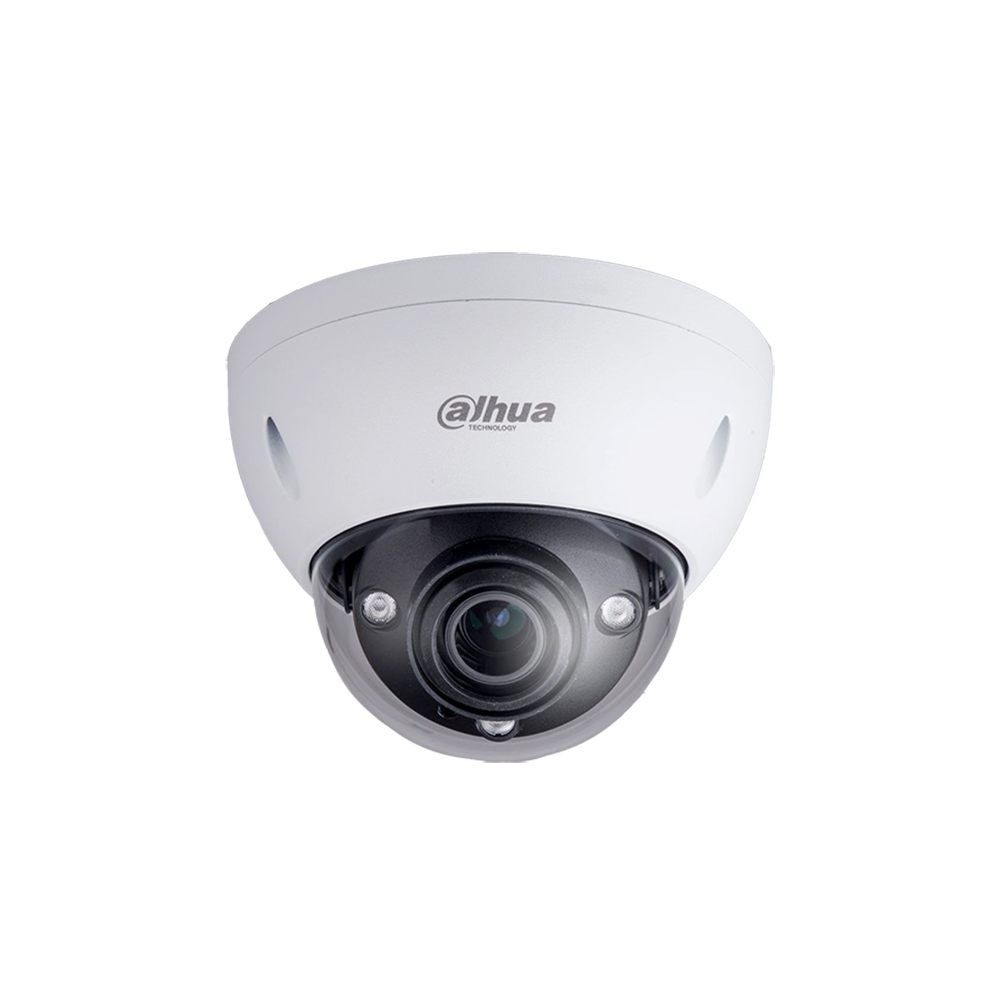

Dahua - N45CL5Z - 4MP IR Vari-focal ePoE Dome
Part number:
N45CL5Z
Price:

The 4MP camera features an advanced 1/3-in. Progressive-scan imager with a motorized optical zoom lens. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.

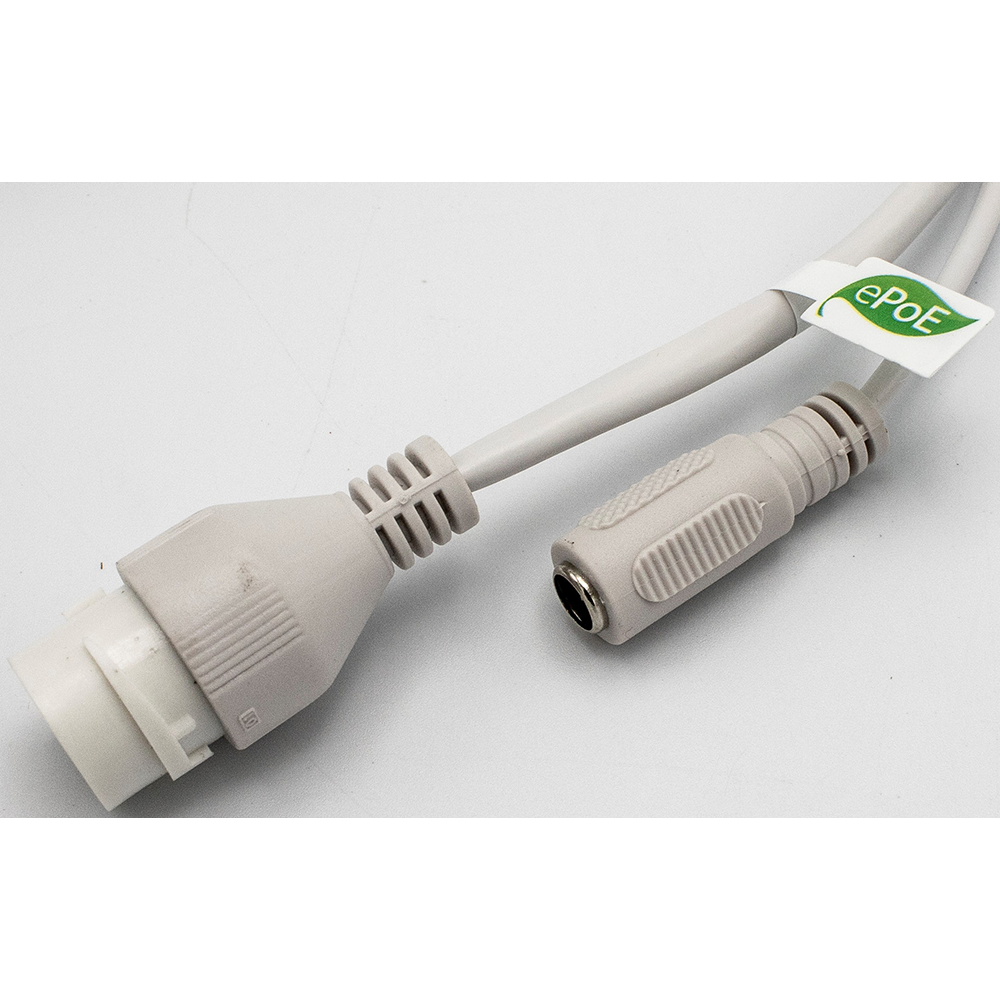

Dahua’s innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems. For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed. For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters.



Features:

  • 1/3-in. 4 MP Progressive-scan CMOS Sensor
  • Triple Stream Encoding
  • Smart H. 265+ and H.264 Dual Codecs
  • 4 MP at 30 fps Maximum Resolution
  • 2.7 mm to 13.5 mm Motorized Optical Zoom Lens
  • Enhanced Power and Data Transmission Distances with ePoE
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Length 50 m (164 ft) with Smart IR
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Camera

Image Sensor 1/3-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
RAM/ROM 512 MB/32 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.03 lux at F1.4 (1/3 s, 30 IRE)
Color: 0.3 lux at F1.4 (1/30 s, 30 IRE)
0 lux at F1.4 (IR on)
S/N Ratio More than 50 dB
IR Distance Distance up to 50 m (164.04 ft)
IR On/Off Control Auto, Manual
IR LEDs Three (3)

Lens

Lens Type Motorized, Auto Iris (DC)
Mount Type Board-in
Focal Length 2.7 mm to 13.5 mm
Maximum Aperture F1.4
Angle of View Horizontal: 106° to 31°
Vertical: 58° to 17°
Optical Zoom 5x
Focus Control Motorized
Close Focus Distance 0.30 m (0.98 ft)
