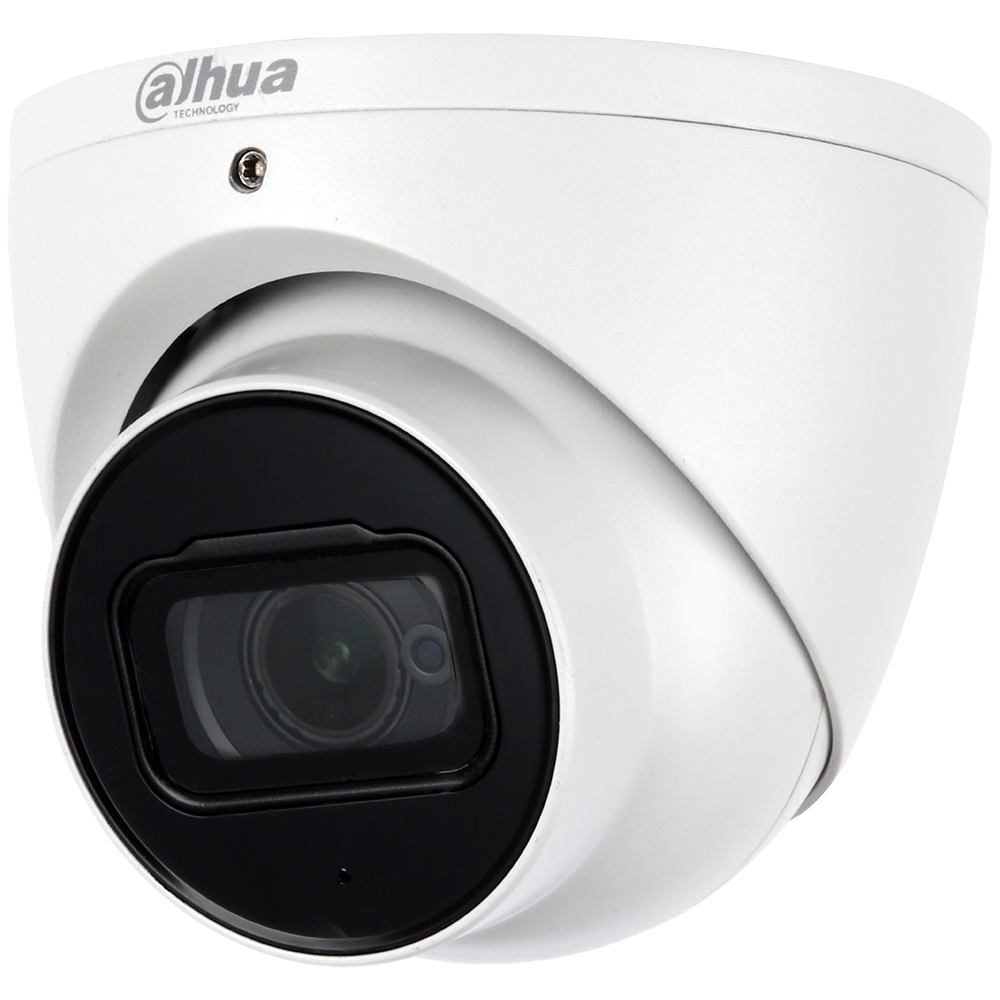

DAHUA - N45DJ62 - 4MP IR EYEBALL STARLIGHT 2.8MM EPOE NETWORK CAMERA
Part number:
N45DJ62
Price:

The Dahua 4 MP Starlight+ ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, people counting, and face capture. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Starlight+, True Wide Dynamic Range, and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments



Features:

  • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
  • Enhanced Power and Data Transmission Distances (ePoE)
  • Starlight+ Technology for Low-light Applications
  • Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • Built-in Microphone
  • IP67 Ingress Protection
  • Ultra Wide Dynamic Range (140 dB) and True Day/Night IR Cut Filter
  • Maximum IR LED Distance 26 m (85.30 ft)
  • Five-year Warranty (for products sold through an authorized Dahua Dealer

Camera

Image Sensor1/1.8-in. 4 MP CMOS
Effective Pixels2688(H) x 1520(V)
RAM/ROM512 MB/128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual, 1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.002 lux at F1.6
0 lux at F1.6 (IR on)
S/N RatioGreater than 50 dB
IR DistanceUp to 50 m (164.04 ft)
IR On/Off ControlAuto, Manual
IR LEDsTwo (2)

Lens

Lens TypeFixed-focal
Mount TypeBoard-in
Focal Length2.8 mm
Maximum ApertureF1.6
Angle of ViewHorizontal: 113°
Vertical: 60°
Focus ControlFixed
Close Focus Distance1.30 m (4.27 ft)
