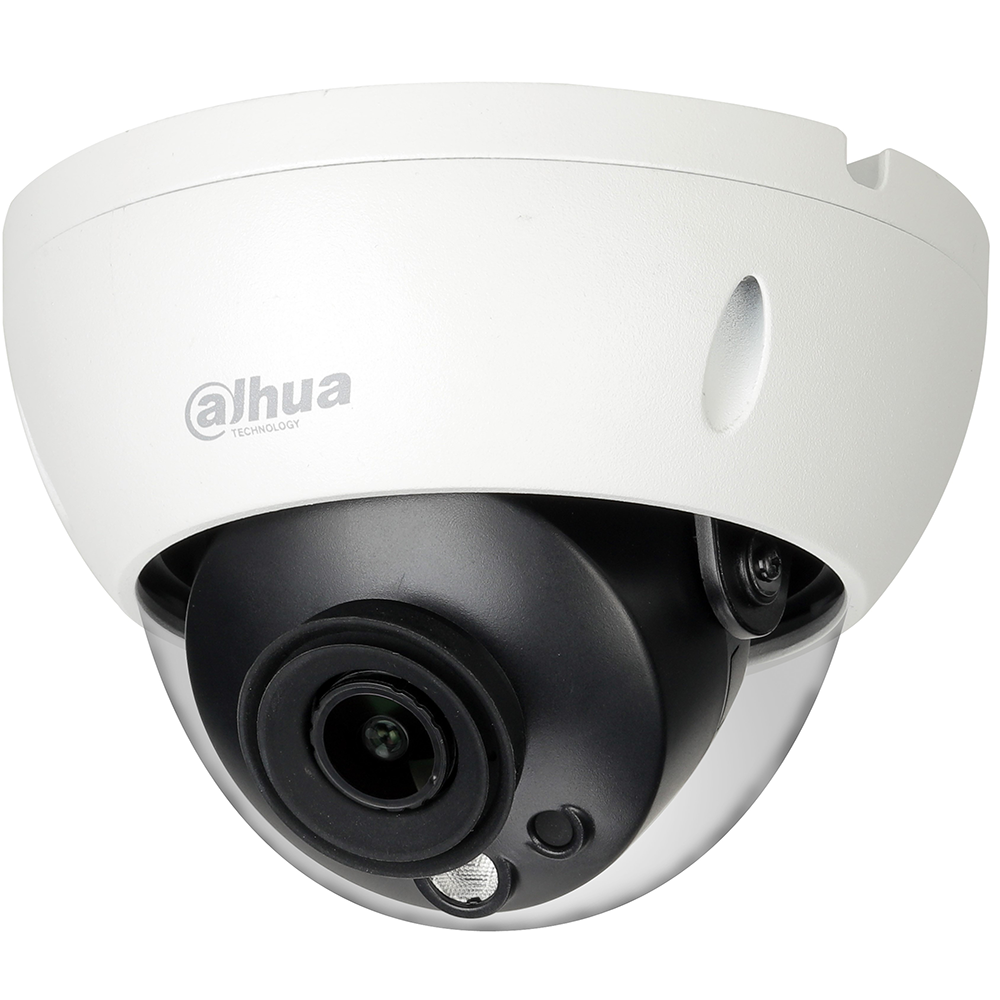

DAHUA - N45DM62 - 4MP IR STARLIGHT 2.8MM EPOE DOME CAMERA
Part number:
N45DM62
Price:

The Dahua 4 MP Starlight+ ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Starlight+, True Wide Dynamic Range, and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 and IK10 rating make the camera suitable for the harshest environments.



Features:

  • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
  • Enhanced Power and Data Transmission Distances (ePoE)
  • Starlight+ Technology for Low-light Applications
  • Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection+, and Face Capture
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Maximum IR LED Distance 26 m (85.30 ft)
  • Intelligent Video System
  • 5-year Warranty (for products sold through an authorized Dahua dealer)

Camera

Image Sensor1/1.8-in. 4 MP CMOS
Effective Pixels2688(H) x 1520(V)
RAM/ROM512 MB/128 MB
Scanning SystemProgressive
Electronic Shutter Speedd Auto, Manual, 1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.0016 lux at F1.6 (1/3 s, 30 IRE)
Color: 0.015 lux at F1.6 (1/30 s, 30 IRE)
0 lux at F1.6 (IR on)
S/N RatioGreater than 56 dB
IR DistanceUp to 26 m (85.30 ft)
IR On/Off ControlAuto, Manual
IR LEDsOne (1)

Lens

Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm
Maximum ApertureF1.6
Angle of ViewHorizontal: 113°
Vertical: 60°
Focus ControlFixed
Close Focus Distance1.30 m (4.27 ft)
Name
Description
Size
Downloads
File
A&E Specification
0mb
File
Datasheet
0.7mb
File
Quick Installation Guide
1.2mb
