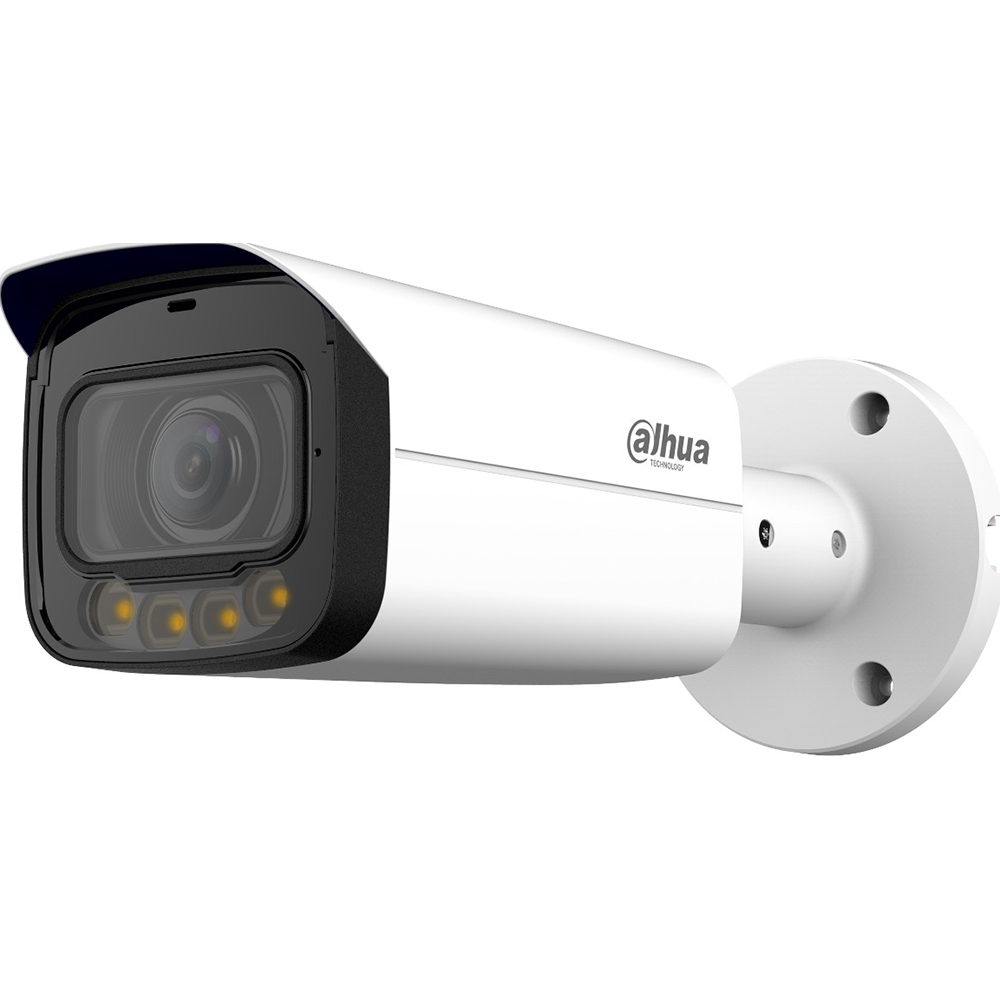

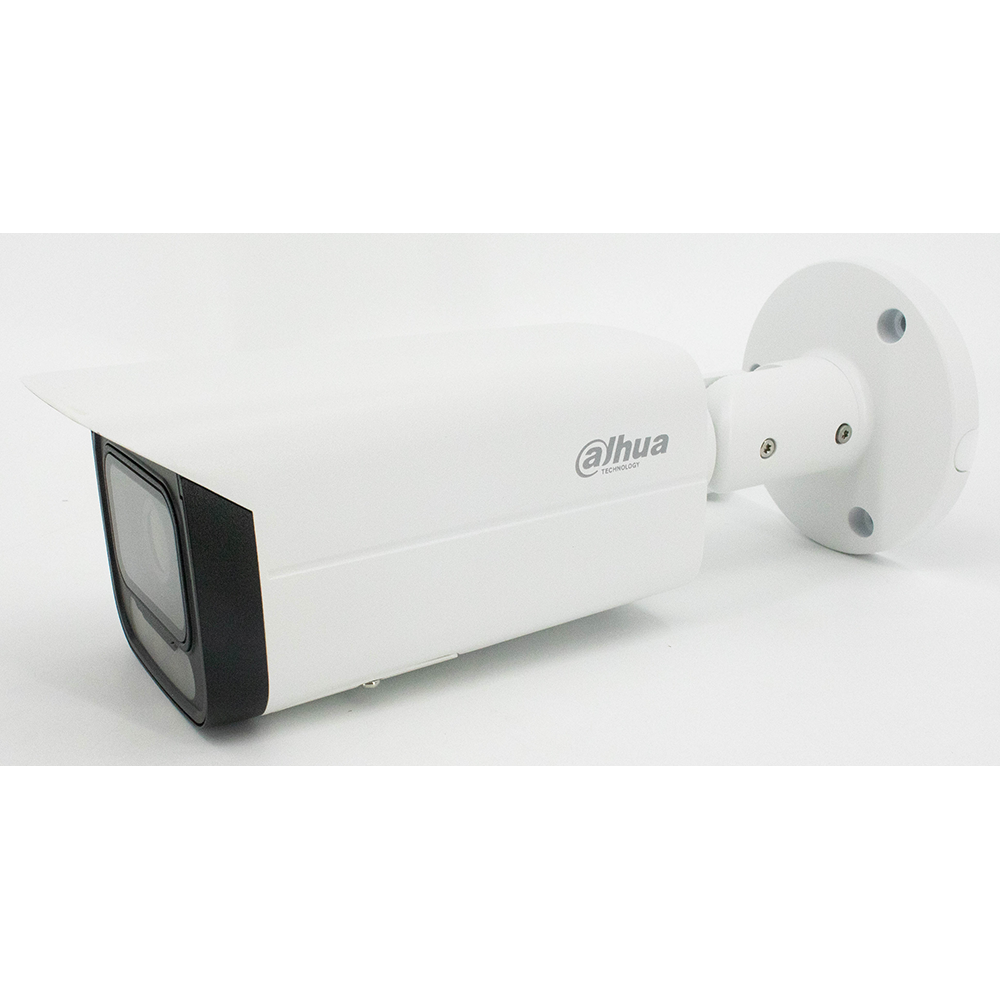

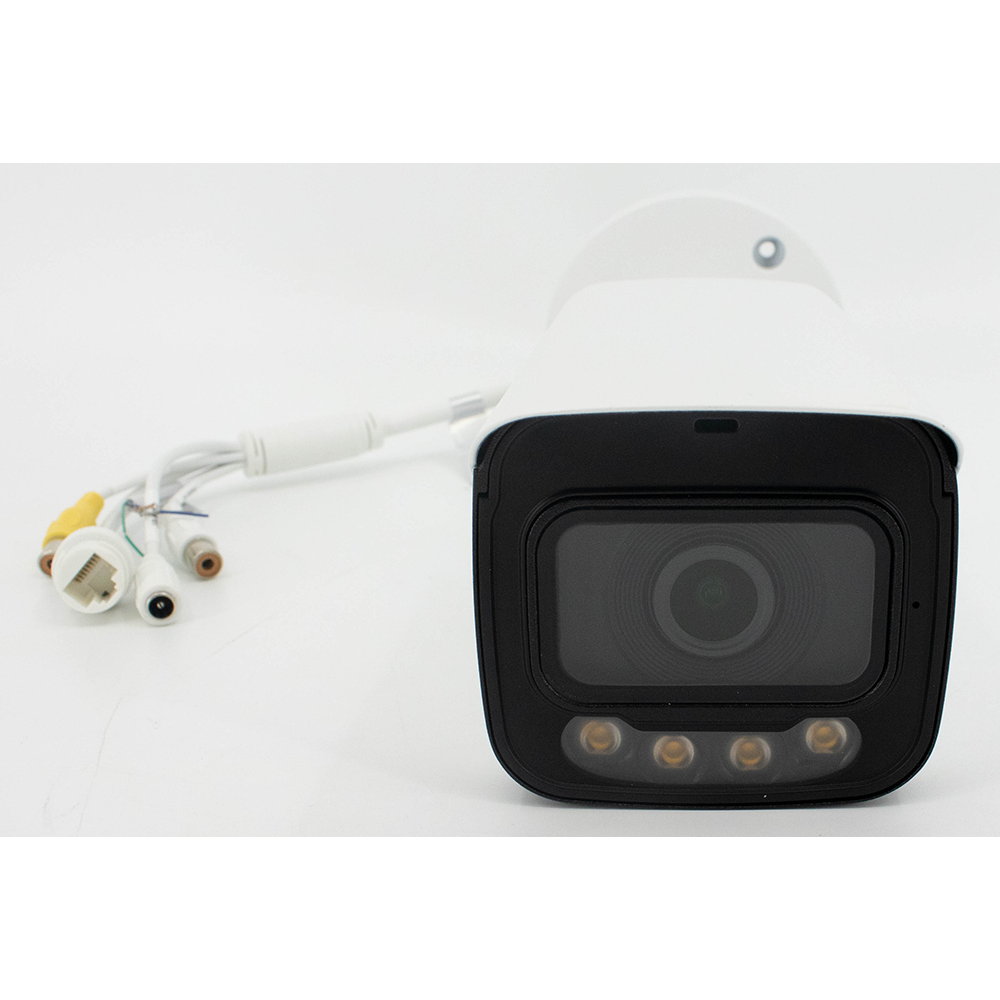

Dahua - N45EFN2 - 4MP Enhanced Night Color LED bullet 2.8mm ePoE, Pro Series
The Dahua 4 MP Night Color 2.0 ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
- Ultra Wide Dynamic Range (140 dB)
- Built-in Microphone
- Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
- Night Color Technology with White-light LEDS for Color Images in Total Darkness
- Enhanced Power and Data Transmission Distances (ePoE)
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- 5-year Warranty (for products sold through an authorized Dahua dealer)
Technical Specification
| Camera | |
| Image Sensor | 1/1.8-in. 4 MP Progressive-scan CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| S/N Ratio | > 56 dB |
| Minimum Illumination | Color: 0.0005 lux at F1.0 |
| Illuminator Type | White-light LED |
| Illumination Distance | 40.0 m (131.23 ft) |
| Illuminator Control | Automatic, Manual, Off |
| Illuminators | Four (4) |
Lens
| Lens Type | Fixed-focal |
| Mount Type | M16 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Angle of View | Horizontal: 107° Vertical: 60° Diagonal: 135° |
| Iris Type | Fixed |
| Close Focus Distance | 1.60 m (5.25 ft) |
Installation Angle
| DORI¹ Distance | Lens | Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| 2.8 mm | 58.2 m (190.9 ft) | 23.3 m (76.4 ft) | 11.6 m (38.1 ft) | 5.8 m (19.0 ft) |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only) | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream | 4 MP (2688 x 1520) at 30 fps |
| Sub Stream 1 | D1 (704 x 480) at 30 fps | |
| Sub Stream 2 | 1080p (1920 x 1080) at 1 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps H.265: 19 Kbps to 8192 Kbps | |
| Day/Night | Color, B/W | |
| BLC Mode | BLC, HLC, Ultra WDR (140 dB), SSA | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual, Gain Priority, Shutter Priority |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Defog |
| Image Rotation | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (8 Areas, Rectangular) |
Audio
| Compression | G.711a, G.711Mu, G.726, G.723, PCM |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users (Total bandwidth: 80 Mbps) |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP Micro SD Card Slot, maximum 256 GB |
| Web Viewer | IE (Version 8 and higher), Chrome, Firefox |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Certifications
| Safety | UL60950-1, CAN/CSA C22.2 No.60950-1-07 EN62368-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU |
Interface
| Audio | Input | One (1) Channel, RCA plus a built-in Microphone |
| Output | One (1) Channel, RCA | |
| Alarm | Input | One (1) Channel, 5mA, 3V to 5V DC |
| Output | One (1) Channel, 300mA, 12V DC |
Electrical
| Power Supply | 12 VDC ±30%, PoE (IEEE 802.3af, Class 0), or ePoE | |
Power Consumption | Basic | 12 VDC: 2.2 W PoE: 2.8 W |
| Maximum | 12 VDC: 7.4 W PoE: 8.4 W |
Environmental
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), |
| Ingress Protection | IP67 |
Construction
| Casing | Metal |
| Dimensions (L x W x H) | 244.10 mm x 79.0 mm x 75.90 mm (9.61 in. x 3.11 in. x 2.99 in.) |
| Net Weight | 0.82 kg (1.80 lb) |
| Gross Weight | 1.08 kg (2.38 lb) |
| Analytics+ Functions² | |
| Smart Plan Schedule | Enable Analytics+ functions depending on a user-defined schedule. Allows the camera to switch analytic functions based on time. |
| Perimeter Protection | • Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. • Monitors a combination of detection methods. • Search and retrieve video based on target type. |
| People Counting | • Delivers accurate flow statistics from the following methods: Line Crossing: counts a person as they cross a threshold in a defined direction. Region: counts the number of people in a defined area. • Counts people simultaneously from four (4) threshold lines and four (4) defined regions. |
Intelligent Video System Functions
| IVS triggers an alarm and takes a defined action for the following events: | |
| Standard Features | • Tampering with the camera. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera. • IP Address Conflict |
| Premium Features | |
| Missing Object | An object is missing from a designated area. |
| Abandoned Object | An object is placed in a designated area where no object should be. |
| Scene Change | A person or object moves the camera to change the scene or covers the camera to obscure the scene. |
| Fast Moving | Target exceeds a set speed when exiting a defined area |
| Parking Detection | Vehicle remains in a defined area without motion for a set period of time. |
| Crowd Gathering | Specified number of people remain inside a defined area for a set time. |
| Loitering Detection | Target is in motion inside a defined area longer than a specified amount of time. |
