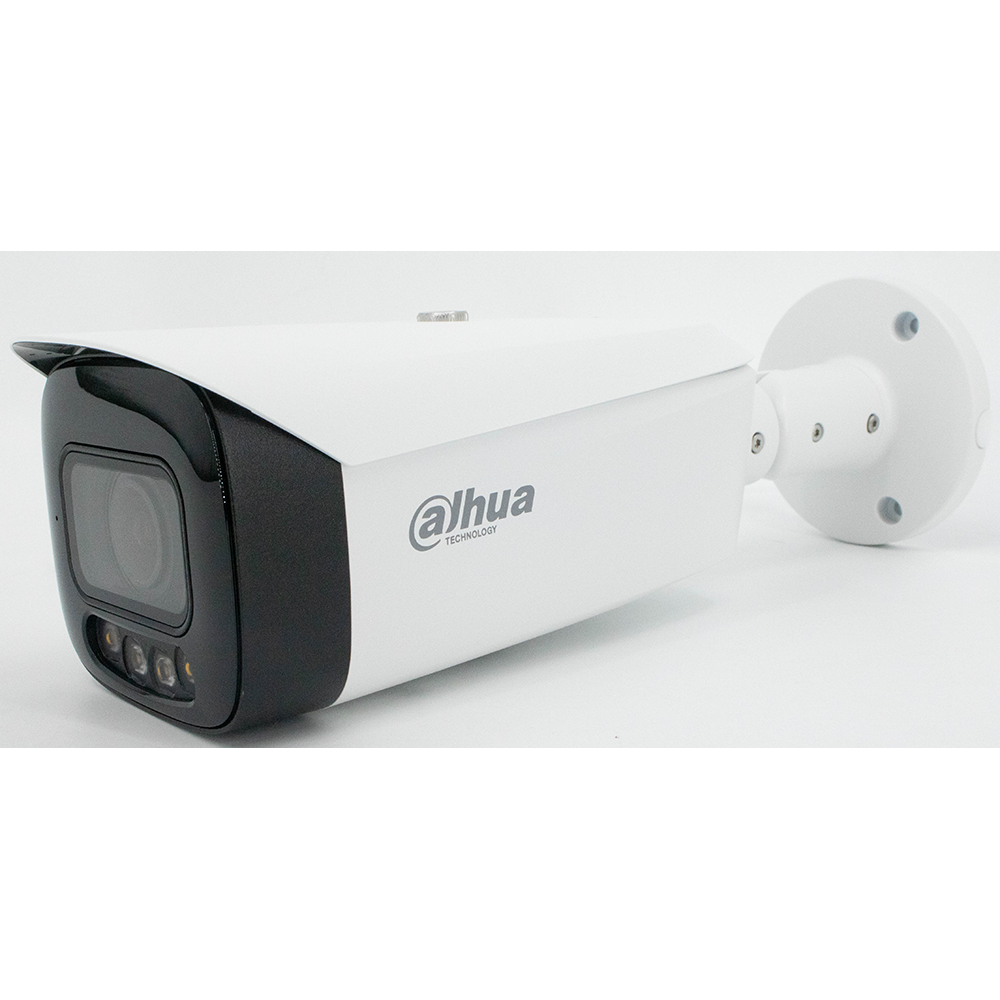

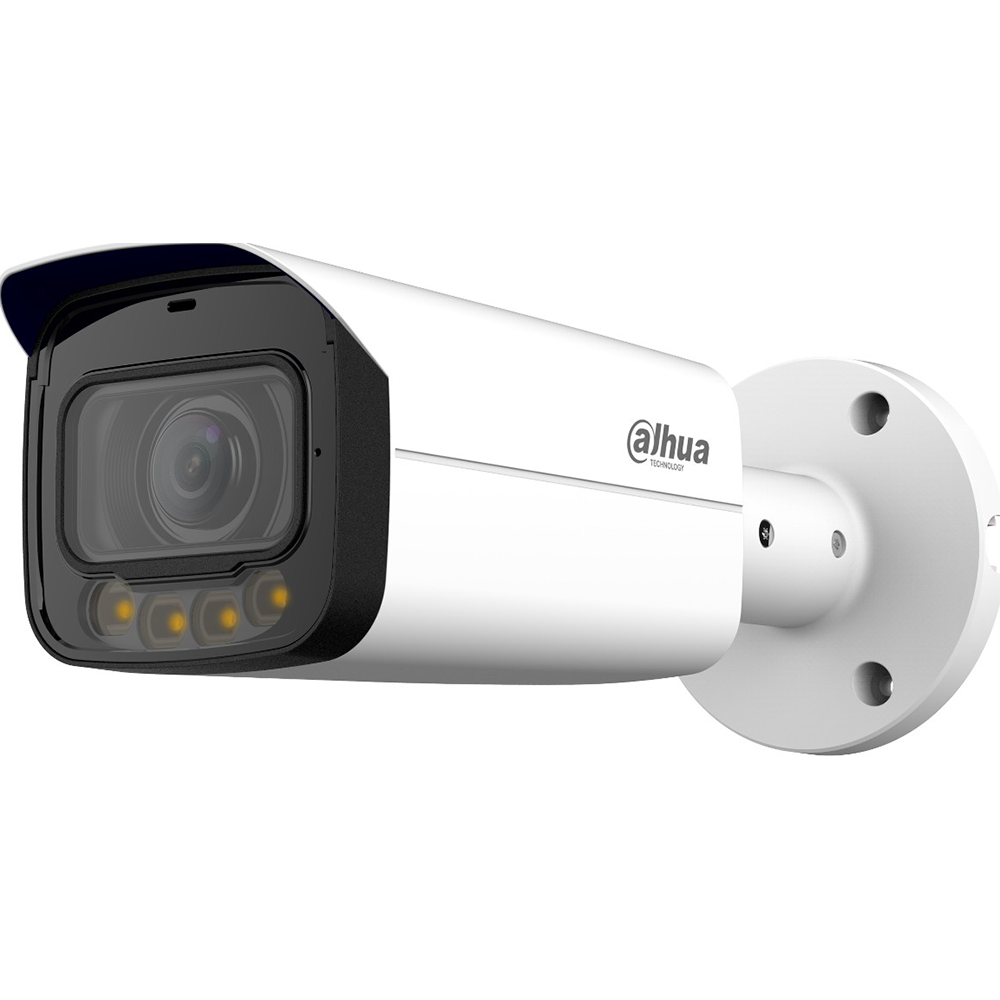

The Dahua 4 MP Night Color 2.0 ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
WizMind Series devices offer the full complement of Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products deliver perimeter protection, vehicle and crowd density statistics, video metadata, and advanced people counting with heat map functionality. WizMind is ideal for complex applications with demanding requirements that need advanced analytic capabilities.
Features:
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 30 fps, 2.7 mm to 12 mm Motorized Lens
- Ultra Wide Dynamic Range (140 dB)
- Built-in Microphone and Speaker
- Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
- Night Color Technology with White-light LEDS for Color Images in Total Darkness
- Enhanced Power and Data Transmission Distances (ePoE)
- IP67 Ingress Protection
- 5-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/1.8-in. 4 MP Progressive-scan CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| S/N Ratio | > 56 dB |
| Minimum Illumination | Color: 0.0005 lux at F1.0 |
| Illuminator Type | White-light LED |
| Illumination Distance | 70.0 m (229.66 ft) |
| Illuminator Control | Automatic, Manual, Zoom Priority, Off |
| Illuminators | Four (4) |
Lens
| Lens Type | Motorized Vari-focal | ||||
| Mount Type | ø14 | ||||
| Focal Length | 2.7 mm to 12 mm | ||||
| Maximum Aperture | F1.0 | ||||
| Angle of View | Horizontal: 48° to 115° Vertical: 27° to 59° Diagonal: 55° to 142° | ||||
| Iris Type | Automatic | ||||
| Close Focus Distance | 1.75 m (5.74 ft) | ||||
| DORI¹ Distance | Lens | Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| Wide | 60.4 m (198.2 ft) | 24.1 m (79.1 ft) | 12.0 m (39.4 ft) | 6.0 m (19.7 ft) | |
| Tele | 128.6 m (421.9 ft) | 51.4 mm (168.6 ft) | 25.7 m (84.3 ft) | 12.8 m (42.0 ft) | |
Installation Angle
| Range | Pan: 0˚ to 360˚ Tilt: 0˚ to 90˚ Rotation: 0˚ to 360˚ |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only) | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream | 4 MP (2688 x 1520) at 30 fps |
| Sub Stream 1 | D1 (704 x 480) at 30 fps | |
| Sub Stream 2 | 1080p (1920 x 1080) at 1 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps H.265: 12 Kbps to 8192 Kbps | |
| Day/Night | Color, B/W | |
| BLC Mode | BLC, HLC, Ultra WDR (140 dB), SSA | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual, Gain Priority, Shutter Priority |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Defog |
| Image Rotation | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (8 Areas, Rectangular) |
| Audio | |
| Compression | G.711a, G.711Mu, G.726, G.723, PCM |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 Users (Total bandwidth: 80 Mbps) |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP Micro SD Card Slot, maximum 256 GB |
| Web Viewer | IE (Version 8 and higher), Chrome, Firefox |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Certifications
| Safety | UL60950-1, CAN/CSA C22.2 No.60950-1-07 EN62368-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU |

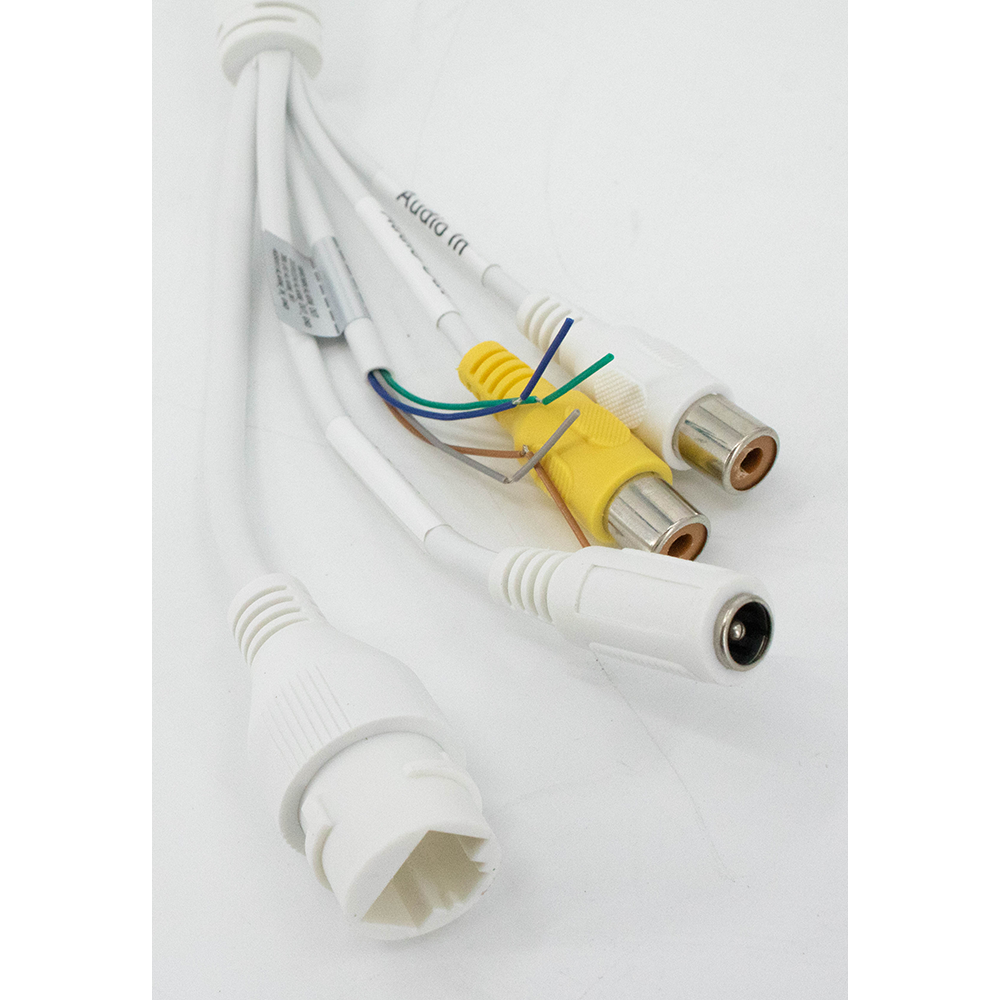

Interface
| Audio | Input | One (1) Channel, RCA plus a built-in Microphone |
| Output | One (1) Channel, RCA plus a built-in Speaker | |
| Alarm | Input | One (1) Channel, 5mA, 3V to 5V DC |
| Output | One (1) Channel, 300mA, 12V DC |
Electrical
| Power Supply | 12 VDC ±30%, PoE (IEEE 802.3af, Class 0), or ePoE | |
Power Consumption | Basic | 12 VDC: 2.2 W PoE: 2.8 W |
| Maximum | 12 VDC: 9.9 W PoE: 10.9 W |
Environmental
| Operating Conditions | –30° C to +60° C (–22° F to +140° F), Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), |
| Ingress Protection | IP67 |
Construction
| Casing | Metal |
| Dimensions (L x W x H) | 288.40 mm x 94.40 mm x 84.70 mm (11.35 in. x 3.72 in. x 3.33 in.) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
Analytics+ Functions²
| Smart Plan Schedule | Enable Analytics+ functions depending on a user-defined schedule. Allows the camera to switch analytic functions based on time. | |
| Perimeter Protection | • Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. • Monitors a combination of detection methods. • Search and retrieve video based on target type. | |
| People Counting | • Delivers accurate flow statistics from the following methods: Line Crossing: counts a person as they cross a threshold in a defined direction. Region: counts the number of people in a defined area. • Counts people simultaneously from four (4) threshold lines and four (4) defined regions. | |
| Queue Management | • Monitors four (4) user-defined regions where people wait in line (or queue). Issues an alarm for the following triggers: People in Line: the number of people in line exceeds a minimum threshold. Wait Time: time a person waits in line is greater than the minimum queue time. | |
| Face Detection | • Detects and captures a snapshot of a human face within a scene. | |
| Smart Motion Detection+ | • Differentiates between and classifies human and vehicle objects. • Filters false alarms due to leaves, lights, animals, and other inconsequential objects. • Extracts human or vehicle objects from recorded video for quick target search and retrieval. | |
Recommended Detection Distance | Human | Up to 10.0 m (32.81 ft) |
| Vehicle | Up to 15.0 m (49.21 ft) | |
Intelligent Video System Functions
| IVS triggers an alarm and takes a defined action for the following events: | |
| Standard Features | • Tampering with the camera. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera. • IP Address Conflict |
| Premium Features | |
| Missing Object | An object is missing from a designated area. |
| Abandoned Object | An object is placed in a designated area where no object should be. |
| Scene Change | A person or object moves the camera to change the scene or covers the camera to obscure the scene. |
| Fast Moving | Target exceeds a set speed when exiting a defined area |
| Parking Detection | Vehicle remains in a defined area without motion for a set period of time. |
| Crowd Gathering | Specified number of people remain inside a defined area for a set time. |
| Loitering Detection | Target is in motion inside a defined area longer than a specified amount of time. |
