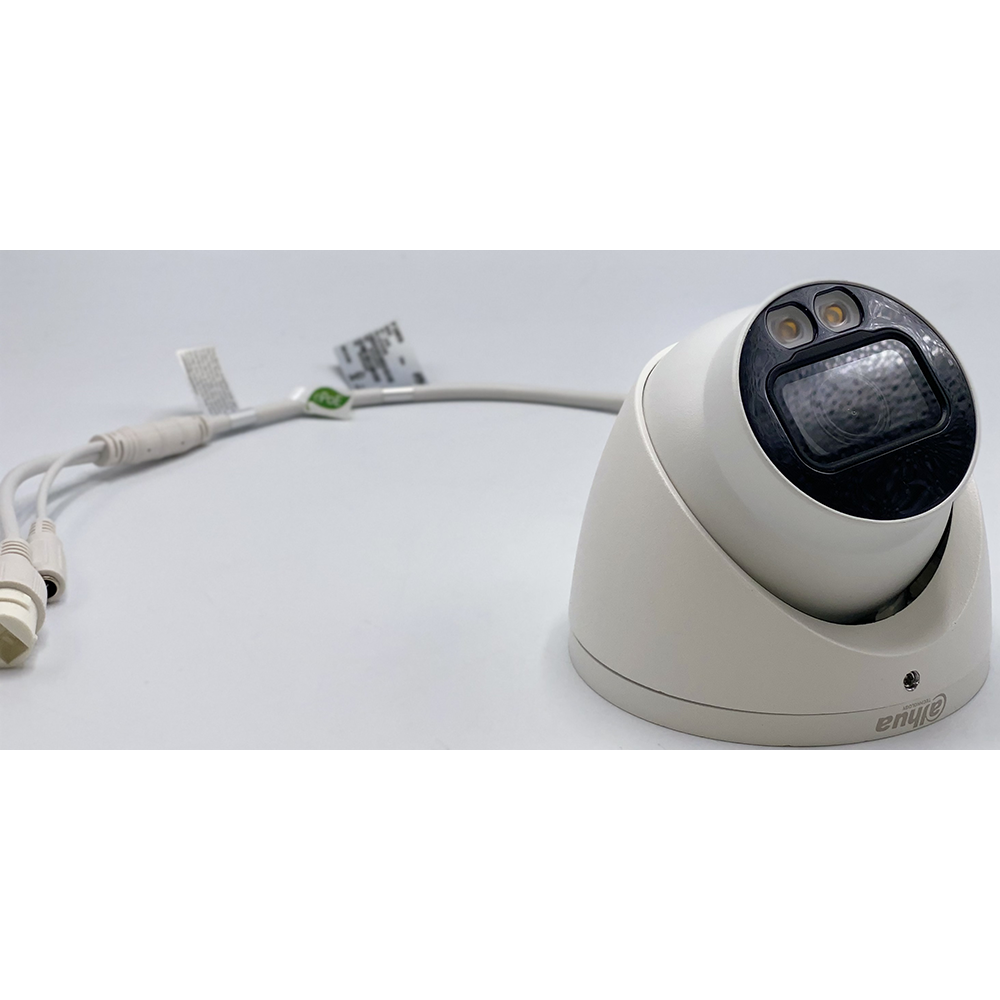

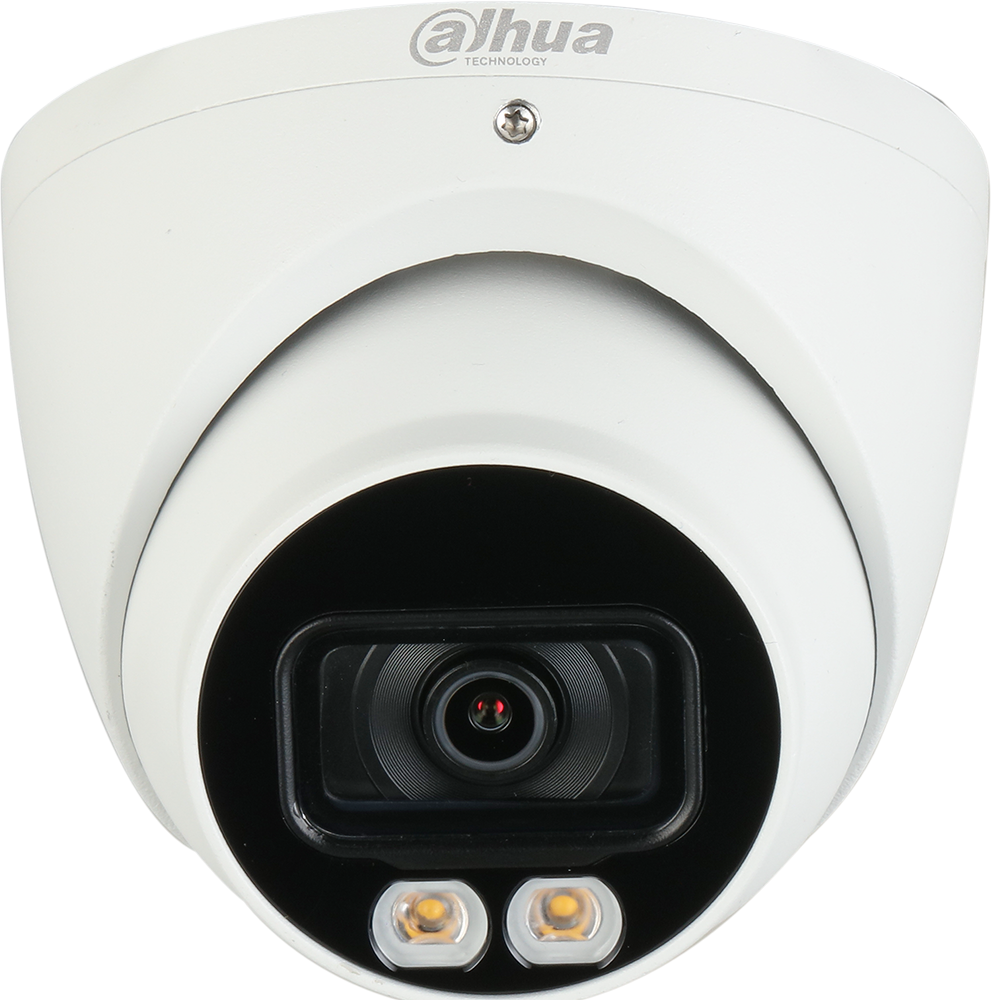

Dahua - N45EJ62 - 4MP ePoE Night Color Network Eyeball Camera
Part number:
N45EJ62
Price:
The Dahua 4 MP Night Color ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection+, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
- Ultra Wide Dynamic Range (140 dB)
- Built-in Microphone
- Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection, and Face Detection
- Night Color Technology with White-light LEDS for Color Images in Total Darkness
- Enhanced Power and Data Transmission Distances (ePoE)
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Technical Specification | |
| Image Sensor | 1/1.8-in. 4 MP Progressive-scan CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| S/N Ratio | > 56 dB |
| Minimum Illumination | Color: 0.002 lux at F1.6 |
| Illuminator Type | White-light LED |
| Illumination Distance | 20.0 m (65.62 ft) |
| Illuminator Control | Automatic, Manual |
| (Illuminators off by default) | |
| Illuminators | Two (2) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 113° |
| Vertical: 60° | |
| Focus Control | Fixed |
| Close Focus Distance | 1.30 m (4.27 ft) |
| Detect | |
| DORI¹ | (8 ppf) |
| Distance | 58.0 m |
| (190.29 ft) | |
| Installation Angle | |
| Range | Pan: 0˚ to 360˚ |
| Tilt: 0˚ to 78˚ | |
| Rotation: 0˚ to 360˚ | |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, |
| H.264H, MJPEG (sub stream only) | |
| Streaming Capability | Three (3) Streams |
| 4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, | |
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), |
| 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), | |
| CIF (352 x 240) | |
| 4 MP (2688 x 1520) at 30 fps or | |
| 1920 x 1080 at 60 fps | |
| Frame Rate | D1 at 30 fps |
| Sub Stream 2 720p (1280 x 720) at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps |
| H.265: 19 Kbps to 8192 Kbps | |
| Day/Night | Electronic Day/Night: Auto, Color, B/W |
| BLC Mode | BLC, HLC, Ultra WDR (140 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, |
| Regional Custom | |
| Gain Control | Auto, Manual, Gain Priority, Shutter Priority |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Smart Illumination, Defog |
| Flip | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
| Audio | |
| Compression | G.711a, G.711Mu, AAC, G.726, G.723, PCM |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, |
| FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, | |
| UPnP, NTP, ICMP, IGMP, 802.1x | |
| Interoperability | ONVIF Profile S, G, T; CGI, Milestone, Genetec, P2P |
| Auto Register³ | Support |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 Users |
| Edge Storage | Network Attached Storage (NAS) |
| FTP, SFTP | |
| Micro SD Card Slot, maximum 256 GB | |
| Web Viewer | IE (Version 8 and higher), Chrome, Firefox, |
| Safari (Version 12 and higher) | |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL60950-1 |
| CAN/CSA C22.2 No.60950-1-07 | |
| EN62368-1 | |
| Electromagnetic Compatibility | CFR 47 FCC Part 15 Subpart B |
| (EMC) | Electromagnetic Compatibility Directive 2014/30/EU |
| Interface | |
| Audio | Input: Built-in Microphone |
| Electrical | |
| Power Supply | 12 VDC ±30%, PoE (IEEE 802.3af, Class 0), or ePoE |
| Power Consumption | <7.2W |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), |
| Less than 95% RH | |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | ø106.0 mm x 99.20 mm |
| (4.17 in. x 3.91 in.) | |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
| Analytics+ Functions² | |
| • Detects human or vehicle violations using the | |
| following methods: | |
| Perimeter Protection | Tripwire: a target crosses a defined line. |
| Intrusion: a target enters or exits a defined | |
| perimeter. | |
| • Monitors a combination of detection methods. | |
| • Search and retrieve video based on target type. | |
| • Delivers accurate flow statistics from the following | |
| methods: | |
| Line Crossing: counts a person as they cross a | |
| People Counting | threshold in a defined direction. |
| Region: counts the number of people in a defined | |
| area. | |
| • Counts people simultaneously from four (4) threshold | |
| lines and four (4) defined regions³. | |
| • Differentiates between and classifies human and | |
| vehicle objects. | |
| Smart Motion Detection² ³ | • Filters false alarms due to leaves, lights, animals, and |
| other inconsequential objects. | |
| • Extracts human or vehicle objects from recorded | |
| video for quick target search and retrieval. | |
| Face Detection | • Detects and captures a snapshot of a human face |
| within a scene. | |
| • Tampering with the camera. | |
| Standard Features | • Error writing to an onboard Micro SD card. |
| • Error sending or receiving data over the network. | |
| • Unauthorized access to the camera. | |
| • IP Address Conflict | |
| Premium Features | |
| Missing Object | An object is missing from a designated area. |
| Abandoned Object | An object is placed in a designated area where no |
| object should be. | |
| Scene Change | A person or object moves the camera to change the |
| scene or covers the camera to obscure the scene. | |
| Fast Moving | Target exceeds a set speed when exiting a defined area |
| Parking Detection | Vehicle remains in a defined area without motion for a |
| set period of time. | |
| Crowd Gathering | Specified number of people remain inside a defined |
| area for a set time. | |
| Loitering Detection | Target is in motion inside a defined area longer than a |
| specified amount of time. | |
