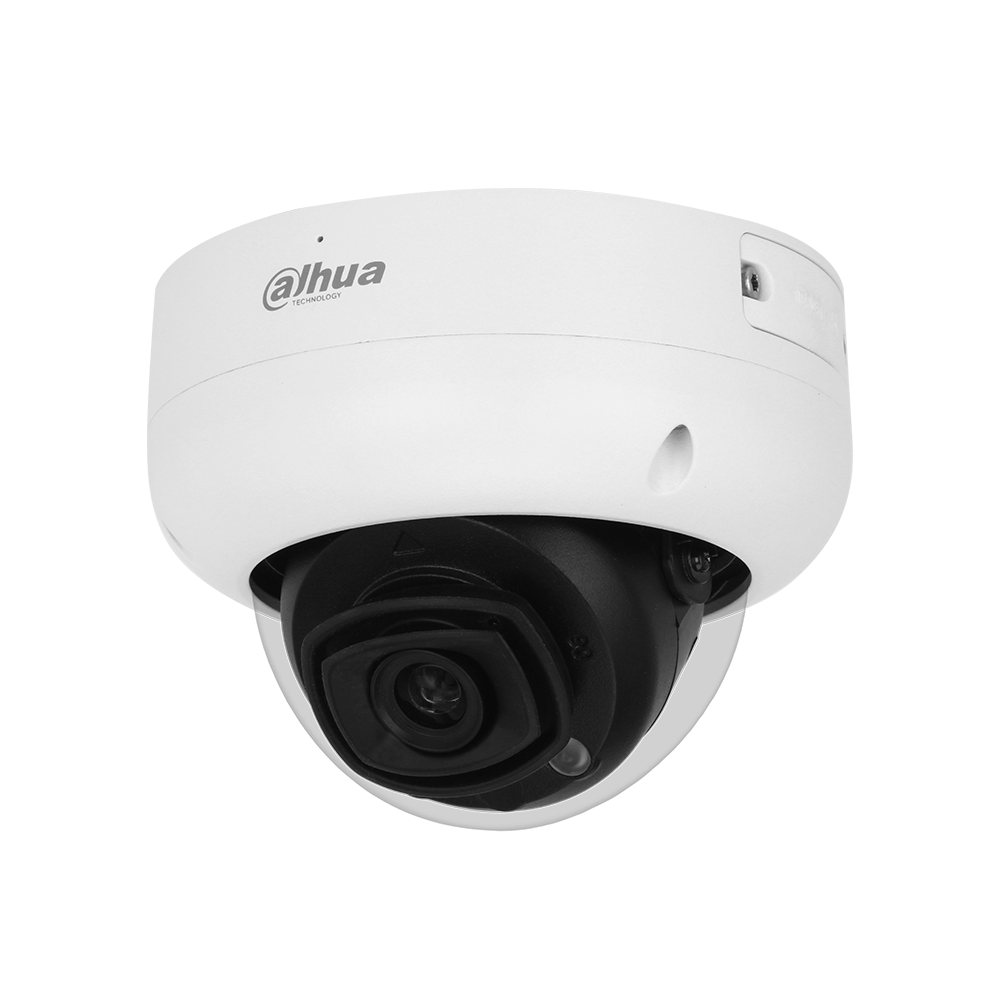

The Dahua AcuPick Starlight+ 4MP Network Domm Camera offers Analytics+ functions at the edge–performing complex real-time AcuPick, Face Detection, People Counting, and Perimeter Protection. Dahua’s Analytics+ algorithms significantly improve accuracy and reliability compared to standard intelligent features. The camera is ideal for a host of diverse applications with Starlight+, Ultra Wide Dynamic Range, and Smart IR technologies and an IP67 and IK10 rating to allow the camera to operate in the most difficult lighting conditions and environments.
Features:
- 1/1.8-in. 4MP Progressive-scan CMOS Sensor
- Quadruple-stream Encoding
- AI Coding, Smart H.265+, and Smart H.264+ Video Compressions
- AI Smart Scene Adaptive (SSA) Technology
- 4MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
- Enhanced Power and Data Transmission Distances (ePoE)
- Starlight+ Technology for Low-light Applications
- Analytics+ Functions — AcuPick, Face Detection, People Counting, Perimeter Protection, and Smart Motion Detection+
- Ultra Wide Dynamic Range (140 dB) and True Day/Night IR Cut Filter
- Maximum IR LED Distance 50 m (164.04 ft)
- Built-in Microphone
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- IP67 Ingress Protection, IK10 Vandal Resistance
- Five-year Warranty
| Technical Specification | ||
| Camera | ||
| Image Sensor | 1/1.8-in. 4MP CMOS | |
| Effective Pixels | 2688(H) x 1520(V) | |
| RAM/ROM | 1 GB/4 GB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s | |
Minimum Illumination | Color | 0.0007 lux at F1.6 (30 IRE) |
| B/W | 0.0004 lux at F1.6 (30 IRE) | |
| IR On | 0 lux at F1.6 | |
| S/N Ratio | < 56 dB | |
| IR Distance | Up to 50 m (164.04 ft) | |
| IR On/Off Control | Auto, Manual | |
| IR LEDs | Two (2) | |
Lens
| Lens Type | Fixed-focal | ||||
| Mount Type | Board-in | ||||
| Focal Length | 2.8 mm | ||||
| Maximum Aperature | F1.6 | ||||
| Angle of View | Horizontal | 112° | |||
| Vertical | 58° | ||||
| Diagonal | 139° | ||||
| Focus Control | Fixed | ||||
| Close Focus Distance | 1.30 m (4.27 ft) | ||||
| DORI1 Distance | Detect | Observe | Recognize | Identify | |
| 61 m (202 ft) | 25 m (81 ft) | 12 m (40 ft) | 6 m (20 ft) | ||
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| Interoperability | ONVIF (Profile, S, G, T), CGI, P2P |
| Auto Register | Supported |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users |
| Edge Storage | Network Attached Storage (NAS), FTP, SFTP, MicroSD Slot (Maximum 512 GB) |
| Web Viewer | Edge (Version 9 or Higher), Chrome (Version 102 or Higher), Firefox (Version 88 or Higher) |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Video
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) | |
| Streaming Capability | Four (4) Streams | |
| Resolution | 4MP (2688 x 1520), 3MP (2048 x 1536), 2304 x 1296, 1080p (1920 x 1080),1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate2 | Main Stream | 4MP (2688 x 1520) at 30 fps |
| Sub Stream 1 | D1 at 30 fps | |
| Sub Stream 2 | 1080p at 30 fps | |
| Sub Stream 3 | 720p at 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264 | 32 Kbps to 8192 Kbps |
| H.265 | 19 Kbps to 13568 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, Ultra WDR (140 dB), SSA | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zones, Rectangular) | |
| Region of Interest | Off, On (4 Zones) | |
| Advanced Features | Smart IR, Defog | |
| Image Rotation | 0°, 90°, 180°, 270° | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (8 Areas, Rectangular) | |
