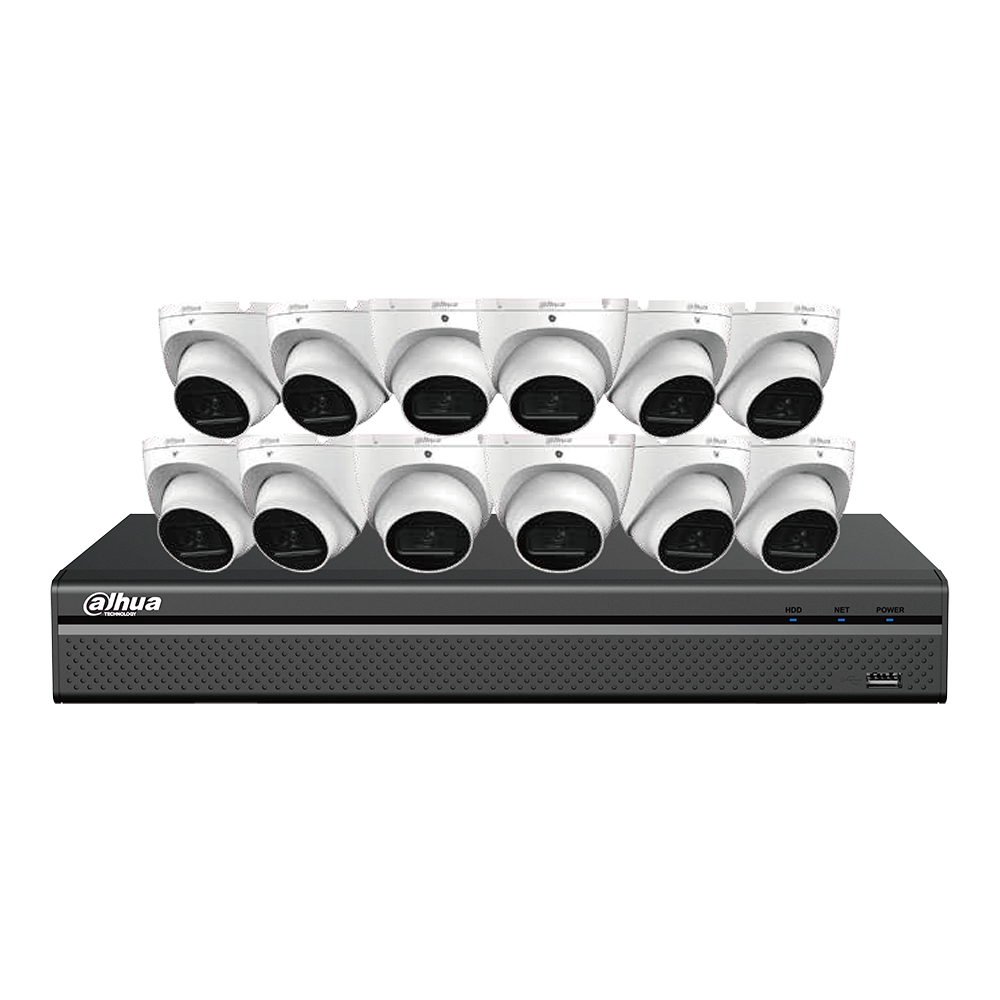

The Dahua Network Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The IP cameras offer the clarity of 8MP video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.
Features:

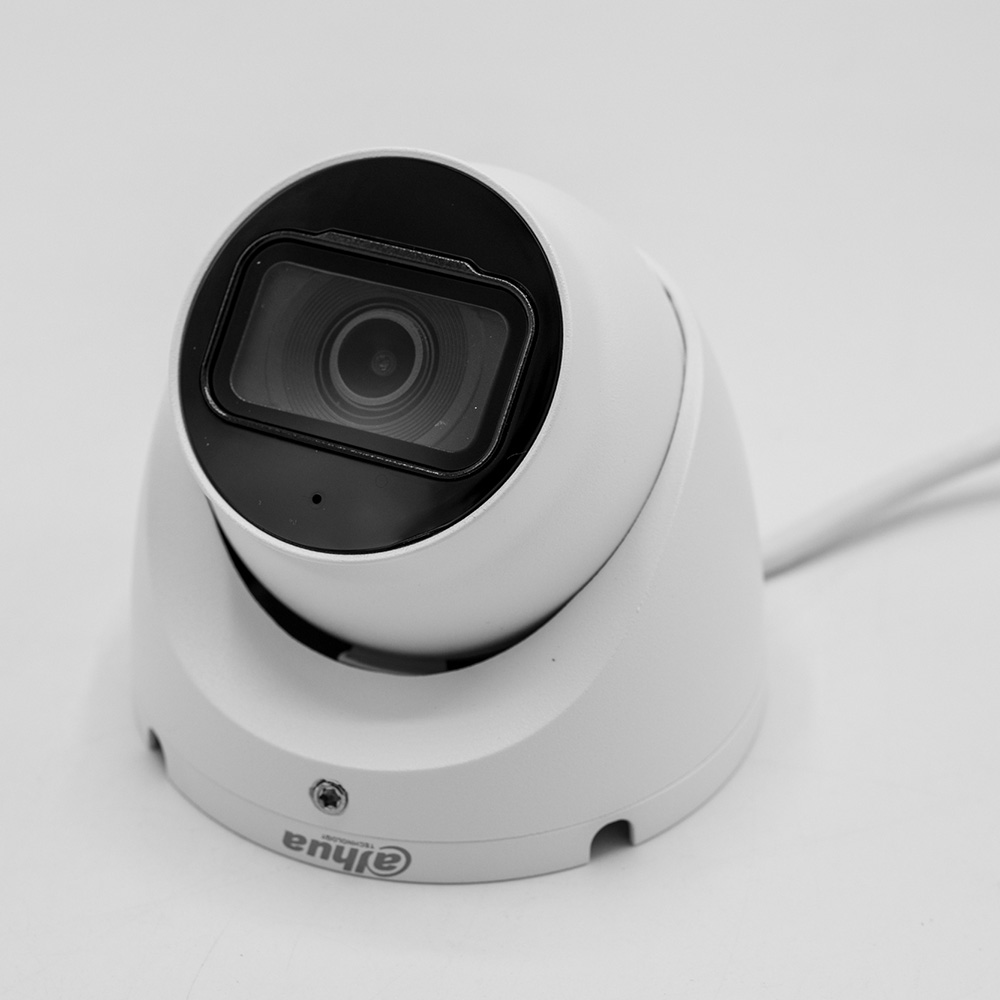

8MP Network Cameras
- 8MP at 15 fps Maximum Resolution
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- 2.8 mm fixed lens
- Built-in Microphone
- IP67 Ingress Protection
4K Network Video Recorder
- 4 TB Pre-installed Had Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 160 Mbps Incoming Bandwidth
- Up to 8 MP Resolution for Preview and Playback
Camera
| Image Sensor | 1/2.7-in. 8MP Progressive-scan CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| RAM/ROM | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color, 30 IRE: 0.04 lux at F2.0 B/W, 30 IRE: 0.004 lux at F2.0 0 lux (Illuminator On) |
Lens
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 105° Vertical: 56° Diagonal: 125° |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG |
| Resolution | 3840 × 2160, 3072 × 2048, 3072 ×1728, 2592 × 1944, 2688 × 1520, 3MP (2048 × 1536); 2304 × 1296, 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 kpbs to 8192 Kbps H.265: 12 kpbs to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight | BLC, HLC, DWDR |
| Image Rotation | 0°, 90°, 180°, 270° (Supports 90°, 270° with 2688 x 1520 resolution or lower) |
| Interface | One (1) HDMI One (1) VGA |
| Native Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Decoding | Two (2) Channel of 8MP at 30 fps Four (4) Channels of 4MP at 30 fps Eight (8) Channels of 2MP at 30 fps 16 Channels of 2 MP at 15 fps |
| Multi-screen Display | 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
Recording
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio Compression | PCM, G.711A, G.711Mu, G.726 |
| Supported IP Camera Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1 |
| Maximum Recording Bandwidth | 160 Mbps |
