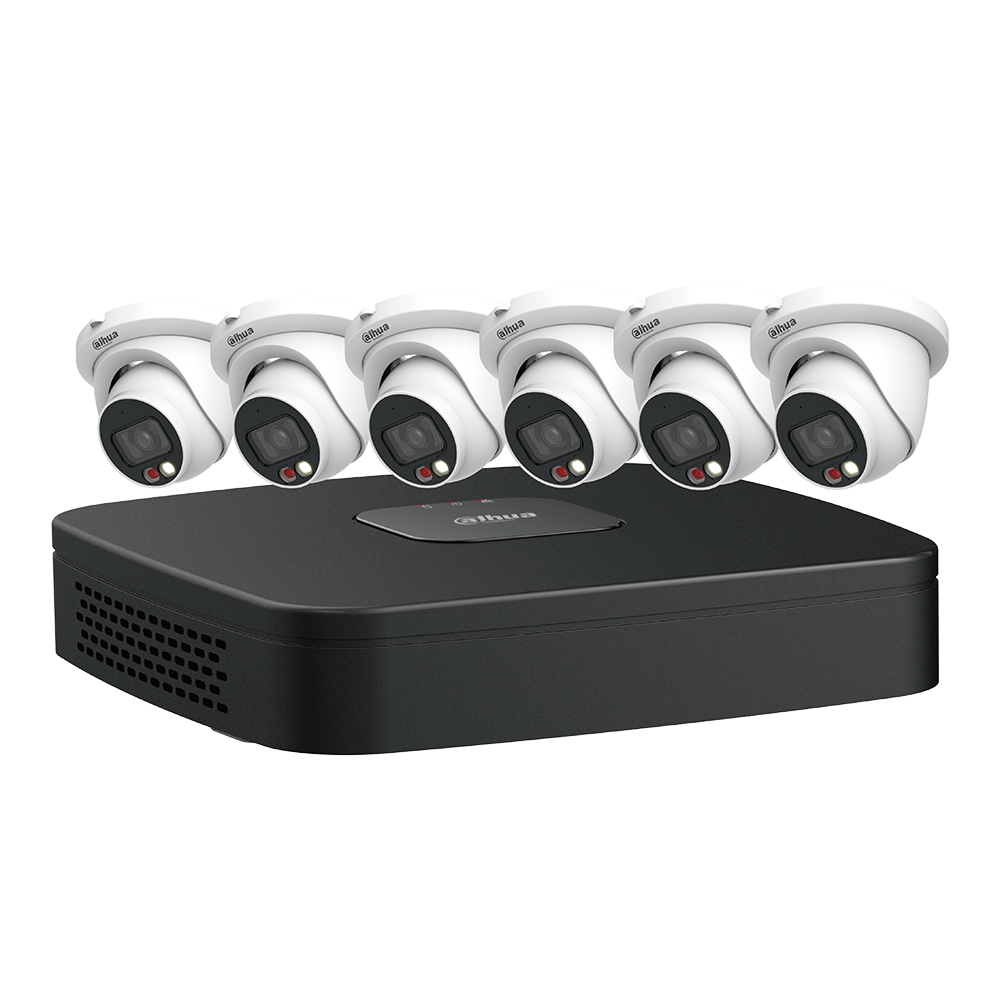

The 4MP Basic Night Color (VU-More Color) Security System provides all the components to quickly install, configure, and employ a complete video security solution. The IP cameras offer the clarity of 4MP video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug-and-Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.

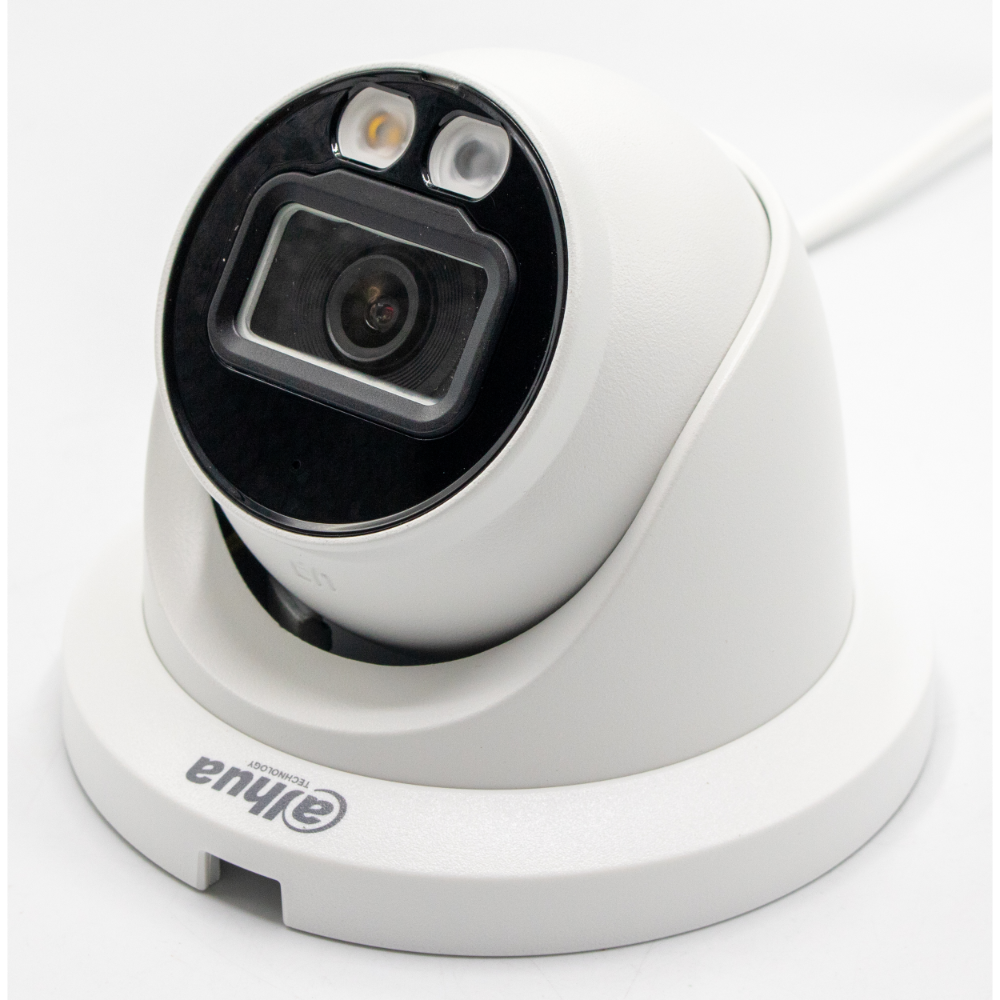

4MP Network Cameras
- 4MP at 30 fps Maximum Resolution,
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- 2.8 mm fixed lens
- Analytics+ Features – Smart Motion Detection, Perimeter Protection, Intelligent Search
- Basic Night Color Technology
- Smart Dual Illumination — IR and White Light
- True WDR (120 dB) and Day/Night (ICR)
- Built-in Microphone
- IP67 Ingress Protection
4K Network Video Recorder
- 2 TB Pre-installed Hard Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 80 Mbps Recording Bandwidth
- Up to 8MP Resolution for Preview and Playback
| Technical Specification | |
| N42DJS2 4MP Basic Night Color (VU-MORE Color) Network Eyeball Camera | |
| Camera | |
| Image Sensor | 1/3-in. CMOS |
| Effective Pixels | 2560 (H) × 1440 (V) |
| RAM/ROM | 128 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color, 30 IRE: 0.008 lux at F1.6 B/W, 30 IRE: 0.0008 lux at F1.6 0 lux (Illuminator On) |
| S/N Ratio | > 56 dB |
| IR Distance | 30 m (98.43 ft) (IR), 15 m (49.21 ft) (Warm Light) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) IR LED, One (1) Warm Light |
Pan/Tilt/Rotation
| Compression | Smart H.265+, Smart H.264+, H.264H, H.265, H.264, H.264B, MJPEG (Sub Stream Only) | |
| Streaming Capability | Two (2) Streams | |
| Resolution | 4 MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) | |
Frame Rate | Main Stream | 2688 × 1520 at 30 fps |
| Sub Stream | 704 × 480 at 30 fps | |
| Bit Rate Control | CBR/VBR | |
