N5168D124 - EOL Replacement: N568D124S
N5168D124 - EOL Replacement: N568D124S
N5168D124 - EOL Replacement: N568D124S

N5168D124 - EOL Replacement: N568D124S





Part number:
N5168D124
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

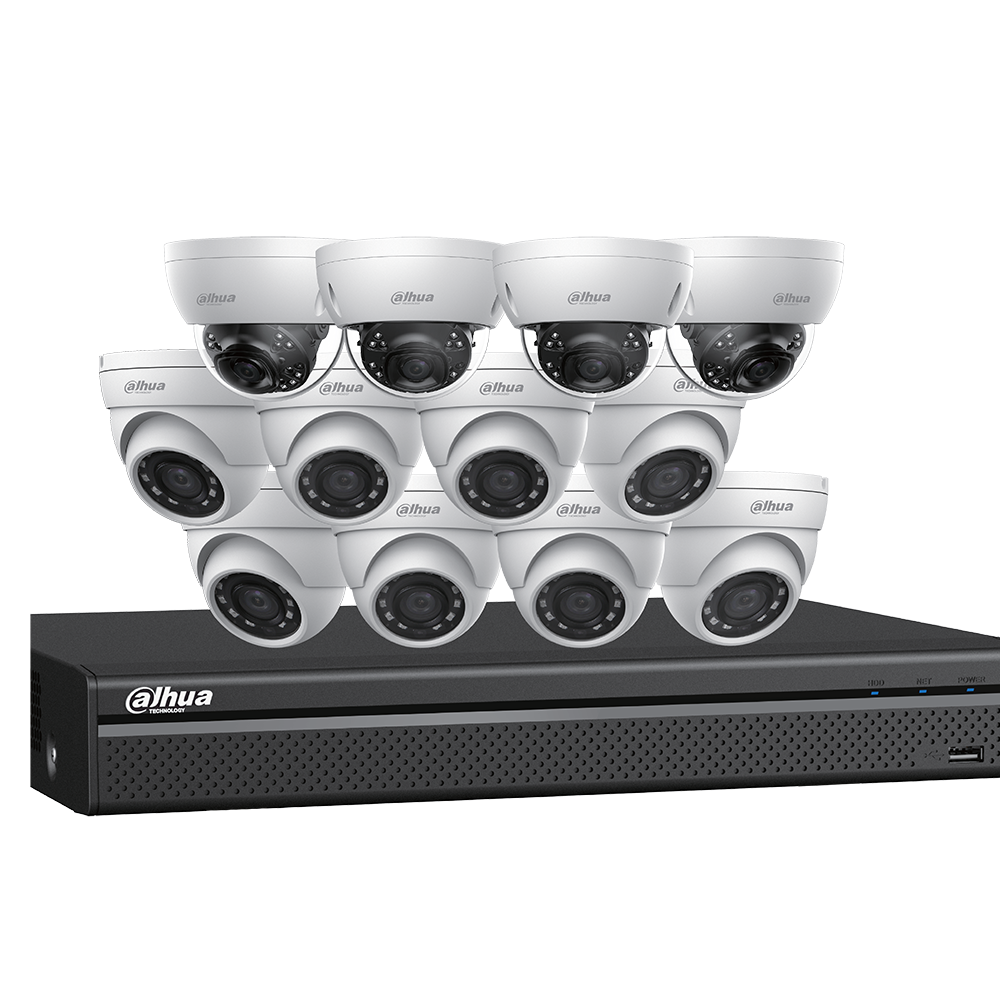

The Dahua Network Security System provide all the components to quickly install, configure, and employ a complete video surveillance solution. The IP cameras offer the clarity of 4K video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.



Features:

4 MP Network Cameras

  • 4 MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
  • Maximum IR Length 30 m (98 ft) with Smart IR
  • Intelligent Video System
  • IP67 Environmental Protection



4K Network Cameras

  • 8 MP at 15 fps Maximum Resolution, 2.8 mm Fixed Lens
  • Maximum IR Length 30 m (98 ft) with Smart IR
  • Intelligent Video System
  • IP67 Environmental Protection



4K Network Video Recorder

  • Embedded Quad-core Processor
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Up to 4 Channels of 8 MP or 16 Channels of 1080p Decoding
  • 320 Mbps Incoming Bandwidth

N41BK22 4 MP Network Camera



Camera

Image Sensor1/3-in. CMOS
Effective Pixels2688 (H) x 1520 (V), 4 MP
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual: 1/30 s to 1/100000 s
Minimum IlluminationColor: 0.08 lux at F2.0 (1/3 s, 30 IRE)
Color: 0.3 lux at F2.0 (1/30 s, 30 IRE)
0 Lux with IR on
S/N RatioMore than 65 dB
IR DistanceUp to 30 m (98.04 ft)
IR On/Off ControlAuto, Manual
IR LEDs12

Lens

Lens TypeFixed Lens
Mount TypeBoard-in
Focal Length2.8 mm
Max ApertureF2.0
Angle of ViewHorizontal: 104°
Vertical: 57°
Focus ControlFixed
Network
EthernetRJ-45 (10/100 Base-T)
ProtocolHTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,
UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
InteroperabilityONVIF Profile S & G, API
Streaming MethodUnicast, Multicast
Max. User Access10 Users /20 Users
Edge StorageNAS
Local PC for instant recording
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
Mobile Operating SystemIOS, Android
Vedio
CompressionSmart H.265+, H.265, Smart H.264+, H.264,
MJPEG (sub stream only)
Streaming CapabilityTwo (2) Streams
Resolution4 MP (2688 x 1520), 3 MP (2304 x 1296),
1080p (1920 x 1080), 720p (1280 x 720),
VGA (640 x 480), D1 (704 x 480), CIF (352 x 240)
Frame RateMain Stream4 MP at 20 fps or 3 MP at 30 fps
Sub StreamD1 at 30 fps
Bit Rate ControlCBR, VBR
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, True WDR (120 dB)
Gain ControlAuto, Manual
Noise Reduction3D DNR
Name
Description
Size
Downloads
File
Data Sheet
1.6mb
File
Quick Installation Guide
1mb
