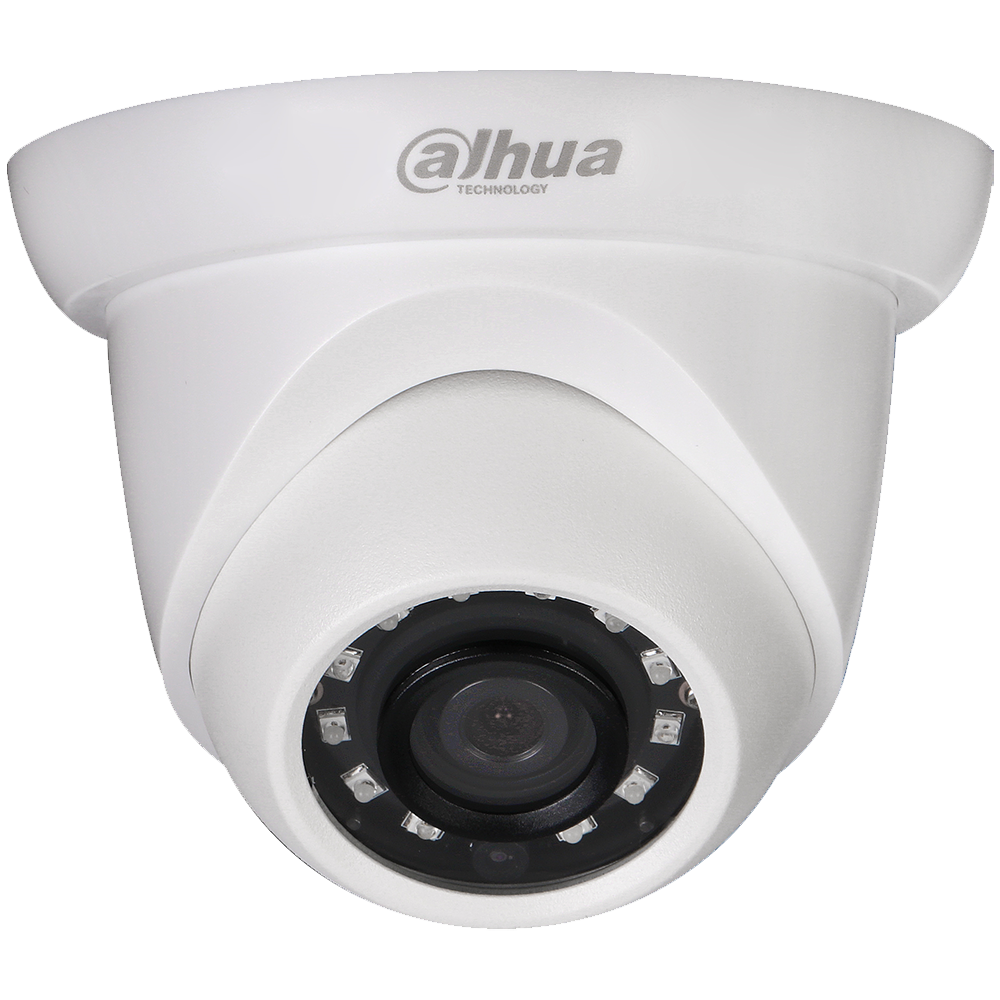

The Dahua 5 MP Pro Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality.
Features:
- 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
- Dual Stream Encoding with Smart H. 265+ and H.264 Dual Codecs
- 5 MP at 15 fps or 3 MP at 30 fps, Maximum Resolution
- Starlight Technology for Low Light Sensitivity
- 2.8 mm Fixed Lens
- True WDR (120 dB) and Day/Night (ICR)
- Maximum IR LED Length 30 m (98 ft) with Smart IR
- Intelligent Video System
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- PoE Support
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Image Sensor | 1/2.7-in. 5 MP Progressive-scan CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| RAM/ROM | 512 MB / 32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.009 lux at F1.6 (1/3 s,30 IRE) Color: 0.09 lux at F1.6 (1/30 s, 30 IRE) 0 lux at F1.6 with IR on |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | 12 |
Lens
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Angle of View | Horizontal: 96° Vertical: 70° |
| Focus Control | Fixed |
