Dahua - N53CB62 - 5MP Enhanced Starlight 2.8mm Bullet, IR, SMD+, Lite Series
Part number:
N53CB62
Price:

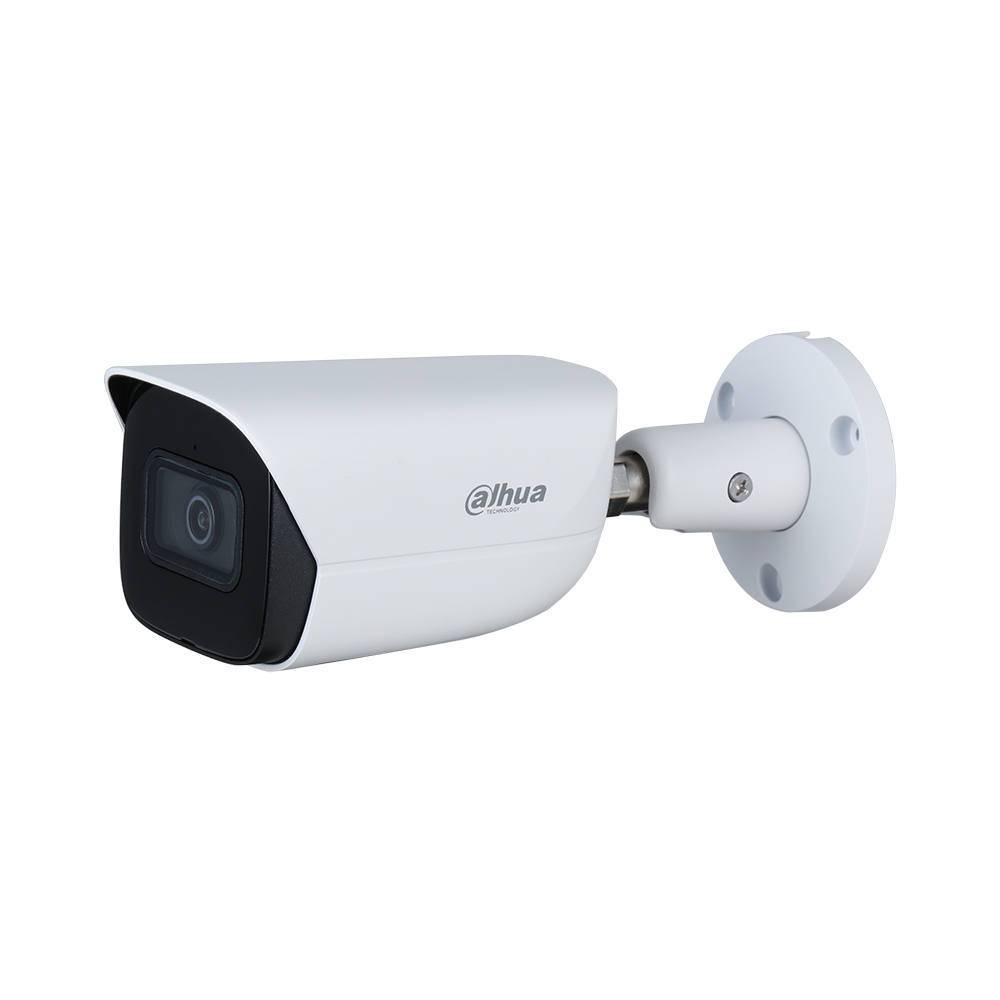

The Dahua 5MP Enhanced Starlight Network Bullet Camera is ideal for a host of diverse applications. The camera has Smart Motion Detection+ which improves alarm accuracy for intrusion and tripwire functions. The camera also has Enhanced Starlight, True Wide Dynamic Range, and IR illumination to allow the camera to operate in any lighting condition. The camera is part of Dahua’s ArcticPro camera series and is rated to IP67 allowing the camera to deliver high-quality and reliable video in the harshest environments.
Features:
- 1/2.7 in. 5MP Progress-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 5MP (2960 x 1668) at 30 fps, 2.8 mm Fixed Lens
- Enhanced Starlight Technology for Low-light Applications
- Analytics+ Function: Perimeter Protection, Smart Motion Detection+
- True Wide Dynamic Range (120 dB), Day/Night IR Cut Filter
- Maximum IR LED Distance of 50 m (164.04 ft)
- Built-in Microphone
- AI Scene Self-adaptation (AI SSA)
- ArcticPro Series Camera – Operational Down to -40 °C (-40 °F)
- IP67 Ingress Protection
- Five-year Warranty (when sold through an authorized Dahua dealer)
| Camera | ||||
| Image Sensor | 1/2.7-in. 5MP CMOS | |||
| Effective Pixels | 2960 (H) x 1668 (V) | |||
| RAM/ROM | 512 MB/128 MB | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | 1/3 s to 1/100,000 s | |||
| Minimum Illumination | Color: 0.005 lux at F1.4 B/W: 0.0005lux at F1.4 0 lux at F1.4(IR on) | |||
| S/N Ratio | > 56 dB | |||
| IR Distance | Up to 50.0 m (164.04 ft) | |||
| IR On/Off Control | Auto, Manual | |||
| IR LEDs | One (1) | |||
| Lens | ||||
| Lens Type | Fixed Focal | |||
| Iris Type | Fixed Aperture | |||
| Mount Type | M12 | |||
| Focal Length | 2.8 mm | |||
| Maximum Aperture | F1.4 | |||
| Angle of View | Horizontal: 111° Vertical: 58° Diagonal: 132° | |||
| Close Focus Distance | 1.1 m (3.61 ft) | |||
| DORI Distance1 | Detect | Observe | Recognize | Identify |
| 63.6 m (208.66 ft) | 25.40 m (83.33 ft) | 12.70 m (41.67 ft) | 6.40 m (21.00 ft) | |
| Installation Angle |
| Range | Pan: 0˚ to 360˚ Tilt: 0˚ to 90˚ Rotation: 0˚ to 360˚ |
| Video |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 5MP (2960 x 1668),4MP (2688 x 1520), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480),VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream | 5MP (2960 x 1668) at 20 fps |
| Sub Stream 1 | D1 (704 x 480) at 30 fps | |
| Sub Stream 2 | 1080p (1920 x 1080) at 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 3 Kbps to 8192 Kbps H.265: 3 Kbps to 8192 Kbps | |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zones, Rectangular) | |
| Image Rotation | 0°, 90°, 180°, 270° | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 Areas, Rectangular) | |
| Audio | |
| Built-in Microphone | Yes |
| Compression | G.711a, G.711Mu, G.726, PCM, G.723, AAC |
| Network | ||
| Ethernet | RJ-45 (10/100 Base-T) | |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP | |
| Interoperability | ONVIF (Profile S, G and T), CGI, P2P | |
| Auto Register | Support | |
| Streaming Method | Unicast/Multicast | |
| Maximum User Access | 20 Users (Max. Bandwidth: 64 Mbps) | |
| Edge Storage | Network Attached Storage (NAS), FTP, SFTP, SD Card Slot (Max. 256 GB) |
| Web Viewer | Microsoft Edge, Chrome |
| Management Software | DSS, DMSS |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Certifications |
| Safety | UL62368-1 CAN/CSA C22.2 No. 62368-1-14 |
| Electromagnetic Compatibility (EMC) | 47 CFR FCC Part 15, Subpart B |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) |
| Ingress Protection | IP67 |
| Environmental | |
| Casing | Metal |
| Dimensions | 192.70 mm x 70.50 x 66.40 mm (7.59 in. x 2.77 in. x 2.61 in.) |
| Net Weight | 0.59 kg (1.30 lb) |
| Gross Weight | 0.78 kg (1.72 lb) |
