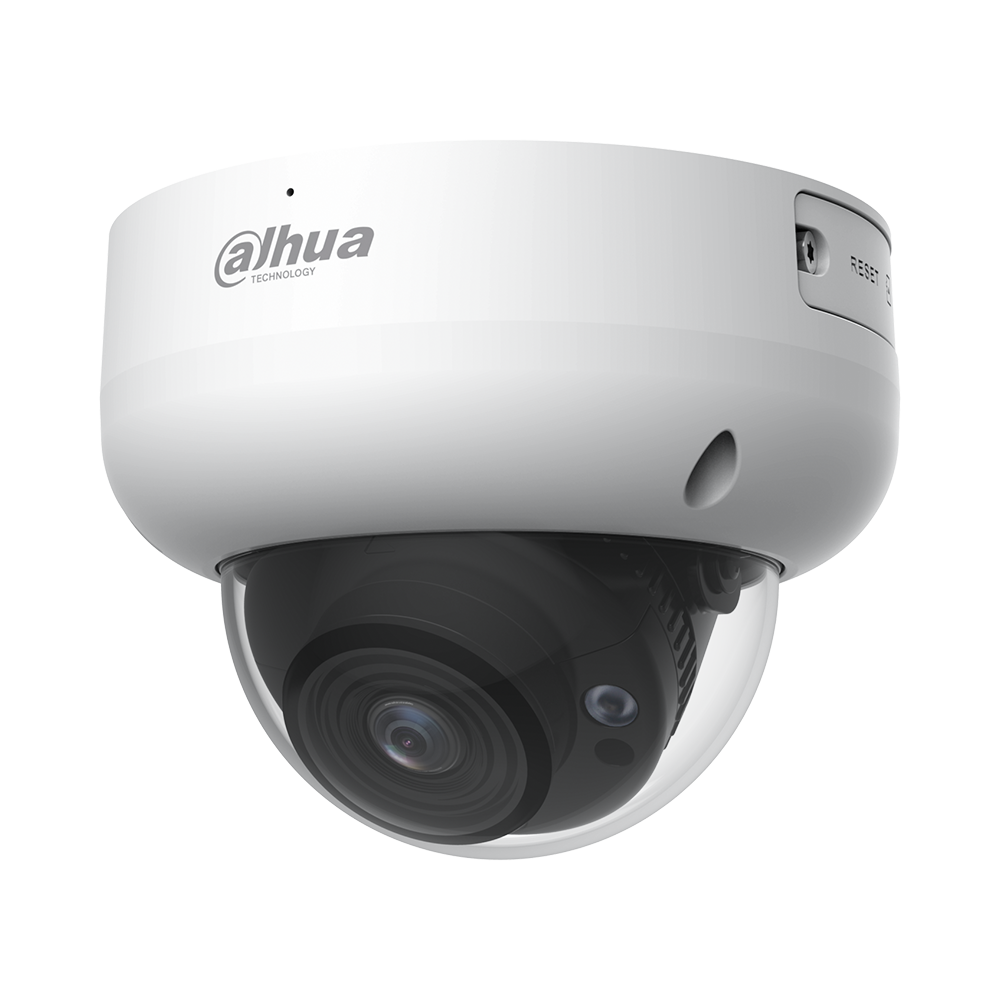

The Dahua 5MP Enhanced Starlight Network Dome Camera (Vari-focal) is ideal for a host of diverse applications. The camera has Smart Motion Detection+ which improves alarm accuracy for Tripwire and Intrusion functions. The camera also has Enhanced Starlight, True Wide Dynamic Range, and IR illumination to allow the camera to operate in any lighting condition. The camera is rated to IP67 allowing the camera to deliver high-quality and reliable video in the harshest environments.
Features:
- 1/2.7 in. 5MP Progress-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+ and Smart H.264+ Dual Codec
- 5MP (2960 x 1668) at 20 fps
- 2.7 mm to 13.5 mm Motorized Vari-focal Lens
- Enhanced Starlight Technology for Low-light Applications
- Analytics+ Function: Perimeter Protection, Smart Motion Detection+
- True Wide Dynamic Range (120 dB), Day/Night IR Cut Filter
- Maximum IR LED Distance of 40.0 m (131.23 ft)
- Built-in Microphone
- AI Scene Self-adaptation (AI SSA)
- IP67 Ingress Protection, IK10 Vandal Resistance
- Five-year Warranty*
| Technical Specification | |
| Camera | |
| Image Sensor | 1/2.7-in. 5MP CMOS |
| Effective Pixels | 2960 (H) x 1668 (V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.5 B/W: 0.0005lux at F1.5 0 lux at F1.5 (IR on) |
| S/N Ratio | > 56 dB |
| IR Distance | Up to 40.0 m (131.23 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
Lens
| Lens Type | Motorized Vari-focal | ||||
| Iris Type | Fixed Aperture | ||||
| Mount Type | M14 | ||||
| Focal Length | 2.7 mm to 13.5 mm | ||||
| Maximum Aperture | F1.5 | ||||
| Angle of View | Horizontal: 114° to 32° Vertical: 58° to 17° Diagonal: 138° to 36° | ||||
| Close Focus Distance | 0.80 m (2.62 ft) | ||||
| DORI Distance1 | Focus | Detect | Observe | Recognize | Identify |
| Wide | 64.00 m (209.97 ft) | 25.60 m (83.99 ft) | 12.80 m (41.99 ft) | 6.40 m (21.0 ft) | |
| Tele | 210.0 m (688.98 ft) | 84.0 m (275.60 ft) | 42.0 m (137.80 ft) | 21.0 m (68.90 ft) | |
Audio
| Built-in Microphone | Yes |
| Compression | G.711a, G.711Mu, G.726, PCM, G.723, AAC |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Interoperability | ONVIF (Profile S, G and T), CGI, P2P |
| Auto Register | Support |
| Streaming Method | Unicast/Multicast |
| Maximum User Access | 20 Users (Max. Bandwidth: 64 Mbps) |
| Edge Storage | Network Attached Storage (NAS), FTP, SFTP, SD Card Slot (Max. 256 GB) |
| Web Viewer | Microsoft Edge, Chrome |
| Management Software | DSS, DMSS |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Video
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 5MP (2960 x 1668),4MP (2688 x 1520), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480),VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream | 5MP (2960 x 1668) at 20 fps |
| Sub Stream 1 | D1 (704 x 480) at 30 fps | |
| Sub Stream 2 | 1080p (1920 x 1080) at 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 3 Kbps to 8192 Kbps H.265: 3 Kbps to 8192 Kbps | |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zones, Rectangular) | |
| Image Rotation | 0°, 90°, 180°, 270° (Supports 90°, 270° at 2688 x 1520 or lower) | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 Areas, Rectangular) | |
| Advanced Features | Smart IR, Smart-scene Adaptive (SSA), AFSA, AI SSA, Defog, Electronic Image Stabilization (EIS) | |
| Operating Conditions | –30° C to +60° C (–22° F to +140° F) Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
