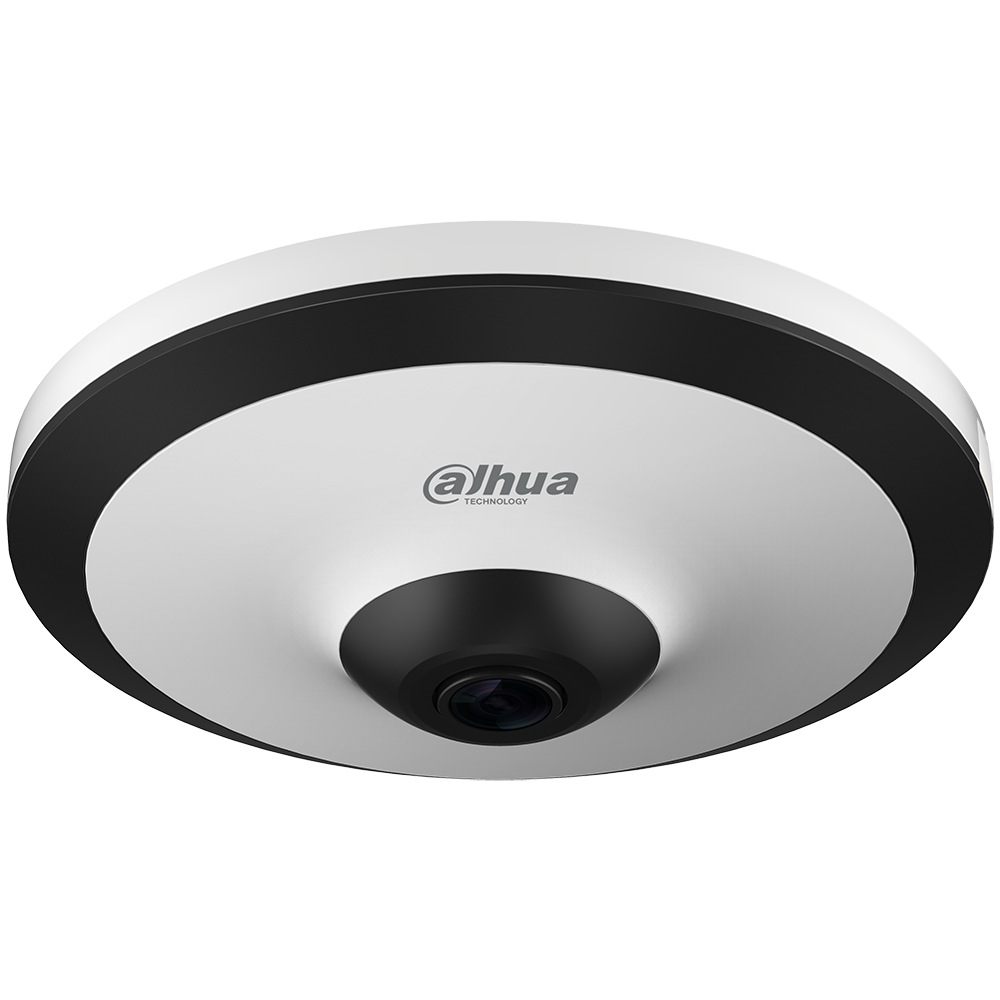

Dahua - N55BT5 - 5MP 360° Panoramic IR Fisheye Camera
Part number:
N55BT5
Price:
Experience the superior clarity of 5MP video and the range of a 360° panoramic fisheye camera. The camera delivers high quality images with crisp details and accurate color rendition, even under complex lighting conditions thanks to True WDR (120 dB). The compact camera replaces multiple single-sensor cameras providing a higher return on investment for your security dollars, making it an excellent choice for small to mid-size business applications.
Features:
- 1/2.7-in. 5MP Progressive-scan STARVIS CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 5 MP at 25 fps Maximum Resolution
- 1.4 mm Fixed Lens
- True Wide Dynamic Range (120 dB)
- Built-in Microphone
- Maximum IR LED Distance 10 m (33 ft)
- Intelligent Video System
Five-year Warranty (for products sold through authorized Dahua Dealers)
Camera
| Image Sensor | 1/2.7-in. 5 MP Progressive-scan STARVIS™ CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| RAM/ROM | 512 MB / 32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.006 lux at F2.0 (1/3 s, 30 IRE) Color: 0.02 lux at F2.0 (1/30 s, 30 IRE) 0 lux at F2.0 (IR on) |
| IR Distance | Up to 10 m (32.81 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
Lens
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 1.4 mm |
| Max. Aperture | F2.0 |
| Angle of View | Horizontal: 360° Vertical: 180° |
| Focus Control | Fixed |
