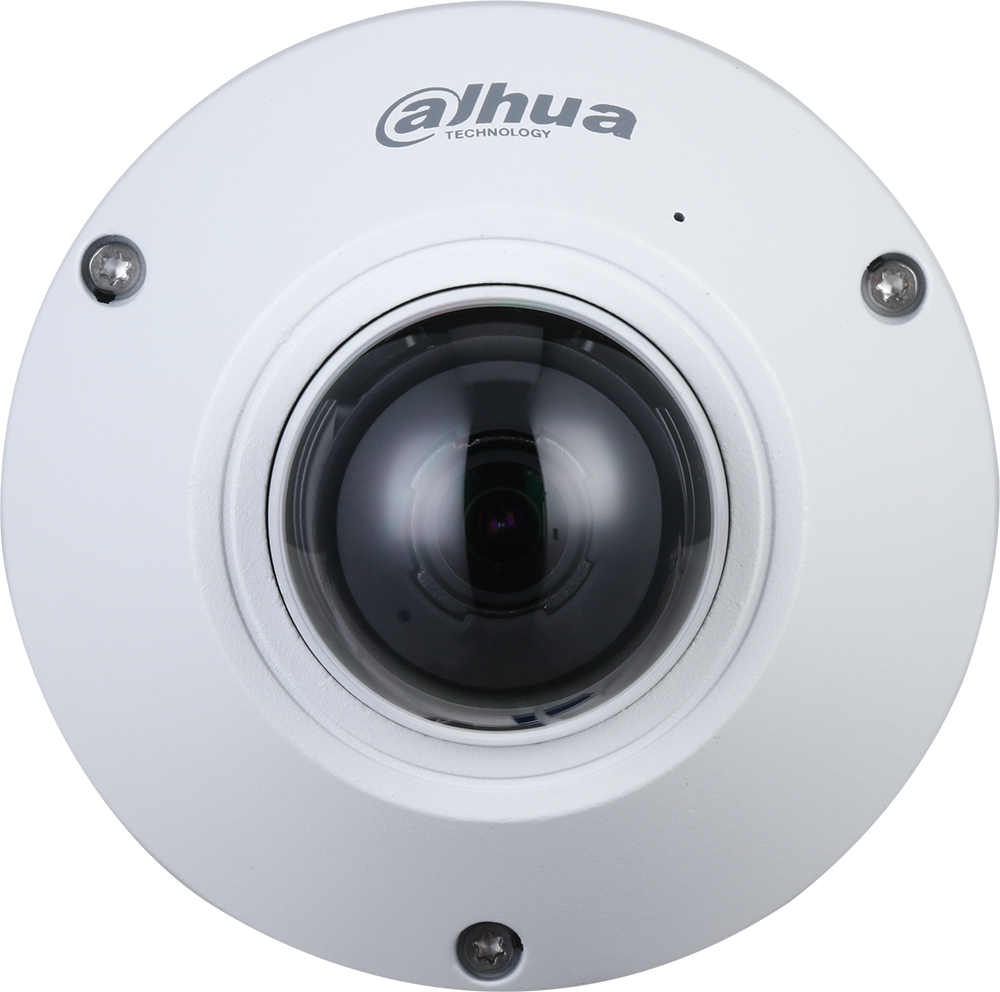

Dahua - N55CS5 - 5MP Fisheye, Pro Series
Part number:
N55CS5
Price:

Experience the superior clarity of 5MP video and the range of a 360° panoramic fisheye camera. The camera delivers high quality images with crisp details and accurate color rendition, even under complex lighting conditions thanks to True WDR (120 dB). The compact camera replaces multiple single-sensor cameras providing a higher return on investment for your security dollars, making it an excellent choice for small to mid-size business applications.



Features:

  • 1/2.7-in. 5MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 5 MP (2592 x 1944) at 30 fps Maximum Resolution
  • 1.4 mm Fixed Lens
  • True Wide Dynamic Range (120 dB)
  • Analytics+ Functions — People Counting and Heat Map
  • Built-in Microphone
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through authorized Dahua Dealers)
Image Sensor1/2.7-in. 5 MP Progressive-scan CMOS
Effective Pixels2592(H) x 1944(V)
RAM/ROM512 MB / 128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual; 1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.006 lux at F2.0
S/N Ratio> 56 dB
Lens TypeFixed
Mount TypeBoard-in
Focal Length1.4 mm
Max. ApertureF2.0
Angle of ViewHorizontal: 360°
Vertical: 180° Diagonal: 180°
Focus ControlFixed Detect
DORI¹ Distance(8 ppf) 28.0 m (91.90 ft)
RangePan: 0˚ to 355˚
Tilt: 0˚ to 55˚
 Rotation: 0˚ to 360˚
Video
CompressionSmart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B,
MJPEG (sub stream only)

Streaming CapabilityThree (3) Streams
Resolution5 MP (2592 x 1944), 3 MP (2048 x 1536),
UXGA (1600 x 1200), 1.3 MP (1280 x 960), 720p (1280 x 720),
 D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Effective Maximum Resolution (at 5MP), based on Dewarping Method
Dewarping MethodCeiling
Original2592 x 1944
Original + 2 Regions2912 x 2176
2912 x 1248

Original + 3 Regions2912 x 2176
Original + 4 Regions2912 x 2176
2912 x 2148

1 Panoramic + 1 Region2912 x 2176
1 Panoramic + 6 Regions2904 x 1928
1 Panoramic + 8 Regions2904 x 2106
