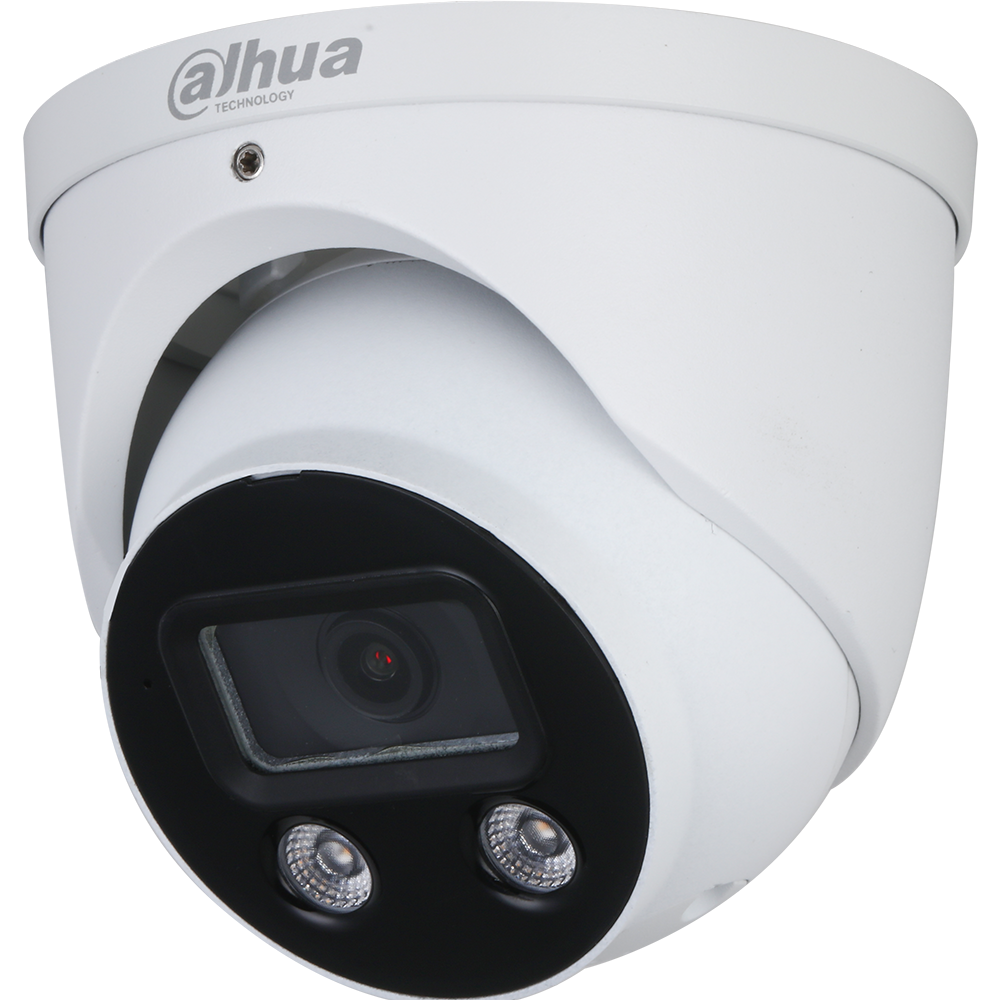

DAHUA - N55DU82 - 5MP 5-IN-1 EPOE NETWORK EYEBALL CAMERA, ENHANCED STARLIGHT
Part number:
N55DU82
Price:
The Dahua 5 MP 5-in-1 network camera offers multiple features working in tandem to assist with deterrence, low-light detection, active alarm, mask monitoring and two-way talk, the 5MP 5-in-1 camera is a multitasking machine for maximum video surveillance. The camera is ideal for a host of diverse applications — Enhanced Starlight, True Wide Dynamic Range, and Smart Dual illuminators allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
- 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 5 MP (2592 x 1944) at 30 fps, 2.8 mm Fixed Lens
- Analytics+ Functions — Mask Detection, Perimeter Protection with Active Deterrence, Smart Motion Detection, People Counting, and Face Detection
- Built-in Microphone and a Built-in Speaker
- Dual Smart Illumination — IR and White Light
- Enhanced Starlight Technology for Low-light Applications
- Enhanced Power and Data Transmission Distances (ePoE)
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Image Sensor | 1/2.7-in. 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| RAM/ROM | 128 MB / 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s | |
| Minimum Illumination | Color: 0.005 lux at F1.6 |
| 0 lux at F1.6 (with IR on) | |
| S/N Ratio | Greater than 56 dB |
| Illumination Distance | IR: 20.0 m (65.62 ft) |
| White Light: 40.0 m (131.23 ft) | |
| IR On/Off Control | Auto, Manual |
| Illuminators | IR: Two (2) LEDs |
| White Light: Two (2) | |
| Lens Type | Fixed-focal | |||
| Mount Type | M12 | |||
| Focal Length | 2.8 mm | |||
| Max. Aperture | F1.6 | |||
| Angle of View | Horizontal: 98° | |||
| Vertical: 71° | ||||
| Diagonal: 129° | ||||
| Iris Type | Fixed | |||
| Close Focus Distance | 1.10 m (3.60 ft) | |||
| Detect | Observe | Recognize | Identify | |
| DORI Distance² | (8 ppf) | (19 ppf) | (38 ppf) | (76 ppf) |
| 63.60 m | 25.40 m | 12.70 m | 6.40 m | |
| (208.66 ft) | (83.33 ft) | (41.67 ft) | (21.0 ft) |
| Range | Pan: 0° to 360° | |
| Tilt: 0° to 78° | ||
| Rotation: 0° to 360° | ||
| Video | ||
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, | |
| MJPEG (sub stream only) | ||
| Streaming Capability | Three (3) Streams | |
| 5 MP (2592 x 1944), 4 MP (2688 x 1520), 2560 x 1440, | ||
| Resolution | 3 MP (2304 x 1296), 1080p (1920 x 1080), | |
| 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), | ||
| VGA (640 x 480), CIF (352 x 240) | ||
| Main Stream | 5 MP (2592 x 1944) at 20 fps, | |
| Frame | 4 MP (2688 x 1520) at 30 fps, or | |
| 1080p (1920 x 1080) at 60 fps | ||
| Rate | Sub Stream 1 | D1 (704 x 480) at 30 fps |
| Sub Stream 2 | 1080p (1920 x 1080) at 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps | |
| H.265: 12 Kbps to 8192 Kbps | ||
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, | |
| Regional Custom | ||
| Gain Control | Auto, Manual, Gain Priority, Shutter Priority | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zones, Rectangular) | |
| Region of Interest | Off, On (4 Zones) | |
| Advanced Features | Smart IR, Defog | |
| Flip | 0°, 90°, 180°, 270° | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 Areas, Rectangular) | |
| Audio | ||
| Compression | PCM, G.711a, G.711Mu, G.726, AAC, G.723 | |
| Network | ||
| Ethernet | RJ-45 (10/100 Base-T) | |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, | |
| FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, | ||
| UPnP, NTP, ICMP, IGMP, 802.1x | ||
| Interoperability | ONVIF Profile S and G, CGI, Milestone; Genetec, | |
| SD, API | ||
| Maximum Users | 20 (total bandwidth: 80 Mbps) | |
| Auto Register | Support | |
| Streaming Method | Unicast / Multicast | |
| Maximum User Access | 20 Users (Total Bandwidth: 80 Mbps) | |
| Edge Storage | Network Attached Storage (NAS) | |
| SFTP, FTP | ||
| Micro SD Slot, maximum 256 GB | ||
| Web Viewer | IE (Versions 8, 9, and 11) | |
| Chrome, Firefox | ||
| Management Software | DSS, DMSS | |
| Mobile Operating System | IOS, Android | |
| Certifications | ||
| Safety | UL60950-1 | |
| CAN/CSA C22.2 No.60950-1-07 | ||
| EN62368-1 | ||
| Electromagnetic Compatibility | CFR 47 FCC Part 15 Subpart B | |
| (EMC) | Electromagnetic Compatibility Directive 2014/30/EU | |
| Interface | ||
| Input | One (1) Channel (RCA) | |
| plus one (1) built-in microphone | ||
| Audio | ||
| One (1) Channel (RCA) | ||
| Output | ||
| plus one (1) built-in speaker | ||
| Alarm | Input | One (1) Channel (5 mA, 3 VDC to 5 VDC) |
| Output | One (1) Channel (300 mA, 12 VDC) | |
| Electrical | ||
| Power Supply | 12 VDC, PoE (IEEE 802.3af, Class 0), or ePoE | |
| Basic | 12 VDC: 1.9 W | |
| Power | PoE: 2.4 W | |
| Consumption | Maximum | 12 VDC: 8.3 W |
| PoE: 8.7 W | ||
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), |
| Less than 95% RH | |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), |
| Less than 95% RH | |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | ø122.0 mm x 110.90 mm (ø4.80 in. x 4.37 in.) |
| Net Weight | 0.756 kg (1.67 lb) |
| Gross Weight | 0.940 kg (2.07 lb) |
| Analytics+ Functions | |
| • Detects human or vehicle violations using the | |
| following methods: | |
| Tripwire: a target crosses a defined line. | |
| Intrusion: a target enters or exits a defined | |
| Perimeter Protection with | perimeter. |
| • Monitors a combination of detection methods. | |
| Active Alarm | • Search and retrieve video based on target type. |
| • Configurable automatic response when an alarm is | |
| triggered: | |
| White-light illuminator activation. | |
| Siren activation. Includes 11 built-in siren sounds | |
| plus ability to record custom recordings. | |
| • Delivers accurate flow statistics from the following | |
| methods: | |
| Line Crossing: counts a person as they cross a | |
| People Counting | threshold in a defined direction. |
| Region: counts the number of people in a defined | |
| area. | |
| • Counts people simultaneously from four (4) threshold | |
| lines and four (4) defined regions³. | |
| Heat Map | Generates a visual representation of data. |
| Face Detection | Detects faces from the video image. Supports detecting, |
| tracking, capturing and selecting the best face image, | |
| and then outputs face snapshot. | |
| Face Mask Detection¹ | Detects a face then checks for the presence of a face |
| mask. Issues a built-message alerting a person to use | |
| a mask. | |
| • Differentiates between and classifies human and | |
| vehicle objects. | |
| Smart Motion Detection | • Filters false alarms due to leaves, lights, animals, and |
| other inconsequential objects. | |
| • Extracts human or vehicle objects from recorded | |
| video for quick target search and retrieval. | |
| • Tampering with the camera. | |
| Standard Features | • Error writing to an onboard Micro SD card. |
| • Error sending or receiving data over the network. | |
| • Unauthorized access to the camera. | |
| • IP Address Conflict | |
| Premium Features | |
| Missing Object | An object is missing from a designated area. |
| Abandoned Object | An object is placed in a designated area where no object |
| should be. | |
| Scene Change | A person or object moves the camera to change the |
| scene or covers the camera to obscure the scene. | |
| Fast Moving | Target exceeds a set speed when exiting a defined area |
| Parking Detection | Vehicle remains in a defined area without motion for a |
| set period of time. | |
| Crowd Gathering | Specified number of people remain inside a defined area |
| for a set time. | |
| Loitering Detection | Target is in motion inside a defined area longer than a |
| specified amount of time. | |
