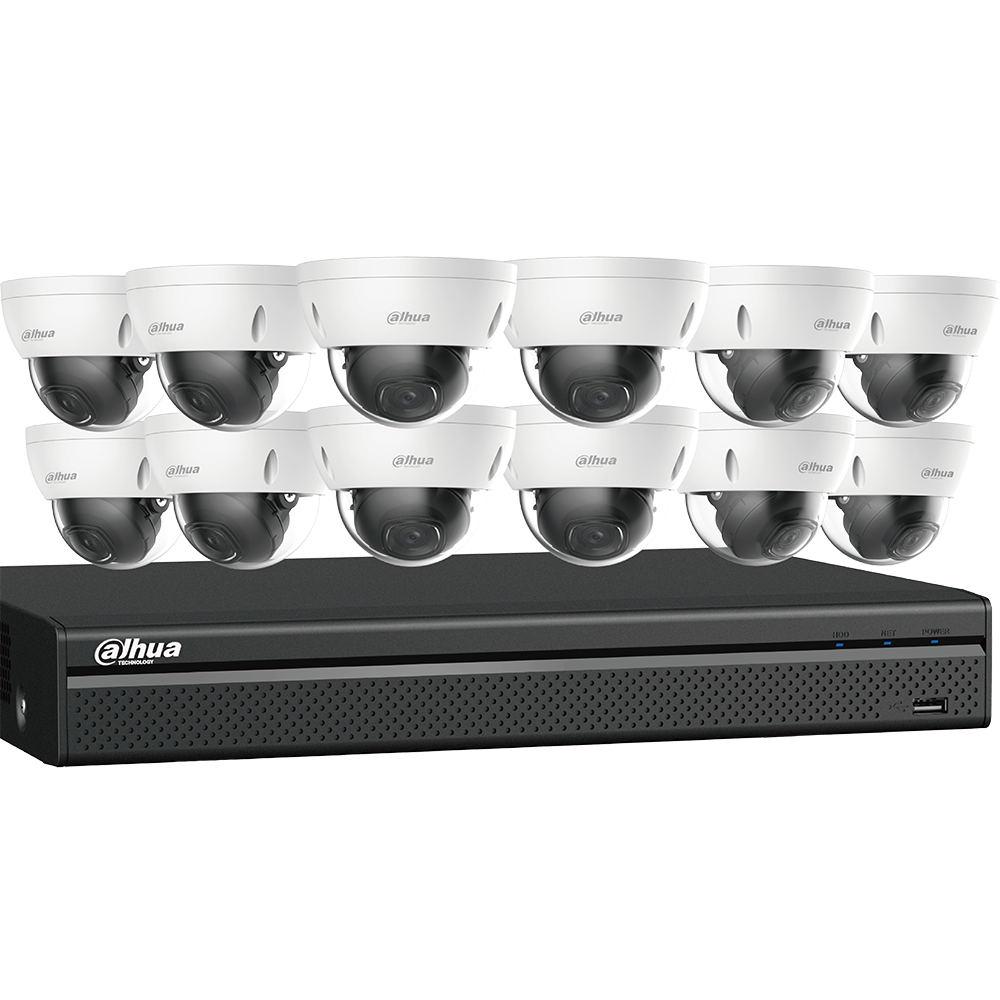

12 4K Dome Network Cameras with One (1) 16-channel 4K NVR
The Dahua Network Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The IP cameras offer the clarity of 4K video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.

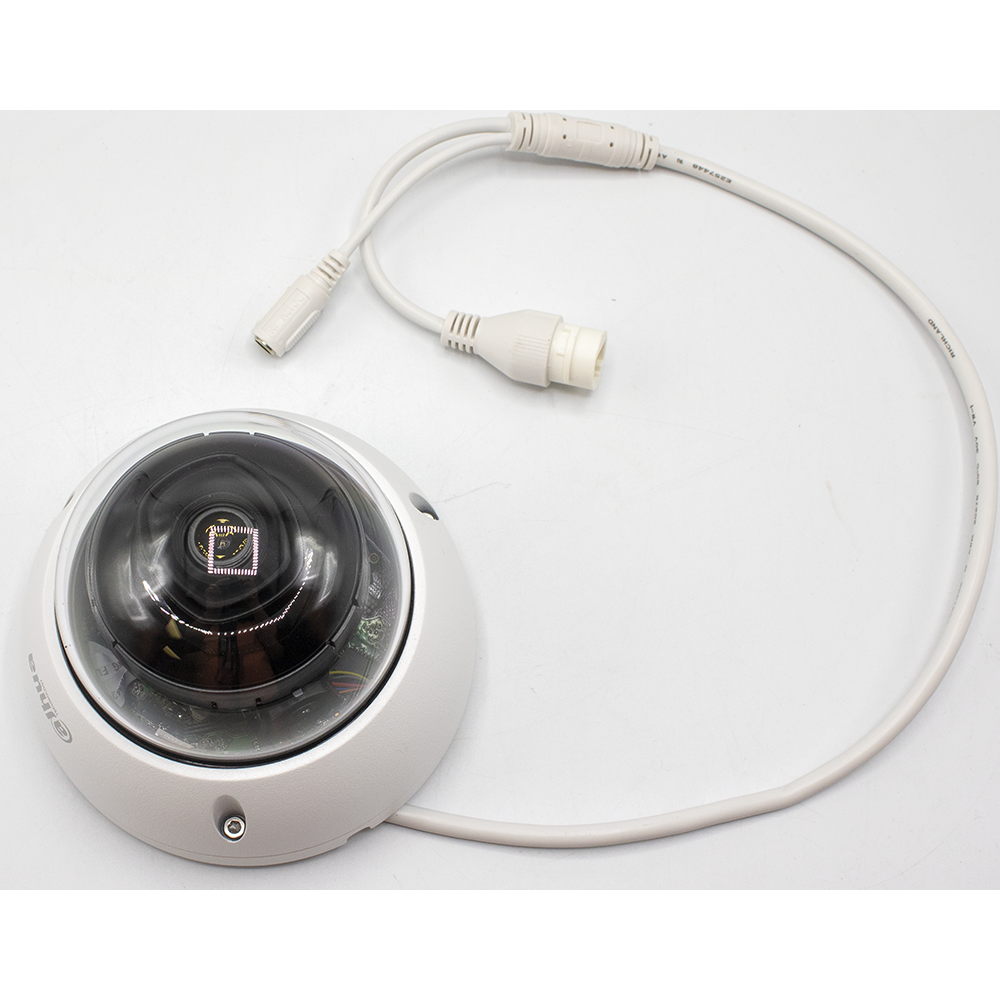

4K Network Cameras
- 8 MP (3840 × 2160) at 15 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Maximum IR Length 30 m (98 ft) with Smart IR
- Starlight Technology for Ultra Low-light Applications
- Intelligent Video System
- IP67 Environmental Protection and IK10 Vandal Resistance

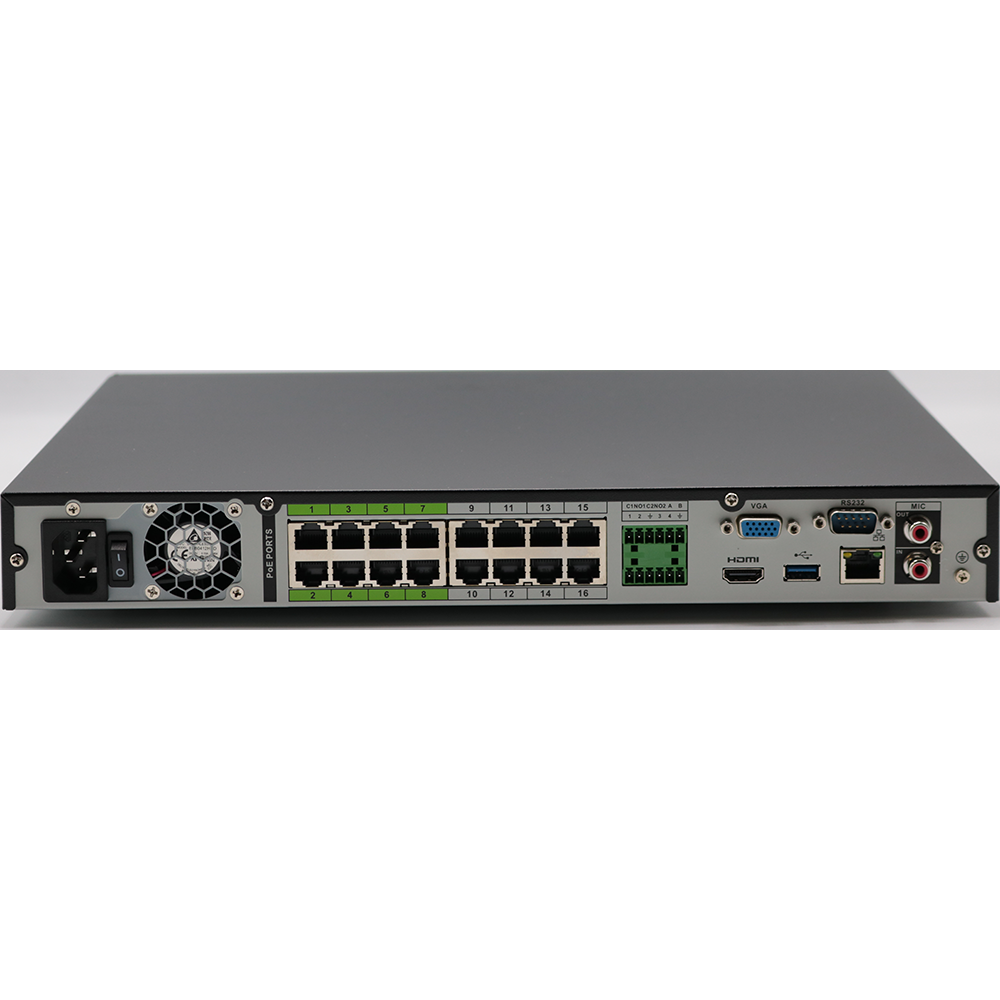

4K Network Video Recorder
- 4 TB Pre-installed Hard Disk Drive
- Smart H.265+ and Smart H.264+ Dual Codec
- Up to 8 MP Resolution for Preview and Playback
- Up to 12 Channels of 8 MP or 16 Channels of 1080p Decoding
- 320 Mbps Incoming Bandwidth
Camera
| Image Sensor | 1/2.7-in. 8 MP Progressive-scan CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 128 MB / 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.009 lux at F2.0 0 lux at F2.0 (IR on) |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3 |
Lens
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F2.0 |
| Angle of View | Horizontal: 106° Vertical: 56° Diagonal: 125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.30 ft) |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG (sub stream only) |
| Streaming Capability | Two (2) Streams |
| Resolution | 8 MP (3840 x 2160), 6 MP (3072 x 2048), 3072 x 1728, 2592 x 1944, 2688 x 1520, 3 MP (2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 × 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 3840 x 2160 at 15 fps or 2688 x 1520 at 30 fps |
| Sub Stream 1: D1 (704 x 480) at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps H.265: 12 Kbps to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, True WDR (120 dB) |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°, 90°, 180°, 270° (Supports 90°/270° at 1080p resolution or less) |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF (Profile S, G, T), CGI, P2P, Milestone, Genetec |
| Auto Register | Support |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 10 Users /20 Users |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP, Micro SD Slot, maximum 128 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SmartPSS, DSS, DMSS |
| Smart Phone | IOS, Android |
Name
Description
Size
Downloads
File
Datasheet
1.1mb
File
Quick Installation Guide
1mb
