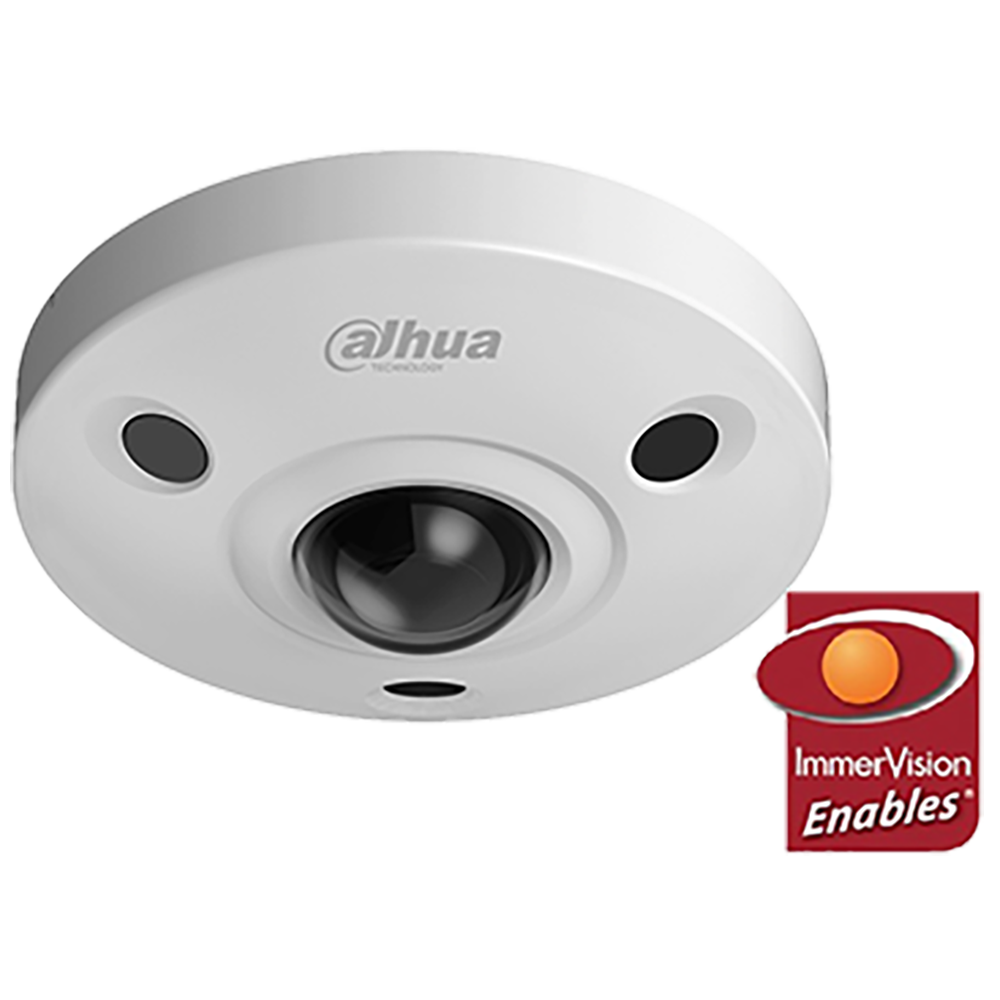

Dahua - N68BR4V - 6MP IR 360° Panamorph IP Fisheye
Part number:
N68BR4V
Price:
Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The STARVIS lowlight sensor combined with a fisheye lens provides a high-quality 360° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers multiple dewarping modes for different installations and configurations that enhance the video to fit a specific scene. The IP67 environmental protection rating and IK10 vandal resistance ensures the camera operates in the harshest environments.
Features:
- 1/1.8-in. 6MP Progressive-scan STARVIS CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and H.264 Dual Codec
- 6MP at 30 fps Maximum Resolution
- Multiple Dewarp Modes
- Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Intelligent Video System Analytics
- Maximum IR Distance up to 10 m (33 ft)
- IP67 Ingress Protection
- IK10 Vandal Resistance
- Micro SD Memory Slot
- Panamorph Lens RPL: B4QQV
Camera
| Image Sensor | 1/1.8-in. 6 MP STARVIS™ CMOS |
| Total Sensor Pixels | 3072(H) x 2048(V) |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 lux at F2.8 (1/3 s, 30 IRE) Color: 0.05 lux at F2.8 (1/30 s, 30 IRE) 0 lux at F2.8 with IR on |
| S/N Ratio | More than 50 dB |
| IR Distance | Up to 10 m (32.81 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
Lens
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 1.3 mm |
| Max. Aperture | F2.8 |
| Angle of View | Horizontal: 360° |
| Focus Control | Fixed |
Name
Description
Size
Downloads
File
Specification
0mb
File
Datasheet
0.6mb
File
Quick_Guide
0.8mb
