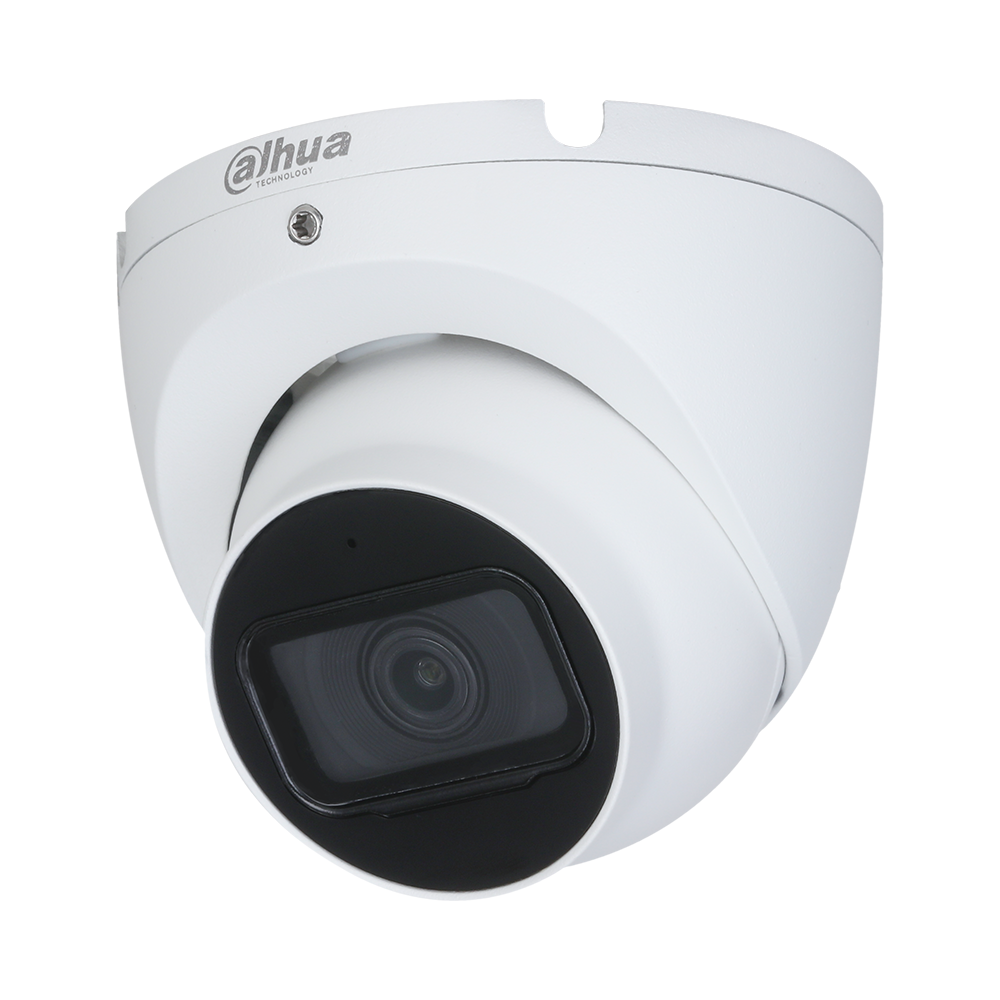

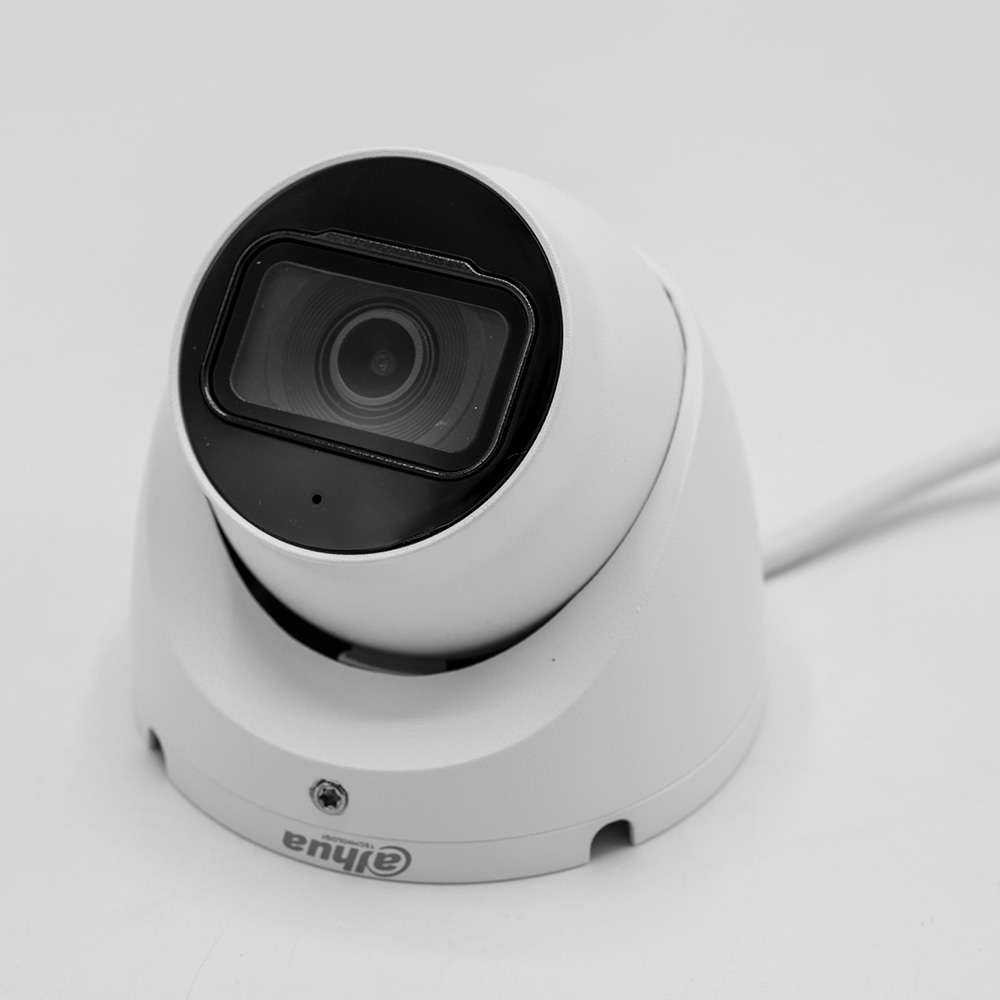

The Dahua 8MP Entry-level Viewing (E-VU) Camera Series offers high-resolution video in a compact and accessible package. The camera feeatures Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera's elegant blend of aesthetics combined with range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Features:
- 1/2.7-in. 8MP Progressive-scan CMOS Sensor
- Dual Stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codecs
- 8MP at 15 fps Maximum Resolution, 2.8 mm Fixed Lens
- DWDR and Day/Night (ICR)
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- Built-in Microphone
- Motion Detection
- ArcticPro Series Camera – Operational down to –40 °C (–40 °F)
- IP67 Ingress Protection
- Five-year Warranty (when sold by an authorized Dahua dealer)
Camera
| Image Sensor | 1/2.7-in. 8MP Progressive-scan CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| RAM/ROM | 256 MB / 16 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color, 30 IRE: 0.04 lux at F2.0 B/W, 30 IRE: 0.004 lux at F2.0 0 lux (Illuminator On) |
| S/N Ratio | > 56 dB |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
Lens
| Lens Type | Fixed-focal | |||
| Iris Type | Fixed | |||
| Mount Type | M12 | |||
| Focal Length | 2.8 mm | |||
| Maximum Aperture | F2.0 | |||
| Field of View | Horizontal: 105° Vertical: 56° Diagonal: 125° | |||
| Close Focus Distance | 1.0 m (3.28 ft) | |||
| DORI1 Distance | Detect | Observe | Recognize | Identify |
| 74.7 m (245.08 ft) | 29.9 m (98.10 ft) | 14.9 m (48.88 ft) | 7.5 m (24.61 ft) | |
Audio
| Compression | G.711A, G.711Mu, G.726, PCM |
| Input | Built-in Microphone |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG |
| Resolution | 3840 × 2160, 3072 × 2048, 3072 ×1728, 2592 × 1944, 2688 × 1520, 3MP (2048 × 1536); 2304 × 1296, 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 kpbs to 8192 Kbps H.265: 12 kpbs to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight | BLC, HLC, DWDR |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP, FTIP, DHCP, DNS, DDNS, NTP, Multicast |
| Interoperability | ONVIF (Profile S, T), CGI, P2P, Milestone, Genetec, SDK, API |
| Max. User Access | 6 (Total Bandwidth: 48 MB) |
| Edge Storage | FTP |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | DMSS |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating and Importing X.509 Certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade |
