1/2.7-in. 8MP CMOS, 8MP VU-MORE COLOR, Basic Night Color Eyeball 2.8mm, WDR (120dB), H.265/H.264, 20fps@8MP, 2.8mm/F1.6 Fixed lens, LED Distance 98ft, IR Distance 98ft, Micro SD, Max. 256GB, Built-in Mic, IP67, DC12V, PoE, Smart Dual-illuminators, Perimeter Protection, Smart Motion Detection+, White-light LEDs activate on motion

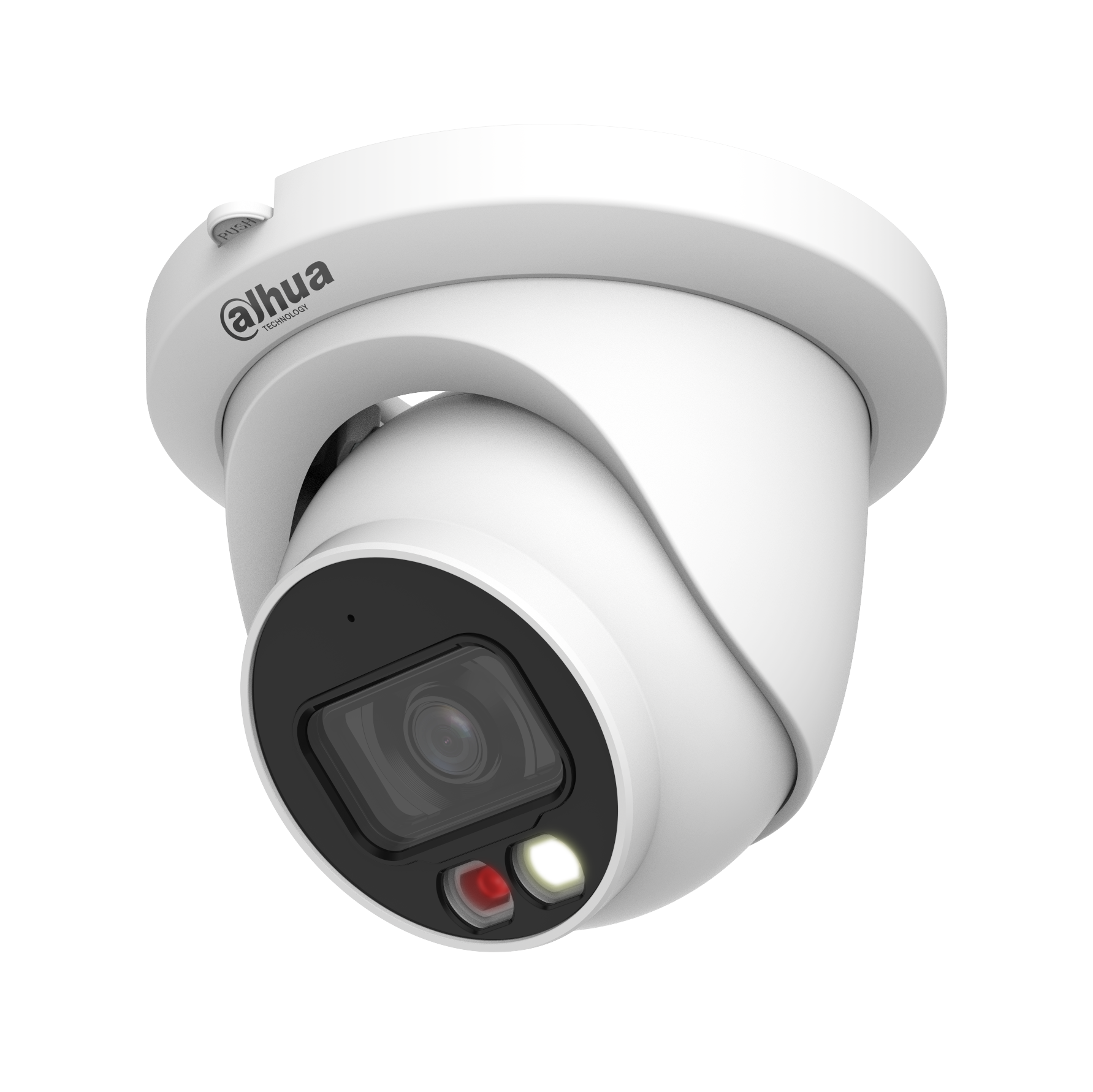

The Dahua Basic Night Color (VU-MORE Color) camera offers multiple features such as motion detection and Smart Dual Illumination to provide deterrence, overtness, and full-color video. The camera provides increased color viewing at night for a variety of small to mid-size applications at an affordable price.
Features:
- 1/2.7-in. 8MP Progressive-scan CMOS Sensor
- 8MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
- Analytics+ Function – Perimeter Protection and Smart Motion Detection+
- Dual Stream Encoding
- Smart Dual Illumination — IR and White Light
- Smart H.265+ and Smart H.264+ Dual Codecs
- True WDR (120 dB) and Day/Night (ICR)
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- IP67 Ingress Protection
- Five-year Warranty (when bought through an authorized Dahua Dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/2.7-in. CMOS |
| Effective Pixels | 3840 (H) × 2160 (V), 8MP |
| Scanning System | Progressive |
| RAM/ROM | 128 MB/128 MB |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | 0.008 lux at F1.6 (Color, 30 IRE) 0.0008 lux at F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| IR Distance | 30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light) |
| IR On/Off Control | Auto; Manual |
| Illuminators | One (1) IR LED One (1) Warm Light |
Lens
| Lens Type | Fixed-focal | ||||
| Iris Type | Fixed | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Maximum Aperture | F1.6 | ||||
| Angle of View | Horizontal | 111° | |||
| Vertical | 58° | ||||
| Diagonal | 132° | ||||
| Close Focus Distance | 1.5 m (4.92 ft) | ||||
| DORI1 Distance | Detect | O | bserve | Recognize | Identify |
| 84.8 m (278.22 ft) | 3 (11 | 3.9 m 1.22 ft) | 17.0 m (55.77 ft) | 8.5 m (27.89 ft) | |
Network
| Compression | Smart H.265+, Smart H.264+, H.264H, H.265, H.264, H.264B, MJPEG (Only supported by the sub stream) | |
| Streaming Capability | Two (2) Streams | |
| Resolution | 8MP (3840 x 2160), 6MP (3072 x 2048), 4MP (2688 × 1520), 3MP (2048 × 1536), 1080p (1920 × 1080), 1.3M(1280 × 960), 720p (1280 × 720), VGA (640 × 480), CIF (352 × 240) | |
| Frame Rate | Main Stream | 3840 × 2160 at 20 fps, 2688 x 1520 at 30 fps |
| Sub Stream | 704 × 480 at 20 fps | |
| Bit Rate | H.264: 32 kbps to 6144 kbps H.265: 12 kbps to 6144 kbps | |
| Bit Rate Control | CBR, VBR | |
| Day/Night | Auto (ICR); Manual | |
| BLC Mode | BLC , HLC, WDR (120 dB) | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 3DNR | |
| Motion Detection | Off, On (4 Zones, Rectangle) | |
| Region of Interest | Off, On (4 Zones) | |
| Smart IR | Supported | |
| Image Rotation | 0°, 90°, 180°, 270° (90°, 270° with 2688 x 1520 resolution and lower) | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 Areas, Rectangle) | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multcast, ICMP, IGMP |
| Interoperability | ONVIF (Profile S, Profile T), CGI, P2P, SDK, API |
| Maximum User Access | 20 (Total bandwidth: 48 M) |
| Edge Storage | NAS, FTP, SFTP, Micro SD Card (Maximum 256 GB) |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | DSS, SmartPSS Lite, DMSS |
| Mobile Operating System | iOS, Android |
| Cyber Security | Configuraton Encrypton, Trusted Executon, Digest, Security Logs, WSSE, Account Lockout, Syslog, Video Encrypton, 802.1x, IP/MAC Filtering, HTTPS, Trusted Upgrade, Trusted Boot, Firmware Encrypton, Generating and Importing X.509 Certifcaton |
