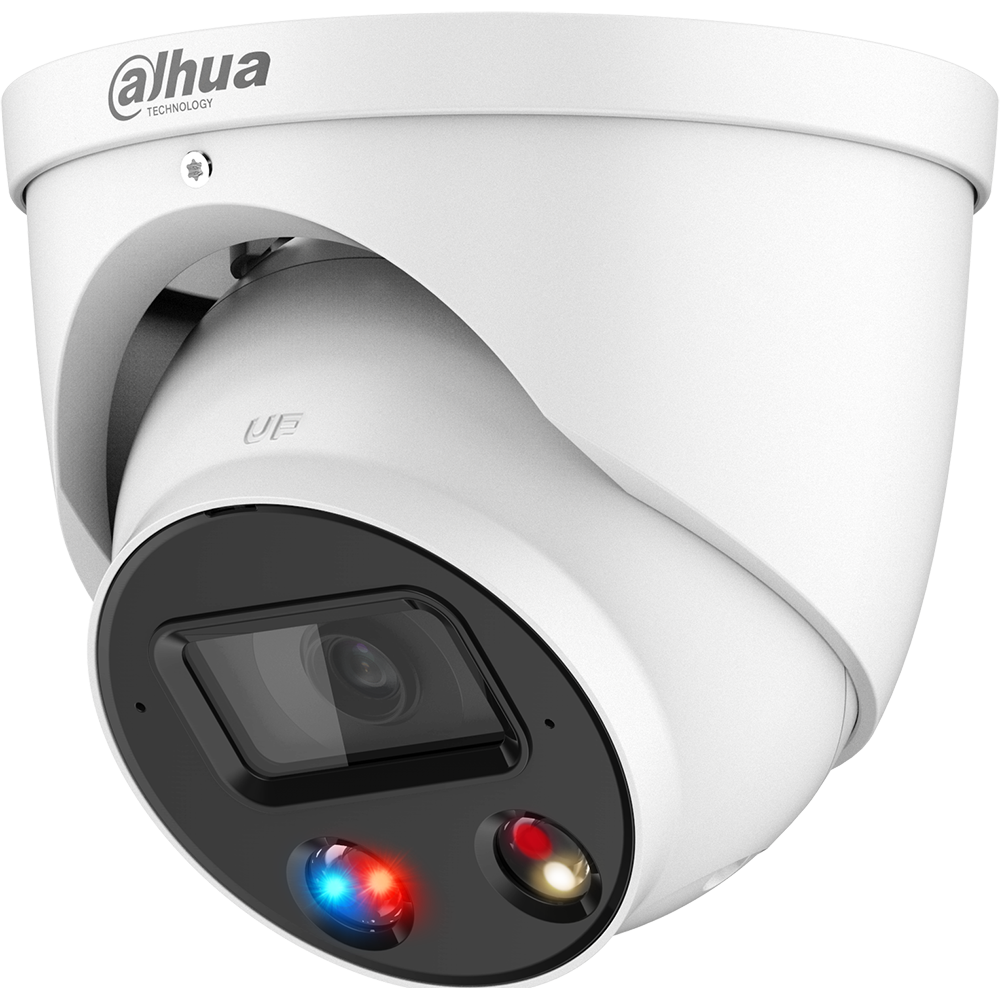

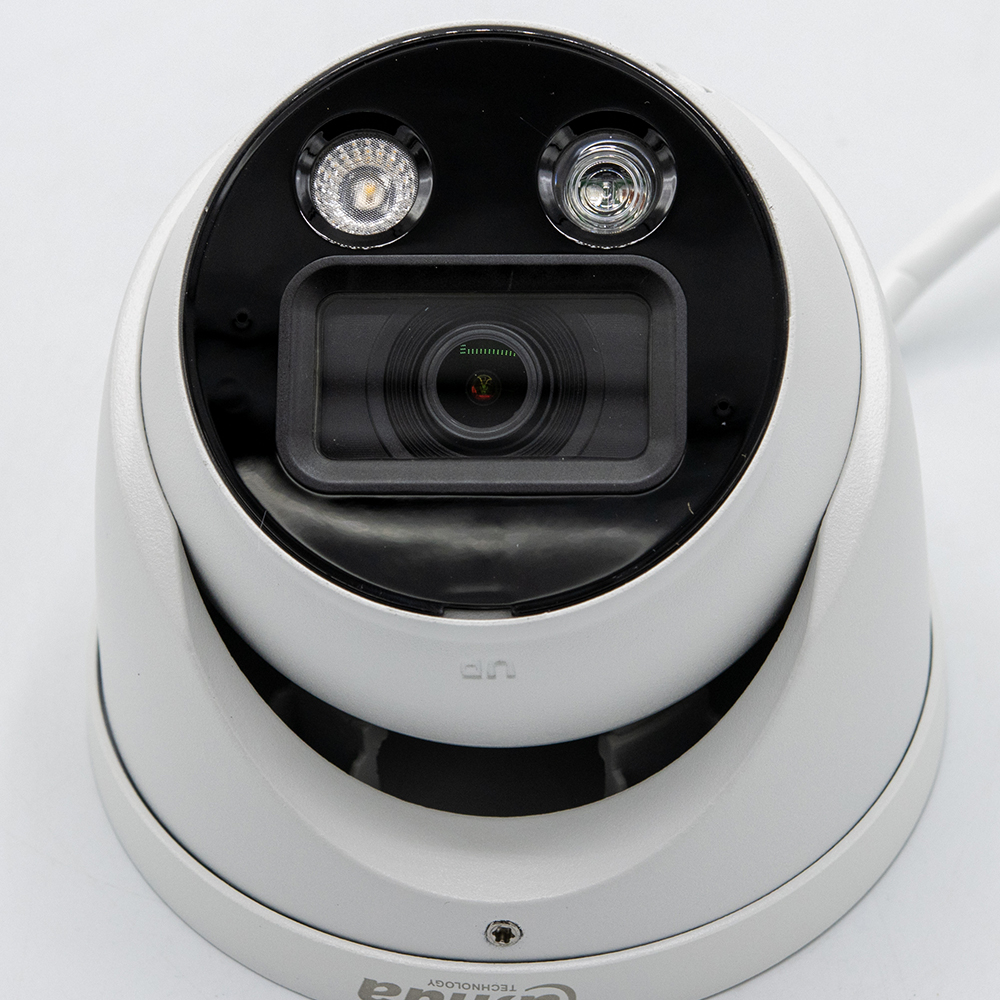

The Dahua Three-in-One Camera (TiOC) offers multiple features working in tandem to assist with deterrence and low-light detection while delivering high-resolution video images. The camera also features Perimeter Protection and Smart Motion Detection that offer accurate analytics. The camera is ideal for a host of diverse applications —Enhanced Starlight Technology, True Wide Dynamic Range, and Smart Dual illuminators allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
WizSense Series devices combine Dahua’s powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price.
Features:
Camera | |
Image Sensor | 1/2.8-in. 8MP CMOS |
Effective Pixels | 3840 (H) x 2160 (V) |
RAM/ROM | 128 MB / 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
Minimum Illumination | Color: 0.004 lux at F1.0 (30 IRE) B/W: 0.0004 lux at F1.0 (30 IRE) 0 lux at F1.0 (with illuminators on) |
S/N Ratio | Greater than 56 dB |
Illumination Distance | IR: 30.0 m (98.43 ft) White Light: 30.0 m (98.43 ft) |
IR On/Off Control | Auto, Manual |
Illuminators | IR: One (1) LED White Light: One (1) LED |
Lens
Camera | |
Image Sensor | 1/2.8-in. 8MP CMOS |
Effective Pixels | 3840 (H) x 2160 (V) |
RAM/ROM | 128 MB / 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
Minimum Illumination | Color: 0.004 lux at F1.0 (30 IRE) B/W: 0.0004 lux at F1.0 (30 IRE) 0 lux at F1.0 (with illuminators on) |
S/N Ratio | Greater than 56 dB |
Illumination Distance | IR: 30.0 m (98.43 ft) White Light: 30.0 m (98.43 ft) |
IR On/Off Control | Auto, Manual |
Illuminators | IR: One (1) LED White Light: One (1) LED |
Network
Ethernet | RJ-45 (10/100 Base-T) |
Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
Interoperability | ONVIF Profile S, G, T; CGI, Milestone; P2P |
Streaming Method | Unicast / Multicast |
Maximum User Access | 20 Users (Total Bandwidth: 72 Mbps) |
Edge Storage | Network Attached Storage (NAS) SFTP, FTP Micro SD Slot, maximum 256 GB |
Web Viewer | IE (Version 8, 9, and 11), Chrome, Firefox |
Management Software | DSS, DMSS |
Mobile Operating System | iOS, Android |
Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Video
Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only) | |
Streaming Capability | Three (3) Streams | |
Resolution | 8MP (3840 x 2160), 6MP (3072 x 2048), 5MP (3072 x 1728), 2592 x 1944, 4MP (2688 x 1520), 3MP(2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | |
Frame Rate | Main Stream | 8MP (3840 x 2160) at 30 fps |
Sub Stream 1 | D1 (704 x 480) at 30 fps | |
Sub Stream 2 | 1920 x 1080 at 30 fps | |
Bit Rate Control | CBR/VBR | |
Bit Rate | H.264: 3 kbps to 20480 kbps H.265: 3 kbps to 20480 kbps | |
Day/Night | Auto (ICR), Color, B/W | |
BLC Mode | BLC, HLC, True WDR (120 dB), SSA | |
White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
