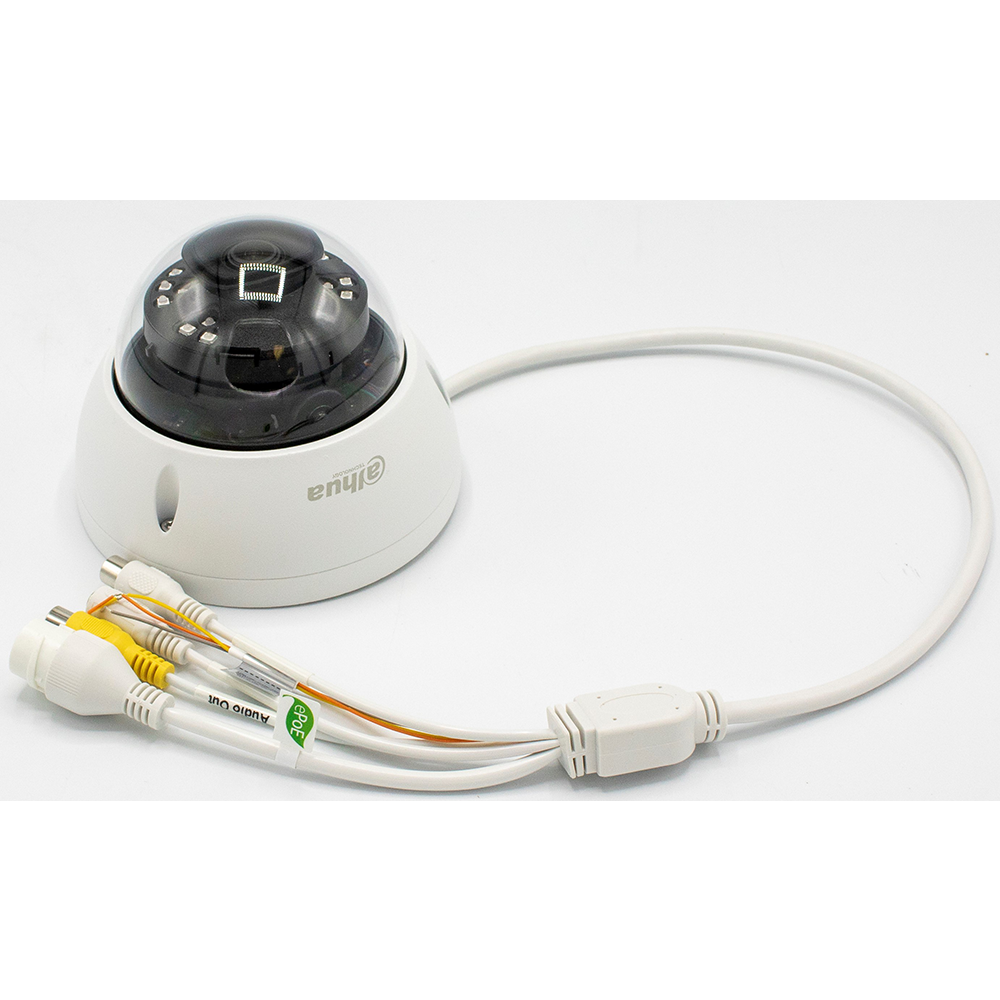

The 4K camera features an advanced 1/2.5-in. Progressive-scan imager with a fixed lens. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.
Dahua’s innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems. For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed. For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters.
Features:
- 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
- Triple Stream Encoding
- Smart H.265+ and H.264 Dual Codecs
- 8 MP at 15 fps or 3 MP at 30 fps Maximum Resolution
- 4 mm Fixed Lens
- Enhanced Power and Data Transmission Distances with ePoE
- True WDR (120 dB) and True Day/Night (ICR)
- Maximum IR LED Length 30 m (98 ft) with Smart IR
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Image Sensor | 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 512 MB/32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.06 lux at F1.6 (1/3 s, 30 IRE) Color: 0.3 lux at F1.6 (1/30 s, 30 IRE) 0 lux at F1.6 (IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 30 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | 18 |
Lens
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 4 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 88° Vertical: 48° |
| Focus Control | Fixed |
| Close Focus Distance | 1.70 m (5.58 ft) |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920) 3 MP (2048 x 1536), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream: | 8 MP at 15 fps or 3 MP at 30 fps |
| Sub Stream 1: | D1 at 30 fps | |
| Sub Stream 2: | 1080p at 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 24K to 10240 Kbps H.265: 14K to 9984 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, True WDR (120 dB) | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual | |
| Gain Control | Auto, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zones, Rectangular) | |
| Region of Interest | Off, On (4 Zones) | |
| Smart IR | Support | |
| Digital Zoom | 16x | |
| Flip | 0°, 90°, 180°, 270° | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | Network Attached Storage (NAS) Local PC for Instant Recording Micro SD Slot, maximum 128 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SmartPSS, DSS |
| Smart Phone | IOS, Android |
