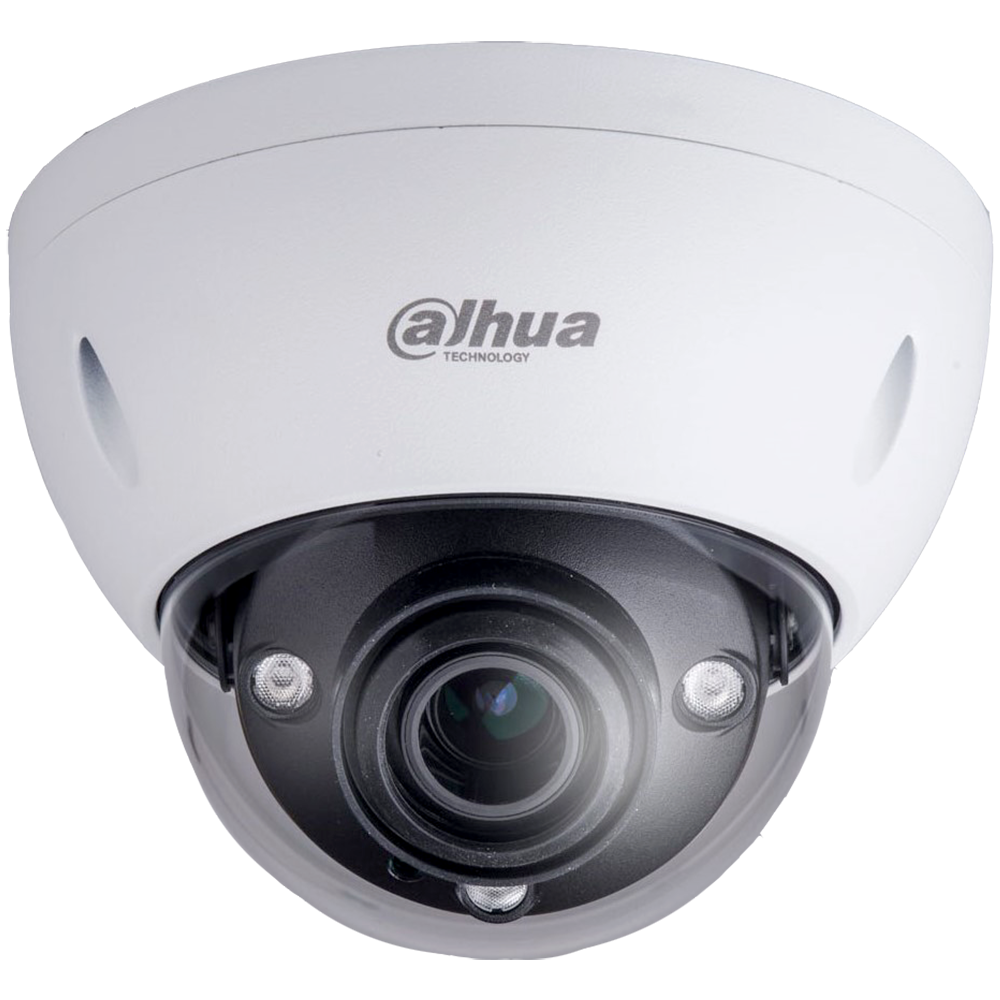

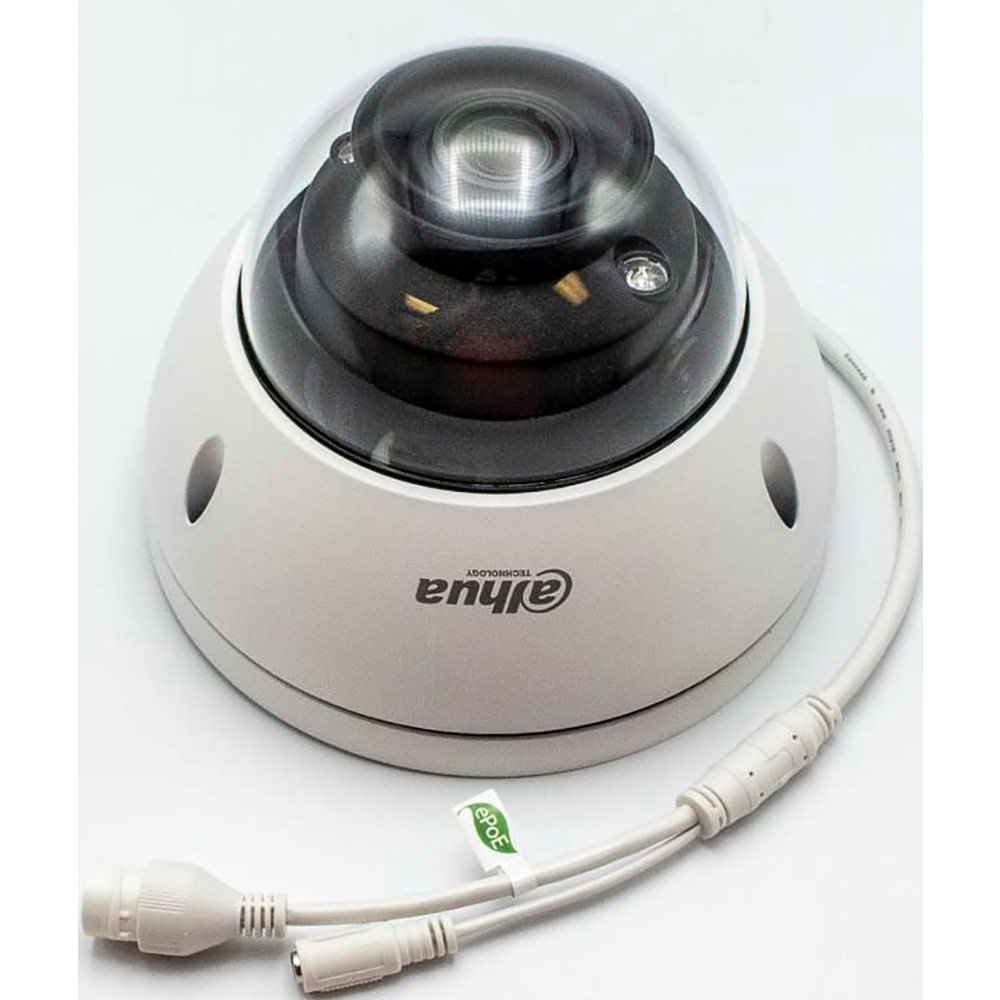

Dahua - N85CL5Z - 4K Ir Vari Focal Epoe Dome
Part number:
N85CL5Z
Price:
The 4K camera features an advanced 1/2.5-in. Progressive-scan STARVIS™ CMOS imager with a motorized optical zoom lens. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.
Features:
- 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
- Dual Stream Encoding
- Smart H.265+ and H.264+ Dual Codecs
- 8 MP at 15 fps, 3 MP at 30 fps
- 2.7 mm to 12 mm Motorized Optical Zoom Lens
- Enhanced Power and Data Transmission Distances with ePoE
- True WDR (120 dB) and True Day/Night (ICR)
- Maximum IR LED Length 50 m (164 ft) with Smart IR
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Image Sensor | 1/2.5-in. 8 MP Progressive-scan CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 512 MB/32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | d Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.05 lux at F1.4 (1/3 s, 30 IRE) Color: 0.2 lux at F1.4 (1/30 s, 30 IRE) 0 lux at F1.4 (IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 50 m (164.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3 |
Lens
| Lens Type | Motorized, Auto Iris (DC) |
| Mount Type | Board-in |
| Focal Length | 2.7 mm to 12 mm |
| Maximum Aperture | F1.4 |
| Angle of View | Horizontal: 110° to 40° Vertical: 58° to 23° |
| Optical Zoom | 4x |
| Focus Control | Motorized |
| Close Focus Distance | 0.30 m (0.98 ft) |
Installation Angle
| Range | Pan: 0˚ to 355˚ Tilt: 0˚ to 65˚ Rotation: 0˚ to 355˚ |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920) 3 MP (2048 x 1536), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 8 MP at 15 fps or 3 MP at 30 fps |
| Sub Stream 1: D1 at 30 fps | |
| Sub Stream 2: 720p at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24 Kbps to 10240 Kbps H.265: 14 Kbps to 9984 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, True WDR (120 dB) |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 10 Users / 20 Users |
| Edge Storage | Network Attached Storage (NAS) Local PC for Instant Recording Micro SD Slot, maximum 128 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SmartPSS, DSS |
| Smart Phone | IOS, Android |
Name
Description
Size
Downloads
File
Data Sheet
1.5mb
File
Quick Start Guide
0.9mb
File
Specification
0mb
