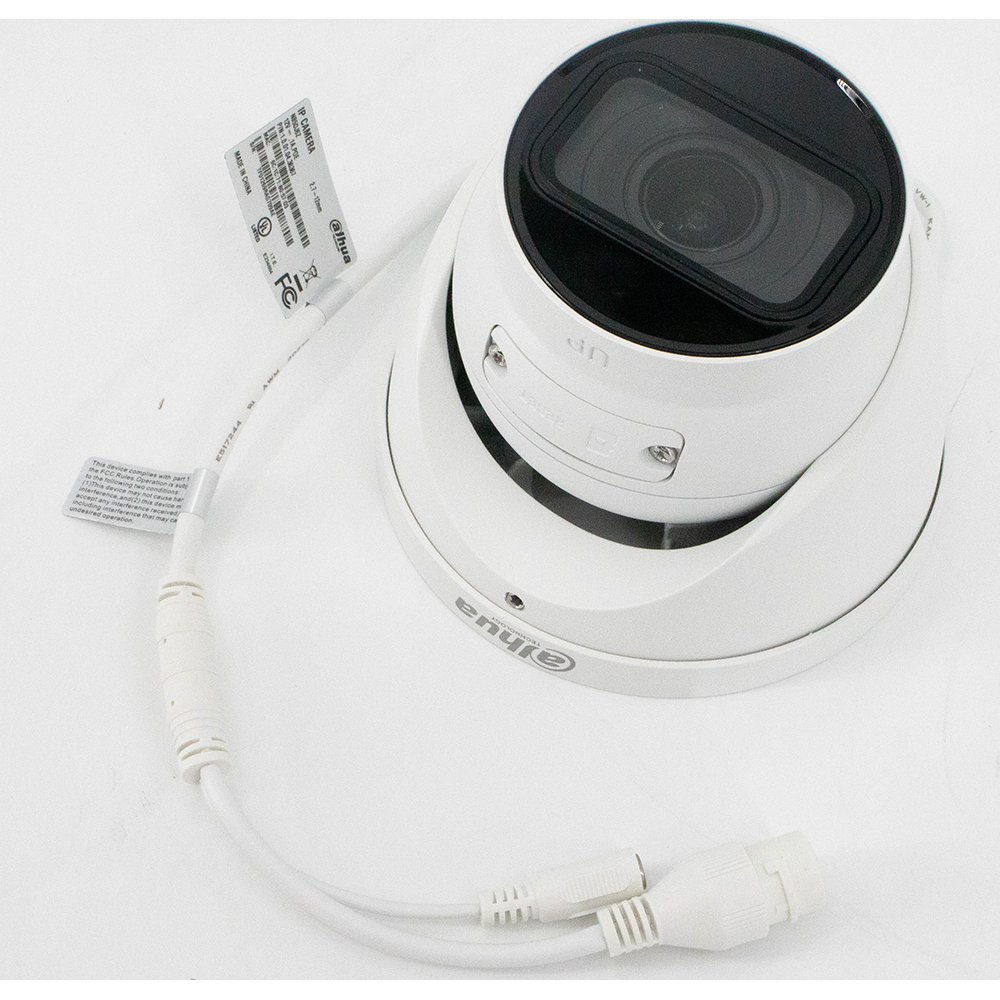

The Dahua 8 MP Starlight+ ePoE camera offers Analytics+ functions at the edge – performing complex real-time face capture, people counting, and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Starlight+, True Wide Dynamic Range, and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 and IK10 rating make the camera suitable for the harshest environments.
WizMind Series devices offer the full complement of Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products deliver perimeter protection, vehicle and crowd density statistics, video metadata, and advanced people counting with heat map functionality. WizMind is ideal for complex applications with demanding requirements that need advanced analytic capabilities.
Features:
- 1/1.8-in. 8 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 8 MP (3840 x 2160) at 30 fps, 2.7 mm to 12 mm Motorized Lens
- Enhanced Power and Data Transmission Distances (ePoE)
- Starlight+ Technology for Low-light Applications
- Analytics+ Functions — Perimeter Protection, People Counting, and Smart Motion Detection+, and Face Detection
- Built-in Microphone
- IP67 Ingress Protection
- True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
- Maximum IR LED Distance 60 m (196.85 ft)
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/1.8-in. 8 MP CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| RAM/ROM | 1 GB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.004 lux at F1.4 (30 IRE) B/W: 0.0004 lux at F1.4 (30 IRE) 0 lux at F1.4 (with IR on) |
| S/N Ratio | Greater than 56 dB |
| IR Distance | Distance up to 50.0 m (164.04 ft) |
| IR On/Off Control | Auto, Manual, Off |
| IR LEDs | Two (2) |
Lens
| Lens Type | Motorized | ||||
| Mount Type | ø14 | ||||
| Focal Length | 2.7 mm to 12 mm | ||||
| Max. Aperture | F1.4 | ||||
| Angle of View | Horizontal: 110.4° to 45.0° Vertical: 57.8° to 25.2° Diagonal: 133.8° to 51.8° | ||||
| Aperture Control | Auto | ||||
| Close Focus Distance | 1.0 m (3.28 ft) | ||||
DORI Distance¹ | Lens | Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| Wide | 86.0 m (282.20 ft) | 34.40 m (112.90 ft) | 17.20 m (56.40 ft) | 8.60 m (28.20 ft) | |
| Telephoto | 196.0 m (643.0 ft) | 78.40 m (257.20 ft) | 39.20 m (128.60 ft) | 19.60 m (64.30 ft) | |
Video
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only) |
| Streaming Capability | Three (3) Streams |
| Resolution | 8 MP (3840 x 2160), 3072 x 2048, 3072 x 1728, 2592 x 1944, 4 MP (2688 x 1520), 3 MP (2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate² | Main Stream: 8 MP (3840 x 2160) at 30 fps |
| Sub Stream 1: D1 at 30 fps | |
| Sub Stream 2: 1080p at 24 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps H.265: 32 Kbps to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual, Gain Priority, Shutter Priority |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Smart IR, Defog |
| Flip | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (8 Areas, Rectangular) |
| Audio | |
| Compression | PCM, G.711A, G.711Mu, G.726 |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| Interoperability | ONVIF Profile S, G, T; CGI; Milestone; P2P |
| Auto Register | Support |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users (Total bandwidth: 80 Mbps) |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP Micro SD Slot, maximum 256 GB |
| Web Viewer | IE (Version 8 and higher), Chrome, Firefox, Safari (Version 12 and higher) |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
