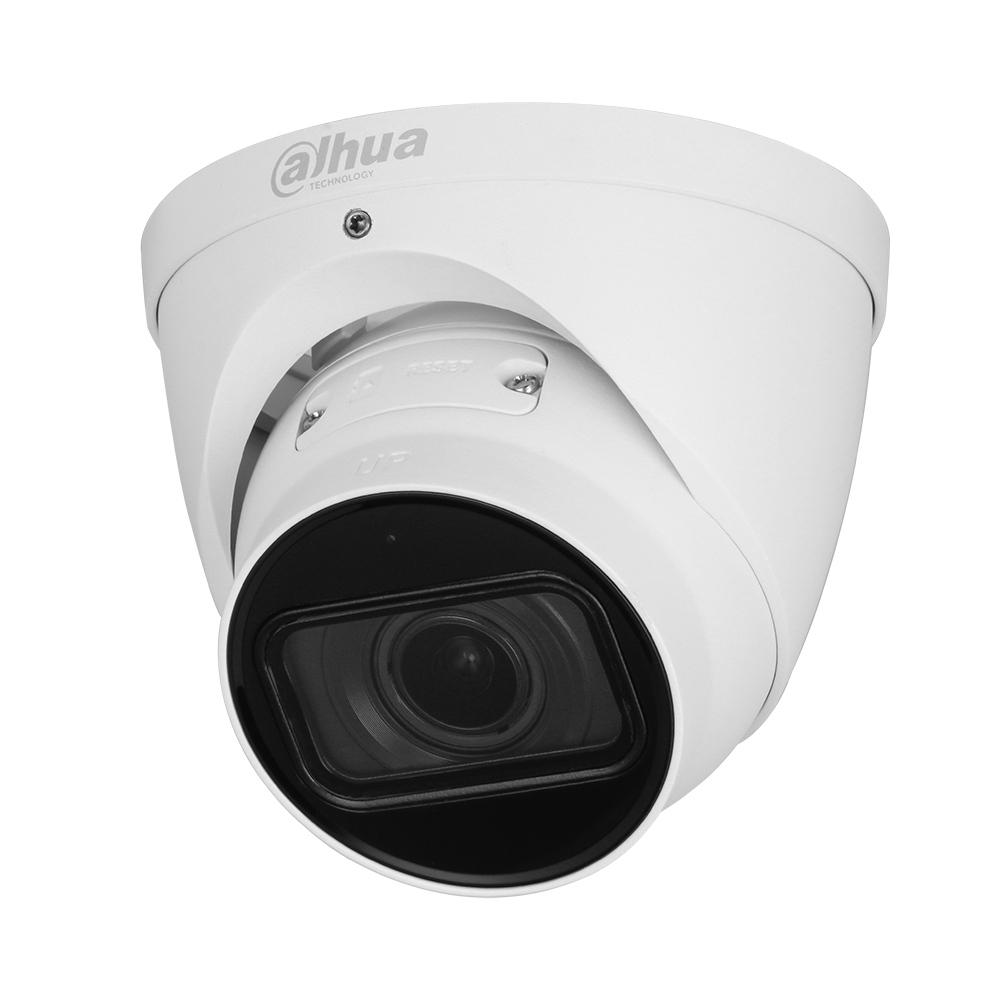

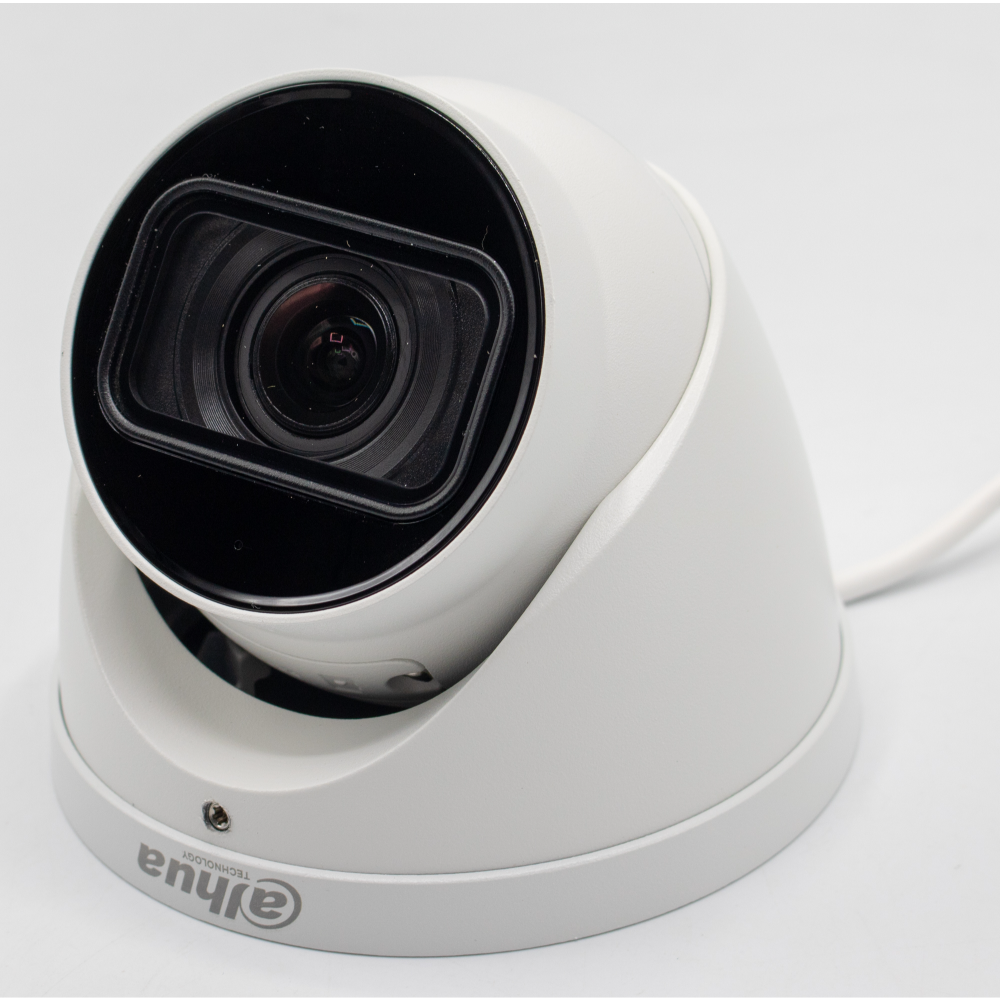

Dahua - N85FJ6Z - 8MP AcuPick Starlight+ Network Eyeball Camera (Vari-focal)
Part number:
N85FJ6Z
Price:
The Dahua AcuPick Starlight+ 8MP Network Eyeball Camera offers Analytics+ functions at the edge–performing complex real-time AcuPick, Face Detection, People Counting, and Perimeter Protection. Dahua’s Analytics+ algorithms significantly improve accuracy and reliability compared to standard intelligent features. The camera is ideal for a host of diverse applications with Starlight+, Ultra Wide Dynamic Range, and Smart IR technologies and an IP67 to operate in the most difficult lighting conditions and environments.
Features:
- 1/1.8-in. 8MP Progressive-scan CMOS Sensor
- Quadruple-stream Encoding
- AI Coding, Smart H.265+, and Smart H.264+ Video Compression
- AI Smart Scene Adaptive (SSA) Technology
- E-PTZ Technology
- 8MP (3840 x 2160) at 30 fps, 2.7 mm to 12 mm Motorized Lens
- Enhanced Power and Data Transmission Distances (ePoE)
- Starlight+ Technology for Low-light Applications
- Analytics+ Functions — AcuPick, Face Detection, People Counting, Perimeter Protection, and Smart Motion Detection+
- True Wide Dynamic Range (120 dB) and True Day/Night IR Cut Filter
- Maximum IR LED Distance 40 m (131.23 ft)
- Built-in Microphone
- IP67 Ingress Protection
- Five-year Warranty*
| Camera |
| Image Sensor | 1/1.8-in. 8MP CMOS | |
| Effective Pixels | 3840 (H) × 2160 (V) | |
| RAM/ROM | 2 GB/4 GB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s | |
| Minimum Illumination | Color | 0.0008 lux at F1.8 (30 IRE) |
| B/W | 0.0004 lux at F1.8 (30 IRE) | |
| IR On | 0 lux at F1.8 | |
| S/N Ratio | > 56 dB | |
| IR Distance | Up to 40 m (131.23 ft) | |
| IR On/Off Control | Auto, Manual | |
| IR LEDs | Two (2) | |
| Lens |
| Lens Type | Motorized | |||||
| Mount Type | M14 | |||||
| Focal Length | 2.7 mm to 12 mm | |||||
| Maximum Aperature | F1.8 | |||||
| Angle of View | Horizontal | 113° to 47° | ||||
| Vertical | 60° to 26° | |||||
| Diagonal | 133° to 53° | |||||
| Focus Control | Auto | |||||
| Close Focus Distance | 1.50 m (4.92 ft) | |||||
| DORI1 Distance | Lens | Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) | |
| Wide | 83 m (274 ft) | 33 m (110 ft) | 17 m (55 ft) | 8 m (27 ft) | ||
| Telephoto | 190 m (622 ft) | 76 m (249 ft) | 38 m (124 ft) | 19 m (62 ft) | ||
| Installation Angle |
| Range | Pan | 0˚ to 360˚ |
| Tilt | 0˚ to 78˚ | |
| Rotation | 0˚ to 360˚ |
| Video |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) | |
| Streaming Capability | Four (4) Streams | |
| Resolution | 8MP (3840 x 2160), 3072 x 2048, 3072 x 1728, 2592 x 1944, 4MP (2688 x 1520), 3 MP (2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate2 | Main Stream | 8MP (3840 x 2160) at 30 fps |
| Sub Stream 1 | D1 at 30 fps | |
| Sub Stream 2 | 1080p at 30 fps | |
| Sub Stream 3 | 720p at 10 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264 | 32 Kbps to 16384 Kbps |
| H.265 | 32 Kbps to 13568 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zones, Rectangular) | |
| Region of Interest | Off, On (4 Zones) | |
| Advanced Features | Smart IR, Defog | |
| Image Rotation | 0°, 90°, 180°, 270° (Support 90°/270° with 4MP (2688 × 1520) resolution and lower) | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (8 Areas, Rectangular) | |
| Network |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| Interoperability | ONVIF (Profile, S, G, T), CGI, P2P |
| Auto Register | Support |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users |
| Edge Storage | Network Attached Storage (NAS), FTP, SFTP, MicroSD Slot (Maximum 512 GB) |
| Web Viewer | Edge (Version 9 or Higher), Chrome (Version 102 or Higher), Firefox (Version 88 or Higher) |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Certifications |
| Safety | UL62368-1 CAN/CSA C22.2 No.62368-1-14 |
| Electromagnetic Capability (EMC) | FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU |
| Construction | |
| Casing | Metal + Plastic |
| Dimensions | 122.0 mm x 108.30 mm (4.80 in. x 4.26 in.) |
| Net Weight | 0.70 kg (1.54 lb) |
| Gross Weight | 0.96 kg (2.12 lb) |
| Analytics+ Functions |
| Smart Plan Schedule | Enable Analytics+ functions depending on a user- defined schedule. Allows the camera to switch analytic functions based on time. |
| Perimeter Protection | • Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. • Monitors a combination of detection methods. • Search and retrieve video based on target type. |
| Face Detection | • Detects and captures a snapshot of a human face within a scene. |
| AI SSA | • Automatically evaluates and compensates for changes in the luminance of a scene. • Regulates the exposure parameters to improve image quality in a backlit scene, especially in scenes with traffic lights or headlights. |
| Queue Management | • Monitors four (4) user-defined regions where people wait in line (or queue). Issues an alarm for the following triggers: People in Line: the number of people in line exceeds a minimum threshold. Wait Time: time a person waits in line is greater than the minimum queue time |
