Dahua - N88BR5V - 8MP IR fisheye with ImmerVision Lens, Ultra Series
Part number:
N88BR5V
Price:

Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The CMOS sensor combined with a fisheye lens provide a high-quality 360° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers multiple dewarp modes for different installations and configurations that enhance the video for a specific scene. The IP67 environmental protection rating and the IK10 vandal resistance ensure the camera operates in the harshest environments.



WizMind Series devices offer advanced Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products deliver perimeter protection and advanced people counting with heat map functionality. WizMind is ideal for complex applications with demanding requirements that need advanced analytic capabilities.



Feature:

  • 1/1.7-in. 8 MP Progressive-scan CMOS Sensor
  • 8 MP (3280 x 2480) at 30 fps Maximum Resolution
  • Immervision Panomorph Lens RPL: B9VVT
  • Triple Stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • Analytics+ Functions — People Counting and Perimeter Protection
  • Multiple Dewarp Modes
  • Built-in Microphone and Speaker
  • Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Maximum IR Distance 10 m (32.81 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through authorized Dahua Dealers)

Lens

Lens TypeImmervision Panomoprh Lens – RPL: B9VVT Fixed
Mount TypeM12
Focal Length1.29 mm
Maximum ApertureF2.0
Angle of ViewHorizontal: 360°
Focus ControlFixed
Close Focus Distance0.20 m (0.66 ft)

Network

EthernetRJ-45 (100/1000 Base-T)
Protocol

HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP,

DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP,

Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP

InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Streaming MethodMulitcast
Maximum User Access20 Users
Edge Storage

Network Attached Storage (NAS)

FTP, SFTP

Micro SD Card, maximum 256 GB

Web ViewerIE, Firefox, Safari
Management SoftwareDSS, DMSS
Mobile Operating SystemiOS, Android
Cybersecurity

Video Encryption, Firmware Encryption, Configuration

Encryption, Digest, WSSE, Account Lockout, Security

Logs, IP/MAC Filtering, Generating and Importing

X.509 Certification, Syslog, HTTPS, 802.1x, Trusted

Boot, Trusted Execution, Trusted Upgrade

Interface

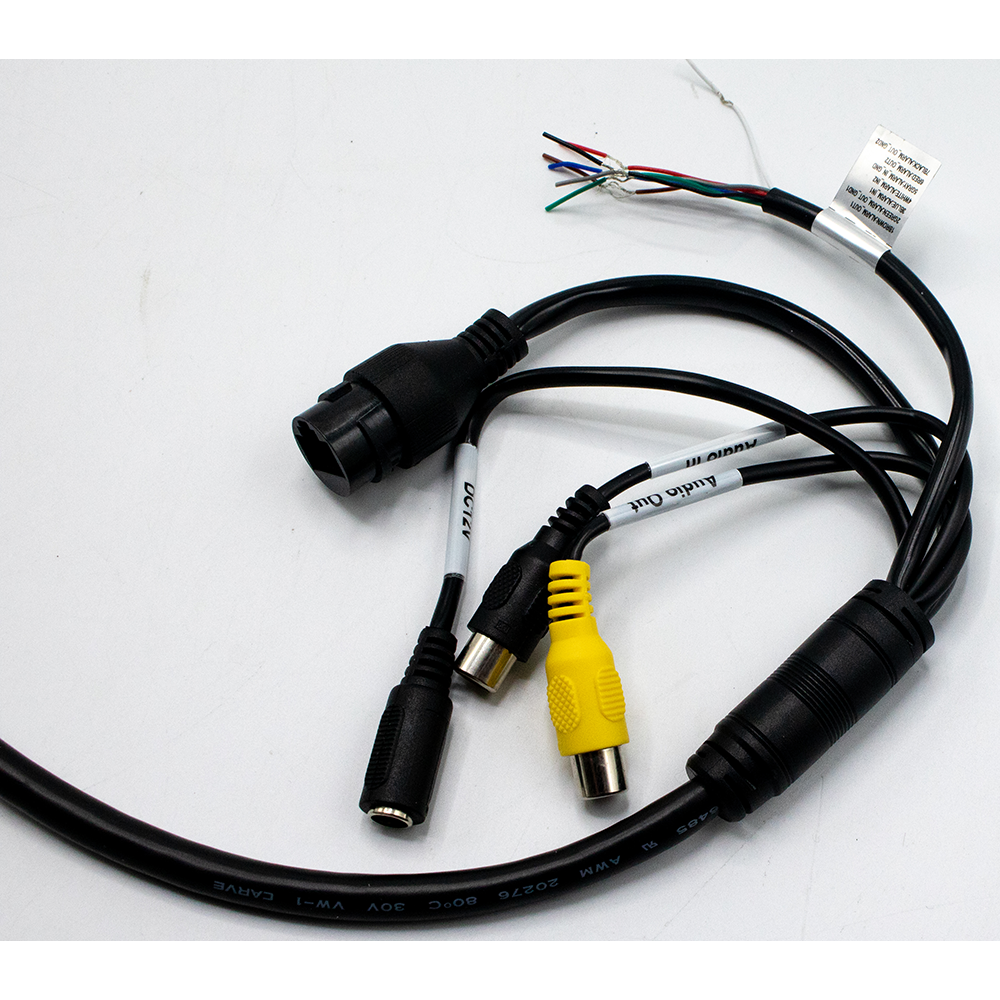

AudioInput: One (1) Channel, RCA + Built-in Microphone Output: One (1) Channel, RCA + Built-in Speaker
Alarm

Input: Two (2) Channels (5 VDC, 5 mA)

Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)

Electrical
Power Supply12 VDC or PoE+ (IEEE802.3at, Class 4)

Power

Consumption

Basic

12 VDC: 6.5 W

PoE: 6.1 W

Maximum

12 VDC: 13 W

PoE: 13.9 W
