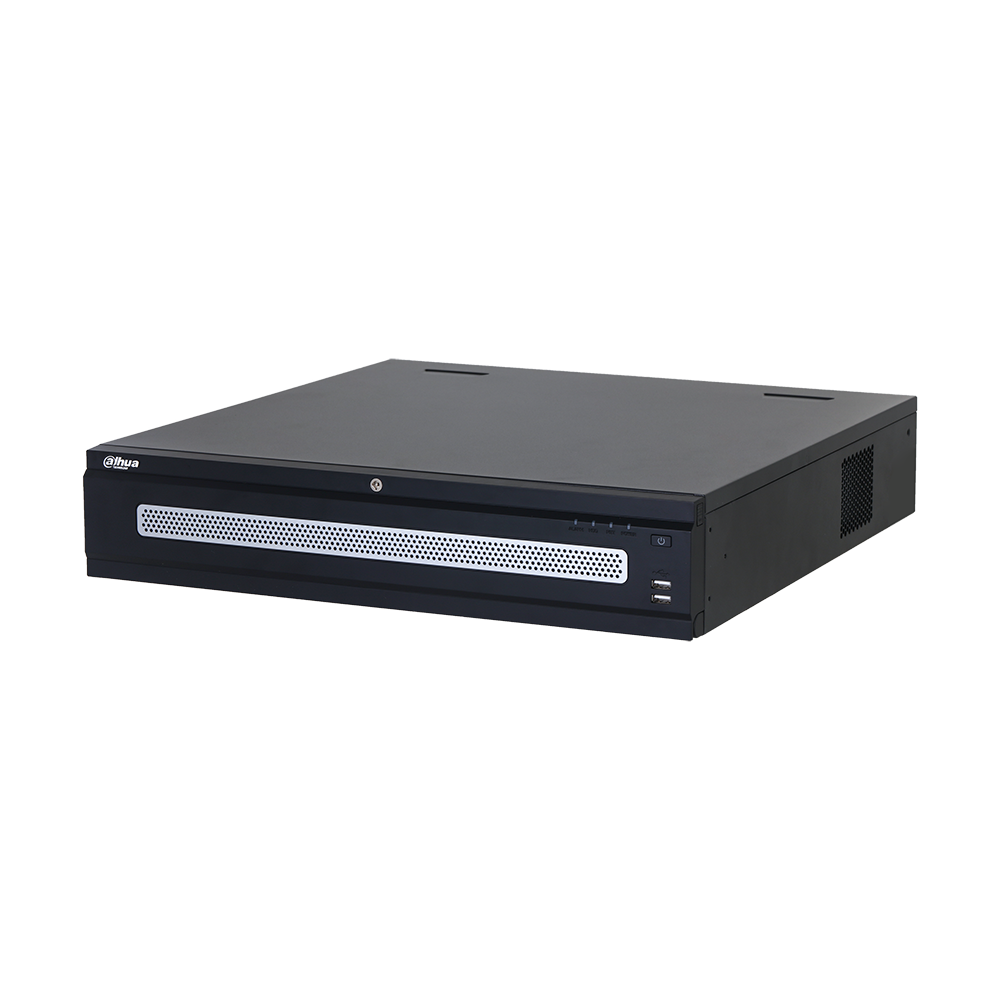

As a new generation of network video recorders, the N98A series offers high-grade recording technology and Analytics+ capabilities that are ideal for IP video security applications. This enterprise-level NVR has a powerful processor, built-in deep learning modules, and image attribute extraction technology. It also comes with high-precision Face Detection+, Perimeter Protection, and 4K resolution support to shorten the response time to events and provide critical information to security personnel so they can take immediate action. This NVR is compatible with numerous third-party devices, making it the perfect solution for security systems with or without a video management system.
Features:
- 32-channel 1080p Self-adaptive Decoding Capability
- Max. 1024/1024/800 Mbps Incoming/Recording/Outgoing Bandwidth
- Supports N+M Cluster
- Supports RAID 0/1/5/6/10
- Drawer-like chassis design allows for HDD hot swapping.
- Analytics+ by Recorder: 4-channel Face Detection and Face Detection+, 8-channel Metadata, 24-channel Perimeter Protection, 32-channel SMD+
- Analytics+ by Camera: Face Detection, Face Detection+, Perimeter Protection, SMD+, Video Metadata, ANPR, People Counting
| Technical Specification | |
| System | |
| Main Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
Analytics+ Recording1
| Recorder Functions | Face Detection, Video Analytics (Human, Vehicle, Non-motor Vehicle), Smart Motion Detection+ |
| Camera Functions | Face Detection, Video Analytics (Human, Vehicle, Non-motor Vehicle), Smart Motion Detection+, Stereo Analysis, Crowd Distribution, People Counting, ANPR, Vehicle Density, Object Monitoring |
Face Detection+ Recording
| Face Database | Capactiy | Up to 40 Databases with 300,000 images (Max. 48 GB) |
| Analytics | Name, Gender, Birthday, Address, Credential Type, Credential Number, Country, Region, State | |
| Recorder Channels | 1. 20 Channels with Image Stream of 20 Images when the NVR is used for Face Detection+ functionality and the camera is used for Face Detection functionality 2. 4 channels with Image Stream of 12 Images when only the NVR is used for Face Detection and Face Detection+ functionality (No camera involvment for Face Detection or Face Detection+ functionality) | |
| Camera Channels | 32 Channels when only the camera is used for Face Detection and Face Detecion+ functionality (No NVR involvement for Face Detection or Face Detection+ functionality) | |
Audio and Video
| Access Channel | 32 Channels | |
| Network Bandwidth | Incoming | Analytics+ Disabled: 1024 Mbps Analytics+ Enabled: 512 Mbps |
| Recording | Analytics+ Disabled: 1024 Mbps Analytics+ Enabled: 512 Mbps | |
| Outgoing | Analytics+ Disabled: 800 Mbps Analytics+ Enabled: 400 Mbps | |
| Resolution | 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D[1] | |
| Decoding Capability | 2 Channel: 32MP at 30 fps or 24 MP at 30 fps 4 Channel: 16MP at 30 fps 8 Channel: 8MP at 30 fps 16 Channel: 4MP at 30 fps 32 Channel: 1080p at 30 fps | |
| HDMI | 2.1 | Input 3 |
| 2.0 | Input 1 Input 2 | |
| 1.4 | Input 4 | |
| Video Output | Simultaneous Mode | 2-channel VGA, 4-channel HDMI Video Output Maximum Resolution VGA1 and VGA2: 1080p HDMI1 and HDMI2: 4K HDMI3: 8K HDMI4:1080p |
| Heterogeneous Mode | 2-channel VGA, 4-channel HDMI Video Output Simultaneous video source output for VGA1 and HDMI1 or VGA2 and HDMI2 Maximum Resolution VGA1 and VGA2: 1080p, HDMI1, HDMI2 and HDMI3: 4K HDMI4: 1080p | |
| Multi-screen Display | Main Screen: 1/4/8/9/16/25/36 Sub Screen: 1/4/8/9/16/25/36 | |
| Third-party Camera Access | ONVIF, RTSP, Sony, Axis, Arecont, Pelco, Canon, Samsung | |
