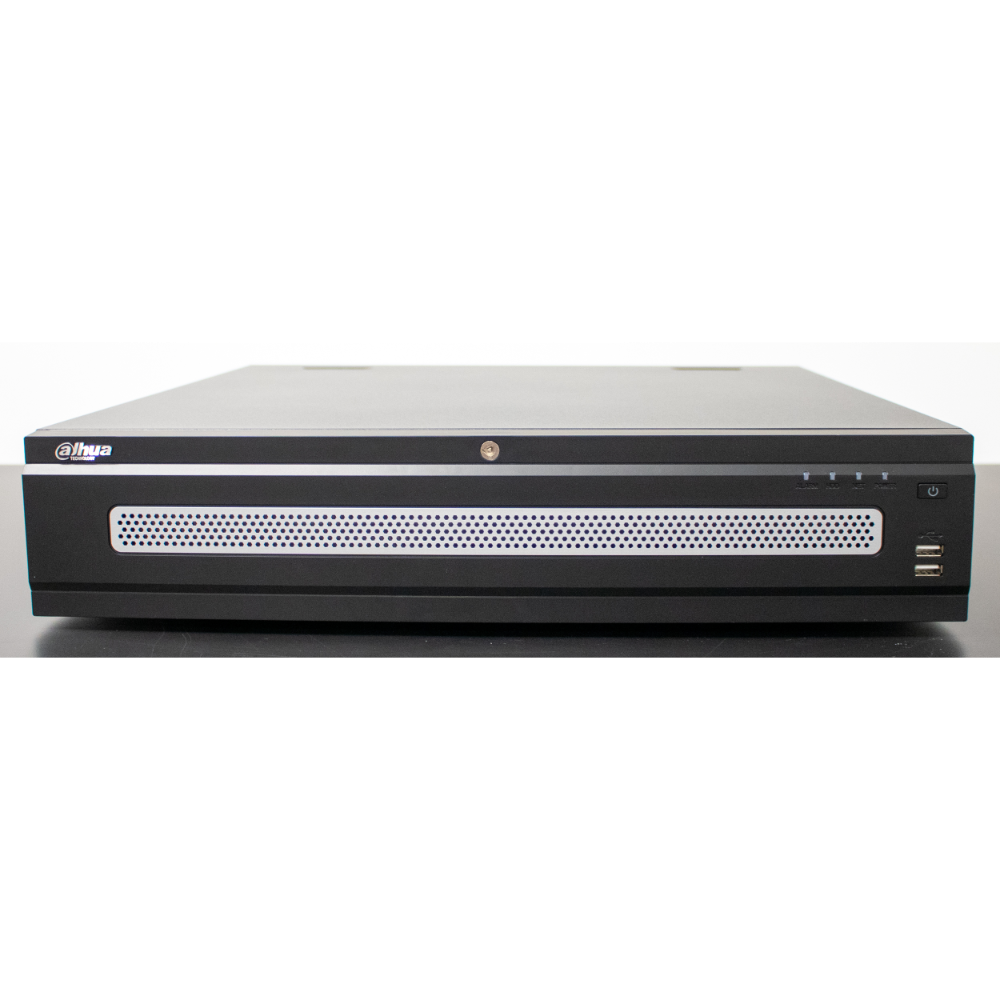

Dahua - N98A7N10 - 128CH 8K WizMind NVR RAID Dual NIC 8SATA 10TB
Part number:
N98A7N10
Price:
As a new generation of network video recorders, the AcuPick N98A series offers high-grade recording technology and Analytics+ capabilities that are ideal for IP video security applications. This enterprise-level NVR has a powerful processor, built-in deep learning modules, and image attribute extraction technology. It also comes with high-precision Face Detection+, Perimeter Protection, and 8K resolution support to shorten the response time to events and provide critical information to security personnel so they can take immediate action. This NVR is compatible with numerous third-party devices, making it the perfect solution for security systems with or without a video management system.
Features:
- 128-channel 1080p Self-adaptive Decoding Capability
- Max. 1024/1024/800 Mbps Incoming/Recording/Outgoing Bandwidth
- Supports N+M Cluster
- Supports RAID 0/1/5/6/10
- Drawer-like chassis design allows for HDD hot swapping.
- Analytics+ by Recorder: AcuPick, 4-channel Face Detection and Face Detection+, 8-channel Metadata, 24-channel Perimeter Protection, 32-channel SMD+
- Analytics+ by Camera: AcuPick, Face Detection, Face Detection+, Perimeter Protection, SMD+, Video Metadata, ANPR, People Counting
| Technical Specification | ||
| System | ||
| Main Processor | Industrial-grade Processor | |
| Operating System | Embedded Linux | |
| Operating Interface | Web, Local GUI | |
| Analytics+ Recording2 | ||
| Recorder Functions | Face Detection, Video Analytics (Human, Vehicle, Non-motor Vehicle), Smart Motion Detection+ | |
| Camera Functions | Face Detection, Video Analytics (Human, Vehicle, Non-motor Vehicle), Smart Motion Detection+, Stereo Analysis, Crowd Distribution, People Counting, ANPR, Vehicle Density, Object Monitoring | |
| Perimeter Protection Recording | ||
| Recorder | 24 channels (10 IVS Rules Per Channel) | |
| Camera | 64 channels | |
| Face Detection Recording | ||
| Face Attributes | Gender, Age Group, Glasses, Expressions, Face Mask, Beard | |
| Recorder Channels | 4 Channels (Up to 12 Face Images Per Channel) | |
| Camera Channels | 64 channels | |
| Face Detection+ Recording | ||
| Face Database | Capactiy | Up to 40 Databases with 300,000 images (Max. 48 GB) |
| Analytics | Name, Gender, Birthday, Address, Credential Type, Credential Number, Country, Region, State | |
| Recorder Channels | 1. 20 channels with an image stream of 20 images when the NVR is used for Face Detection+ functionality and the camera is used for Face Detection functionality 2. 4 channels with smage stream of 12 images when only the NVR is used for Face Detection and Face Detection+ functionality (No camera involvment for Face Detection or Face Detection+ functionality) | |
| Camera Channels | 64 channels when only the camera is used for Face Detection and Face Detecion+ functionality (No NVR involvement for Face Detection or Face Detection+ functionality) | |
| Smart Motion Detection+ (SMD+) Recording | ||
| Recorder Channels | 32 Channels | |
| Camera Channels | 64 channels | |
| Video Metadata | ||
| Recorder Channels | 8 Channels | |
| Camera Channels | 32 Channels | |
| Human Attributes | Top Color, Top Type, Hat, Bag, Age, Gender, Umbrella | |
| Motor Vehicle Attributes | License Plate, Plate Color, Vehicle Model, Vehicle Logo, Plate Color, Ornament, Calling | |
| Non-motor Vehicle Attributes | Vehicle Model, Vehicle Color, Number Of Persons, Helmet | |
| Vehicle License Plate Comparison | ||
| ANPR by Camera (Number of Channels) | 32 Channels | |
| License Plate Database Capacity | 20,000 (Blocklist and Allow List) | |
