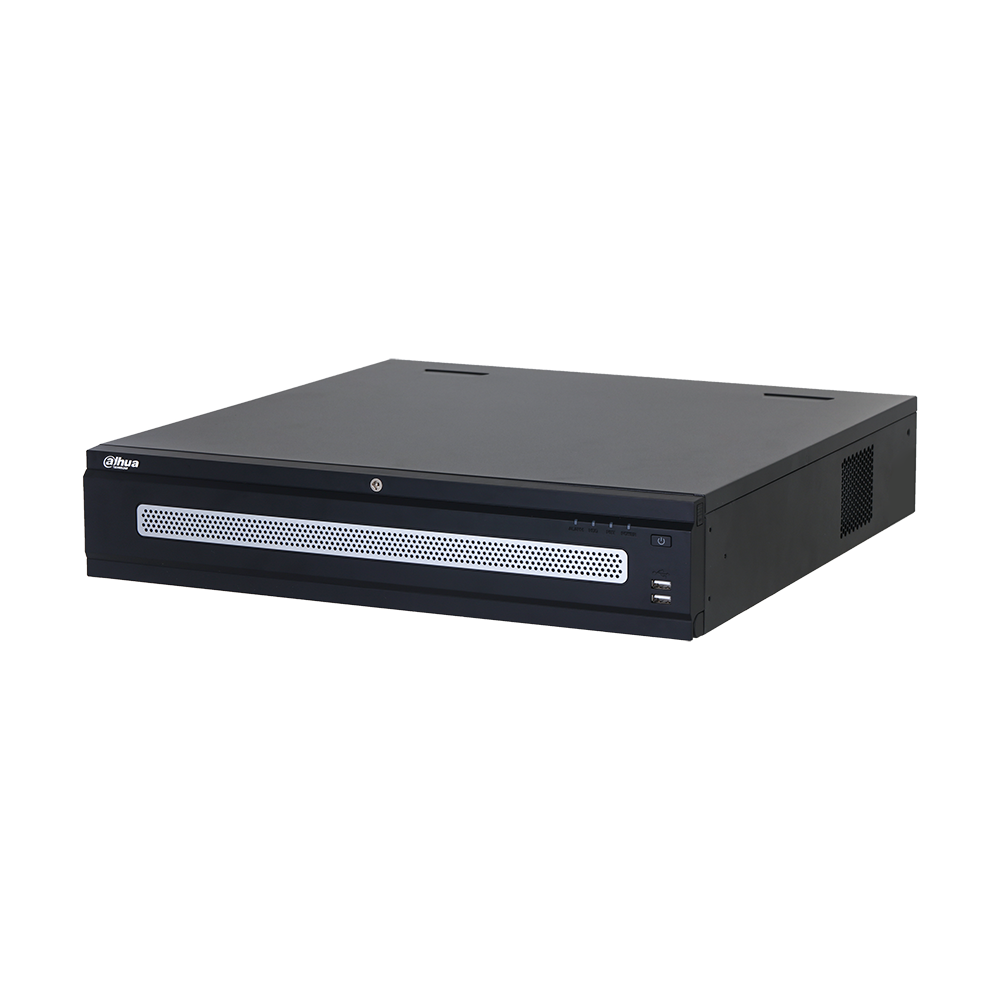

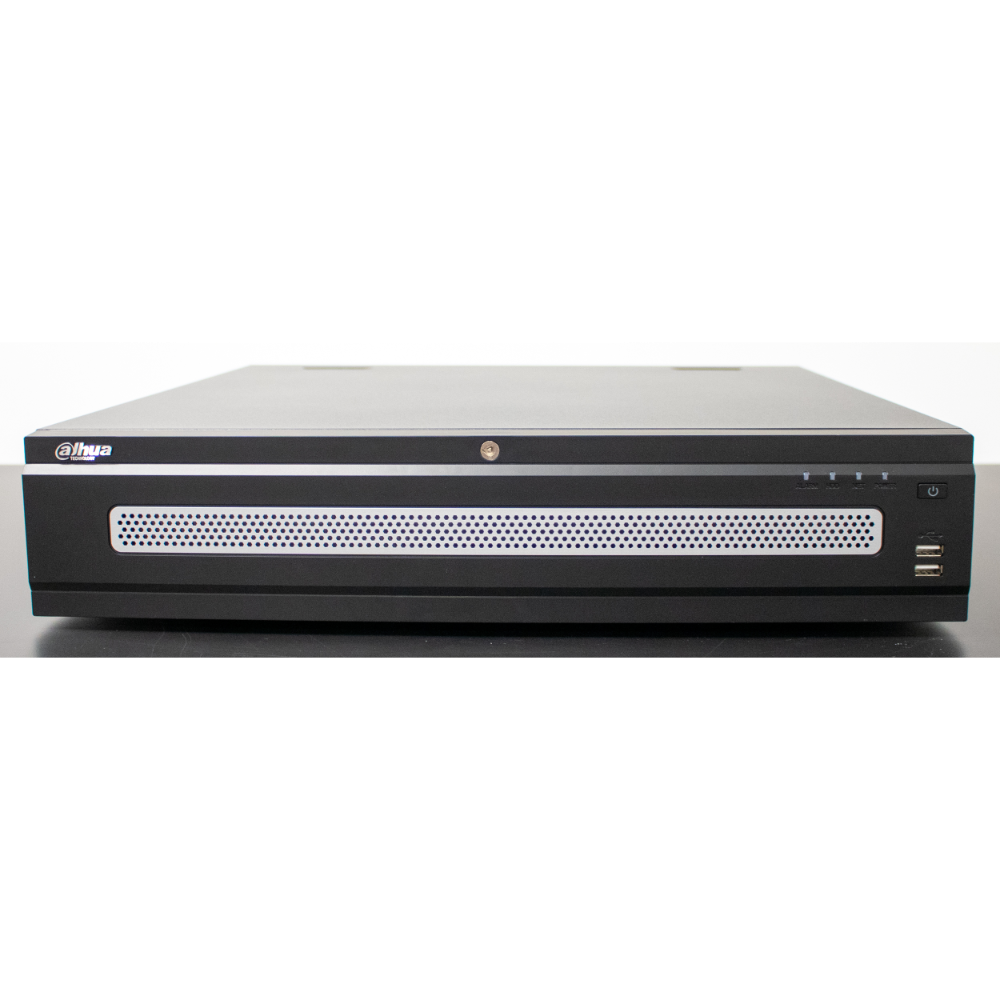

Dahua - N98A7N4 - 128CH 8K WizMind NVR RAID Dual NIC 8SATA 4TB
Part number:
N98A7N4
Price:
128CH 8K WizMind NVR, 1024Mbps recording bandwidth, 2ch@8K/8ch@4K/16ch@1080p decoding capacity, 2U 8SATA, RAID0/1/5/6/10, Analytics+ by recorder, 2x 2500Mpbs Ethernet pors, 4x HDMI ports, Alarm, Audio, 4TB HDD included
As a new generation of network video recorders, the N98A series offers high-grade recording technology and Analytics+ capabilities that are ideal for IP video security applications. This enterprise-level NVR has a powerful processor, built-in deep learning modules, and image attribute extraction technology. It also comes with high-precision Face Detection+, Perimeter Protection, and 4K resolution support to shorten the response time to events and provide critical information to security personnel so they can take immediate action. This NVR is compatible with numerous third-party devices, making it the perfect solution for security systems with or without a video management system.
Features:
- 64-channel 1080p Self-adaptive Decoding Capability
- Max. 1024/1024/800 Mbps Incoming/Recording/Outgoing Bandwidth
- Supports N+M Cluster
- Supports RAID 0/1/5/6/10
- Drawer-like chassis design allows for HDD hot swapping.
- Analytics+ by Recorder: 4-channel Face Detection and Face Detection+, 8-channel Metadata, 24-channel Perimeter Protection, 32-channel SMD+
- Analytics+ by Camera: Face Detection, Face Detection+, Perimeter Protection, SMD+, Video Metadata, ANPR, People Counting
| Technical Specification | ||
| System | ||
| Main Processor | Industrial-grade Processor | |
| Operating System | Embedded Linux | |
| Operating Interface | Web, Local GUI | |
| Analytics+ Recording2 | ||
| Recorder Functions | Face Detection, Video Analytics (Human, Vehicle, Non-motor Vehicle), Smart Motion Detection+ | |
| Camera Functions | Face Detection, Video Analytics (Human, Vehicle, Non-motor Vehicle), Smart Motion Detection+, Stereo Analysis, Crowd Distribution, People Counting, ANPR, Vehicle Density, Object Monitoring | |
| Perimeter Protection Recording | ||
| Recorder | 24 channels (10 IVS Rules Per Channel) | |
| Camera | 64 channels | |
| Face Detection Recording | ||
| Face Attributes | Gender, Age Group, Glasses, Expressions, Face Mask, Beard | |
| Recorder Channels | 4 Channels (Up to 12 Face Images Per Channel) | |
| Camera Channels | 64 channels | |
| Face Detection+ Recording | ||
| Face Database | Capactiy | Up to 40 Databases with 300,000 images (Max. 48 GB) |
| Analytics | Name, Gender, Birthday, Address, Credential Type, Credential Number, Country, Region, State | |
| Recorder Channels | 1. 20 channels with an image stream of 20 images when the NVR is used for Face Detection+ functionality and the camera is used for Face Detection functionality 2. 4 channels with smage stream of 12 images when only the NVR is used for Face Detection and Face Detection+ functionality (No camera involvment for Face Detection or Face Detection+ functionality) | |
| Camera Channels | 64 channels when only the camera is used for Face Detection and Face Detecion+ functionality (No NVR involvement for Face Detection or Face Detection+ functionality) | |
| Smart Motion Detection+ (SMD+) Recording | ||
| Recorder Channels | 32 Channels | |
| Camera Channels | 64 channels | |
| Video Metadata | ||
| Recorder Channels | 8 Channels | |
| Camera Channels | 32 Channels | |
| Human Attributes | Top Color, Top Type, Hat, Bag, Age, Gender, Umbrella | |
| Motor Vehicle Attributes | License Plate, Plate Color, Vehicle Model, Vehicle Logo, Plate Color, Ornament, Calling | |
| Non-motor Vehicle Attributes | Vehicle Model, Vehicle Color, Number Of Persons, Helmet | |
| Vehicle License Plate Comparison | ||
| ANPR by Camera (Number of Channels) | 32 Channels | |
| License Plate Database Capacity | 20,000 (Blocklist and Allow List) | |
| Ordering Information | ||
| Type | Part Number | Description |
| 128 Channels WizMind NVR | N98A7N | 128-channel 2U 8HDDs WizMind Network Video Recorder (No Built-in HDD) |
| N98A7N4 | 128-channel 2U 8HDDs WizMind Network Video Recorder (4 TB Built-in HDD) | |
| N98A7N8 | 128-channel 2U 8HDDs WizMind Network Video Recorder (8 TB Built-in HDD) | |
| N98A7N10 | 128-channel 2U 8HDDs WizMind Network Video Recorder (10 TB Built-in HDD) | |
| Accessories (Optional) | ESS1504C | 4 HDDs eSATA Storage |
| Storage | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| Alarm | |
| General Alarm | Motion Detection, Video Tampering, Video Loss, Scene Changing, PIR Alarm, IPC External Alarm |
| Anomaly Alarm | Camera Offline, Storage Error, Disk Full, IP Conflict, Mac Conflict, Login Lock, Abnormal Fan Behavior |
| Intelligent Alarm | Face Detection, Face Detection+, Perimeter Protection (Intrusion And Tripwire), SMD+ Alarms, ANPR, People Counting, Stereo Analysis, Crowd Distribution, Heat Map |
| Alarm Linkage | Record, Snapshot, IPC External Alarm Output, Buzzer, Log, Preset, Email |
| Auxiliary Interface | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels |
| HDD Interface | 8 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 x A/B |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 4 |
| VGA | 2 |
| Network Port | 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) |
| Electrical | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | <18 W (without HDD) |
| Environmental | |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH) |
| Certifications | |
| Safety | UL 62368-1 CAN/CSA C22.2 No.62368-1-14 |
| Electromagnetic Compatibility | FCC: 47 CFR FCC Part15, SubpartB, Class A EN 55032:2020, Class A EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 EN 55024:2010+A1:2015 EN 55035:2020 EN 50130-4:2011+A1:2014 |
| Electrical | |
| Net Weight | 6.4 kg (14.11 lb) (without HDD) |
| Gross Weight | 10.35 kg (22.82 lb) (without HDD) |
| Product Dimensions (W x D x H) | 444.0 mm × 456.6 mm x 95.0 mm (17.48 in. × 17.98 in. × 3.74 in.) |
| Packaging Dimensions (W x D x H) | 570.0 mm × 570.0 mm × 226.0 mm (22.44 in. × 22.44 in. × 8.90 in.) |
| Installation | Rack or Desktop |
