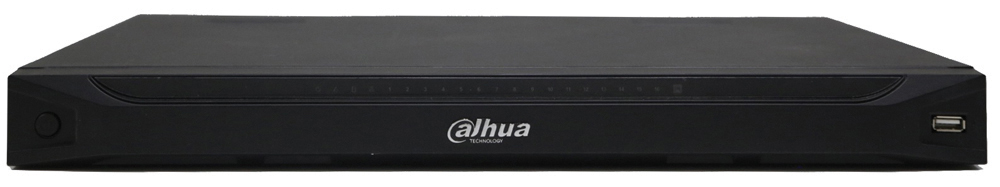

Ultra HD Network Video Decoder
Features:
- H.265/H.264/MPEG-4 Video Decoding
- 4 ch at 12 MP, 4 ch at 4K, 16 ch at 1080p, 64 ch at D1 Decoding Ability
- 1 ch HDMI Input, 4 ch HDMI/VGA/BNC Output, HDMI Support, Ultra HD 4K Output
- Supports Up to 4 Video-wall Display Units, Supports configuration of 1 x 1, 2 x 1, 2 x 2
- Supports Audio, Alarm, Bi-directional Talk, RS485
System
| Main Processor | Intel x86 processor |
| Operating System | Embedded LINUX |
Performance
| Video Format | H.265/H.264/MPEG4/ MJPEG | ||||||||||||||||||||||||
| Audio Format | PCM/G.711 | ||||||||||||||||||||||||
| Video Decoding Separately |
|
||||||||||||||||||||||||
| Total Video Decoding | 4CH@12MP/4CH@4K/16CH@1080P/36CH@720P/64CH@D1 | ||||||||||||||||||||||||
| Decoding Resolution | 12MP/8MP/5MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF | ||||||||||||||||||||||||
| Video Frame Rate | PAL:1-25fps ,NTSC:1-30fps | ||||||||||||||||||||||||
| Video Output | 4ch@VGA, 4ch@HDMI, 4ch@BNC | ||||||||||||||||||||||||
| Video Input | 1ch@HDMI | ||||||||||||||||||||||||
| Video Output | VGA, HDMI1.4, BNC | ||||||||||||||||||||||||
| Audio Output | HDMI/BNC | ||||||||||||||||||||||||
| Bi-directional Talk | 1 pair, BNC in / BNC out (2Vrms, 10K ohms) | ||||||||||||||||||||||||
| Alarm Input | 4ch | ||||||||||||||||||||||||
| Alarm Output | 4ch relay out (30VDC 1A, 125VAC, 0.5A) | ||||||||||||||||||||||||
| Communication Interface | 1 RJ45 network port (10M/100M/1000M); 1 RS232; RS485 |
