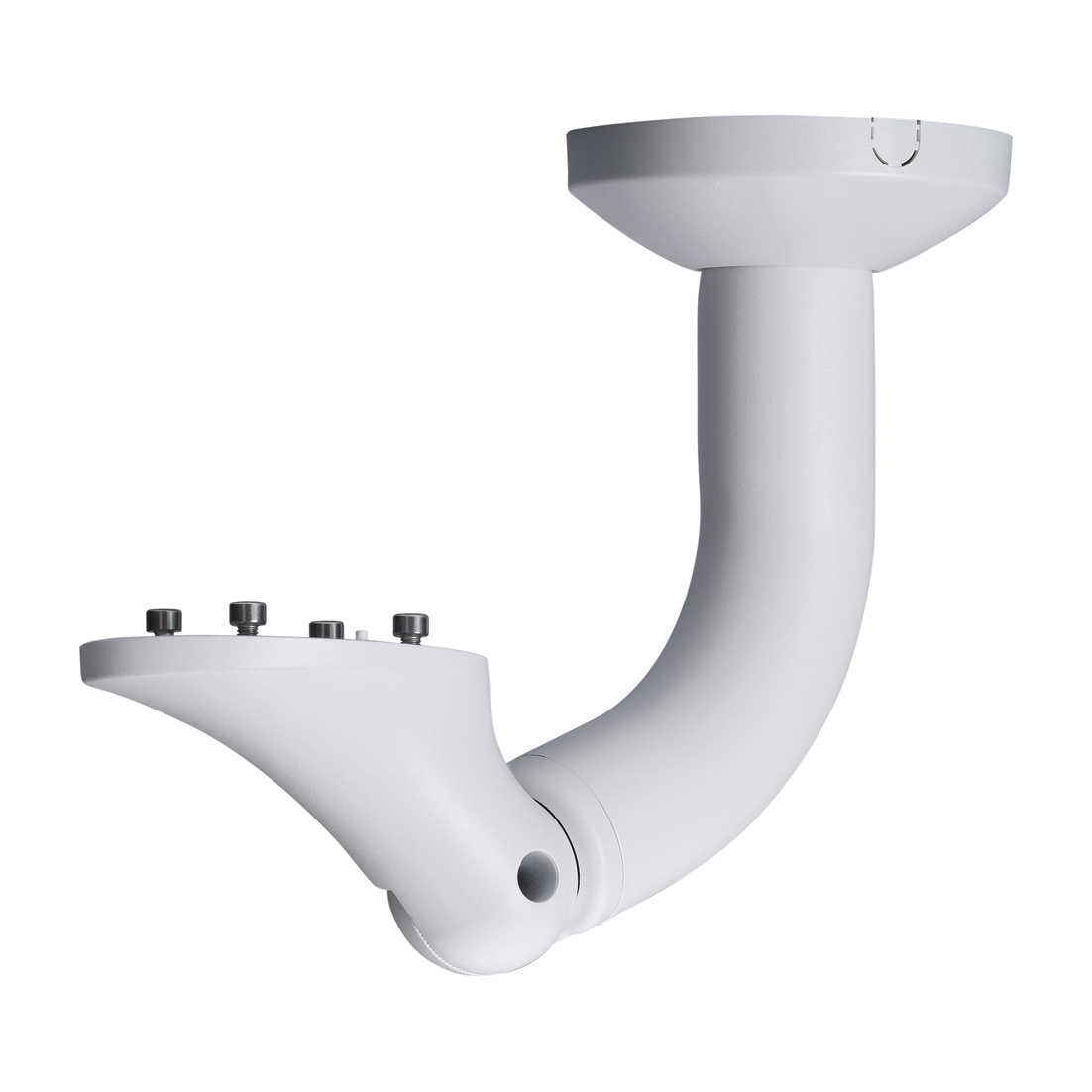

14-in. Housing Ceiling Mount Bracket
Features:
- Material: Aluminum and PC
- Dimensions (W x H x D): 314.0 mm x 250.0 mm x 133.0 mm (12.36 in. x 9.84 in. x 5.26 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing: 4.0 kg (8.82 lb)
- Weight: 0.99 kg (2.18 lb)
| Material | Aluminum & PC |
| Dimension (W x H x D) | 314mm x 250mm x Φ133mm |
| Pipe Thread | N/A |
| Operating Temperature | -40ºC ~60ºC |
| Humidity | 0~90% RH |
| Load Bearing | 3.0Kg |
| Weight | 0.99Kg |
| Applicable Model | Please see “Accessory Selection” |
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
