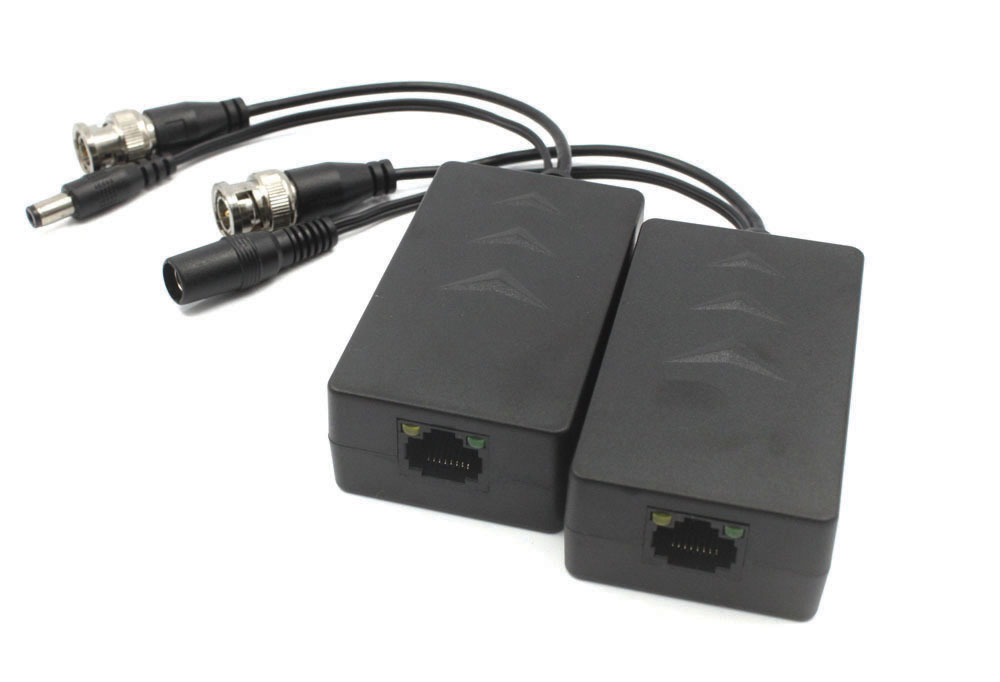

4MP Passive HDCVI Balun with Power
Features:
- Input voltage 24 VDC to 36 VDC
- Provides 12 VDC, 8 W Power Supply to Remote Cameras
- Real-time Video Transmission without Delay or Interference.
- Transmission distance: 300 m (1312 ft)
- Transmit one-channel HD Video and one channel DC Power over a UTP (CAT-5E or CAT-6) Cable
- Surge Protection and Anti-interference Protection
- RJ45 Standard Connection
- Two (2) Baluns Included
Video
| Transmission Signal | One (1) Channel |
| Transmission Distance, maximum | HDCVI 720p: 400 m (1312.34 ft) 1080p: 250 m (820.21 ft) 4 MP: 200 m (656.17 ft) |
| Category Type | UTP CAT 5E/6 |
Power Supply
| Input Voltage | Distance | Output Power |
| 24 VDC |
0 m to 100 m 100 m to 200 m |
12 VDC, 8 W 12 VDC, 6 W |
| 36 VDC | 0 m to 300 m (0 ft to 984.24 ft) |
12 VDC, 8W |
Video Transmission Properties and Ports
| Coaxial Video Connector | BNC-M |
| Connection | RJ45 |
| Compatible Format | HDCVI, AHD, TVI, CVBS |
| Resolution | 720p, 1080p, 4 MP |
| Anti-interference | > 60 dB |
