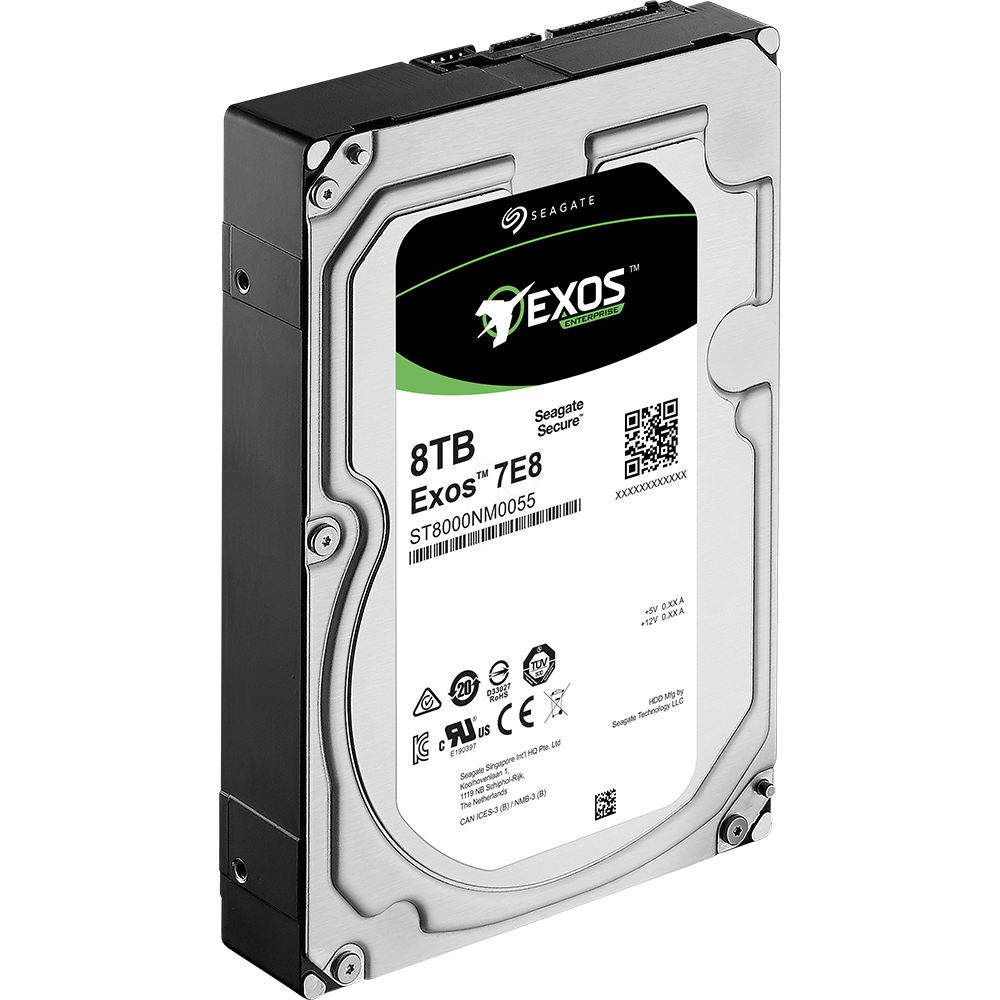

Enterprise-grade Hard Disk Drive-8TB, For Use with Dahua NVRs, HDCVI DVRs, and EVS Storage Units
Features :
- 8 TB Capacity
- 3.5-in. Enterprise Drive for Bulk Data Applications
- RAID Support
- Designed for 24/7 Surveillance-optimized Hard Drive Applications
|
|
ST8000NM000A |
ST10000NM001G |
|
Capacity |
8 TB |
10 TB |
|
Spindle Speed |
7200 RPM |
7200 RPM |
|
Cache, multi-segmented |
256 MB |
256 |
|
Interface Access Speed |
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s |
SATA 6.0 Gb/s |
|
Bytes per Sector |
512 |
512 |
|
Maximum Sustained Transfer Rate |
249 MB/s |
245 MB/s |
|
Average Latency (ms) |
4.16 ms |
4.16 |
|
Average Idle Power |
7.64 W |
5.0 W |
|
Average Operating Power |
12.81 W |
9.5 W |
|
MTBF Hours |
2 million |
2.5 million |
|
Power Supply Requirements |
+12 V and +5 V |
+12 V and +5 V |
|
Operating Temperature |
5° C to 60° C (41° F to 140° F) |
5° C to 60° C (41° F to 140° F) |
|
Weight |
716.0 g (1.58 lb) |
670.0 g(1.477 lb) |
|
Dimensions, (H x W x D) |
26.10 mm x 101.85 mm x 147.0 mm (1.03 in. x 4.01 in. x 5.79 in.) |
26.11 mm x 101.85 mm x 147.0 mm (1.03 in. x 4.01 in. x 5.79 in.) |
