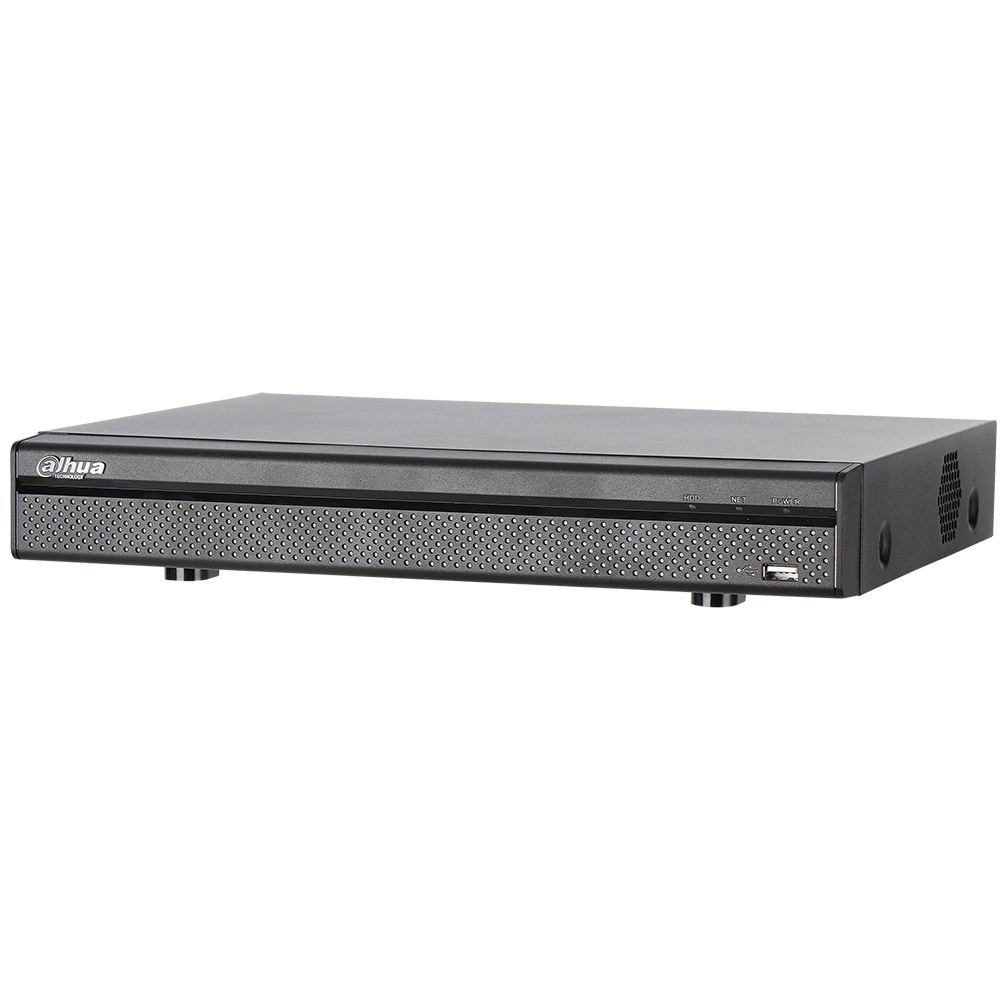

X51B1E - EOL Replacement: X51C1E
The X51B1E Series HDCVI DVR offers 1080p recording on each HDCVI channel and a host of advanced features and functions. The X51B1E takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously.
The X51B1E utilizes the Smart H.265+ Codec to significantly improve encoding efficiency and to reduce bandwidth and storage costs. This recorder is the ideal solution for actively monitoring and recording video feeds in a wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
Features:
- Embedded Linux Processor
- Smart H.265+ and Smart H.264+ Dual Codec
- Dual-stream Recording
- 5 M-N (1296 x 1944) at 20 fps Maximum Recording Resolution
- Four (4) HDCVI, AHD, TVI, CVBS Channels
- 4 + 2 IP Channels, up to 6 MP per Channel
- Maximum 24 Mbps Incoming Bandwidth
- Built-in Smart Search
- Intelligent Video System
- One (1) SATA HDD Port, up to 6 TB per Hard Disk Drive
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Interface |
| Analog Camera Input | Four (4) Channels, BNC |
| Preview Ability¹ | Channels 1 and 2: 5 M-N at 20 fps or 4 M-N, 1080p, 720p at 30 fps Other Channels: 4 M-N, 1080p, 720p at 30 fps |
| HDCVI | 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps, 720p at 30 fps |
| AHD | 5 MP, 4 MP, 1080p at 30 fps, 720p at 30 fps |
| TVI | 5 MP, 4 MP, 1080p at 30 fps, 720p at 30 fps |
| CVBS | NTSC |
| IP Camera Input | 4 + 2 |
| Audio | |
| Input | Four (4) Channels, RCA |
| Output | One (1) Channel, RCA |
| Two-way Talk | Reuse Audio In/Out, RCA |
| Display |
| Interface | One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) |
| Native Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Decoding | 4 Channels of 5 M-N at 10 fps 4 Channels of 1080p at 7 fps 4 Channels of 720p at 15 fps 4 Channels of 960H at 30 fps |
| Multi-screen Display | |
| IP extension mode disabled | 1/4 |
| IP extension mode enabled | 1/4/6 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
