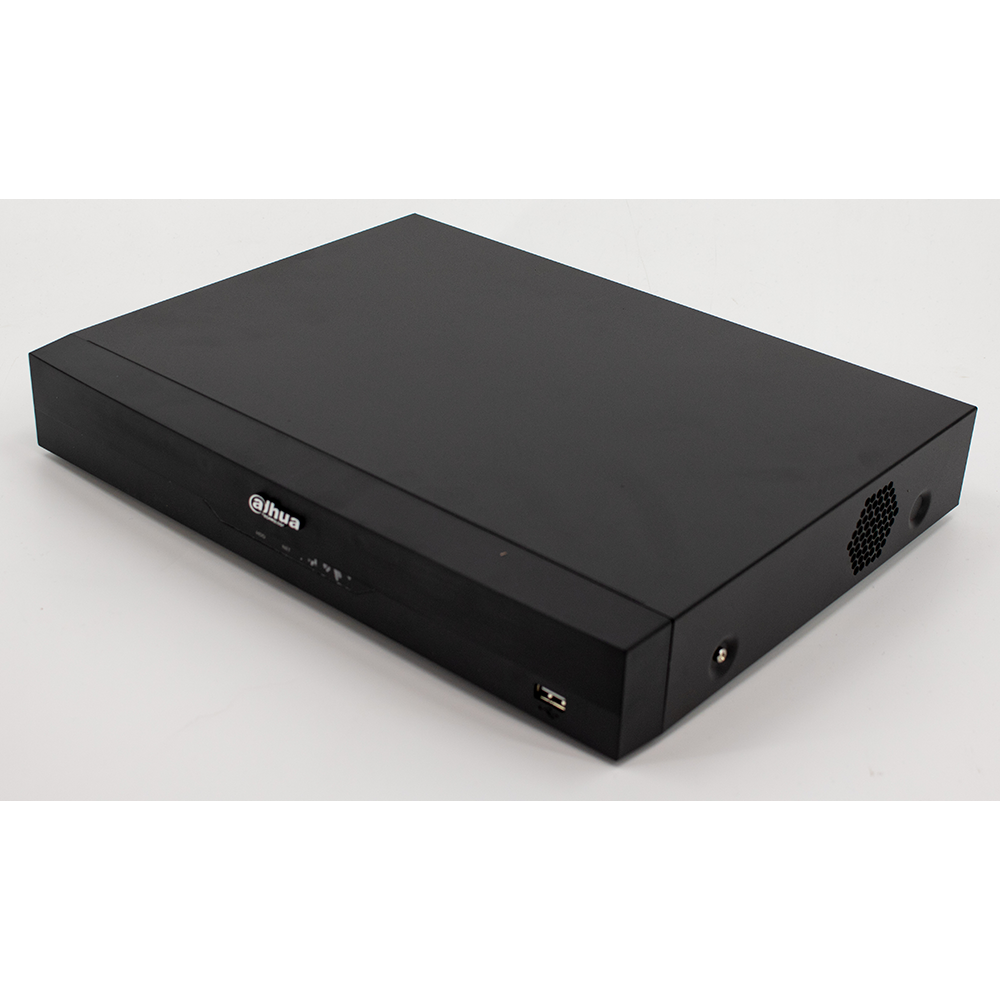

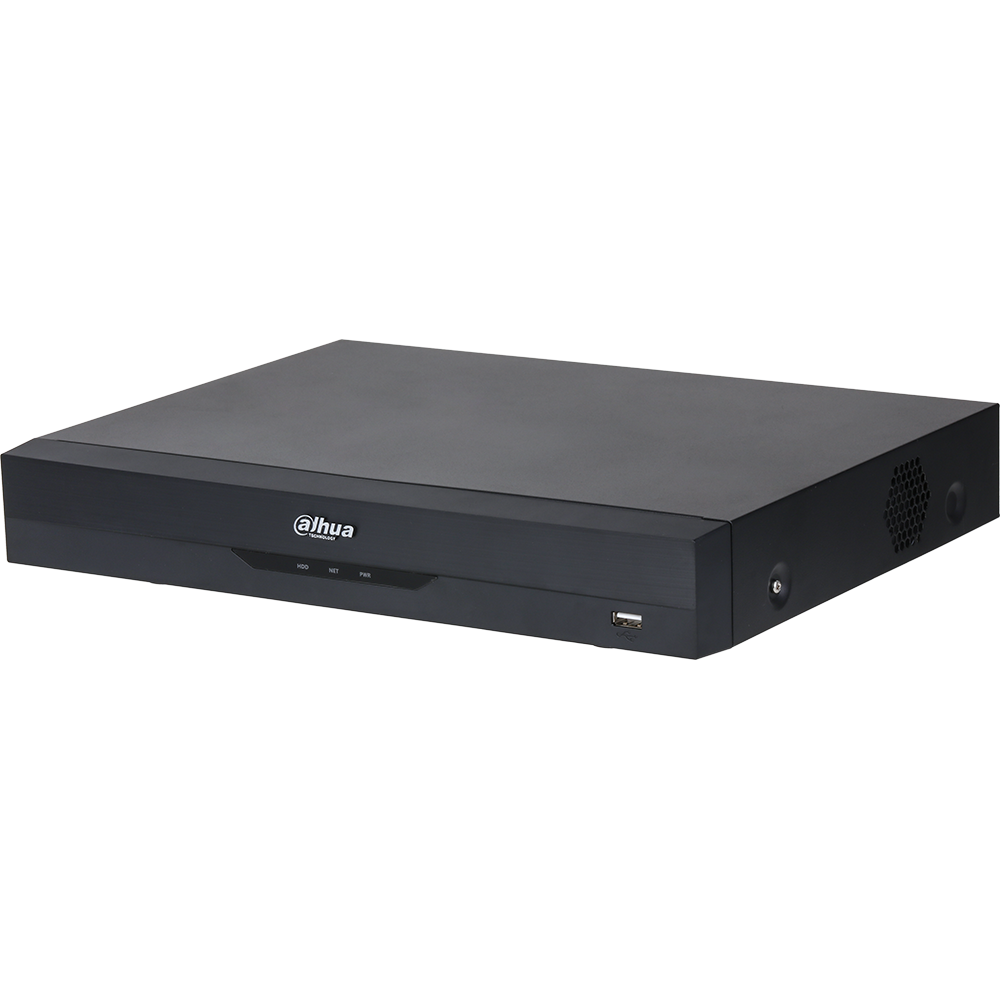

Dahua - X51C2E2 - 8CH Analytics+ Penta-brid XVR H.265 5M-N Mini 1U 1 SATA Bays, 2TB
Part number:
X51C2E2
Price:
The X51C Series HDCVI DVR offers 5M-N/1080p recording on each HDCVI channel and a host of advanced features and functions. The DVR takes advantage of HDCVI technology for easy integration into existing video security systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. This recorder is the ideal solution for actively monitoring retail stores, personal property and homes.
Features :
- 1080p at 30 fps Recording Resolution on All HDCVI Channels
- Available with a 2 TB, 4 TB, 6 TB, or 8 TB Pre-installed Hard Drive
- Dual-stream Video Recording
- AI Coding Technology for High-quality Human/Vehicle Video
- Auto-detection and Auto-configuration of Video Inputs
- 8 +4 IP Camera Channels, each channel up to 6 MP
- Maximum 64 Mbps Incoming Bandwidth
- Perimeter Protection and Smart Motion Detection (SMD)
- Long-distance Video Transmission
- 5-year Warranty (for products sold through an authorized Dahua dealer)
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection², ³ | |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on a single channel • 10 Tripwire/Intrusion rules |
| Live View | • Configure Rule and Object Inspection area • Display object classification, event types, trigger time, image snapshot, and object types • Export event playback 10 seconds prior to or after event |
| Playback | • Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event • Snapshot capacity: 500,000 |
| Analytics+ Smart Motion Detection², ³ | |
| Performance | • Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on four(4) channels |
| Preview | • Configure and inspect detection area |
| Playback | Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event |

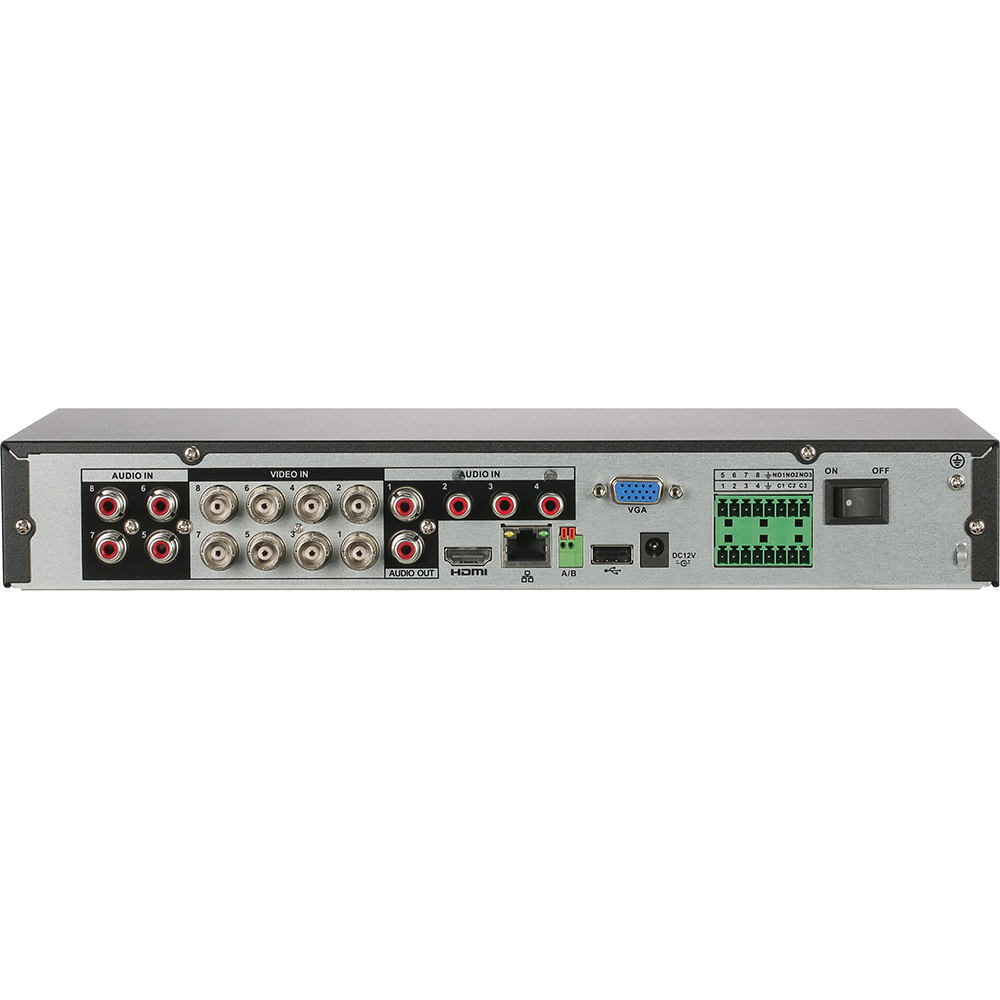

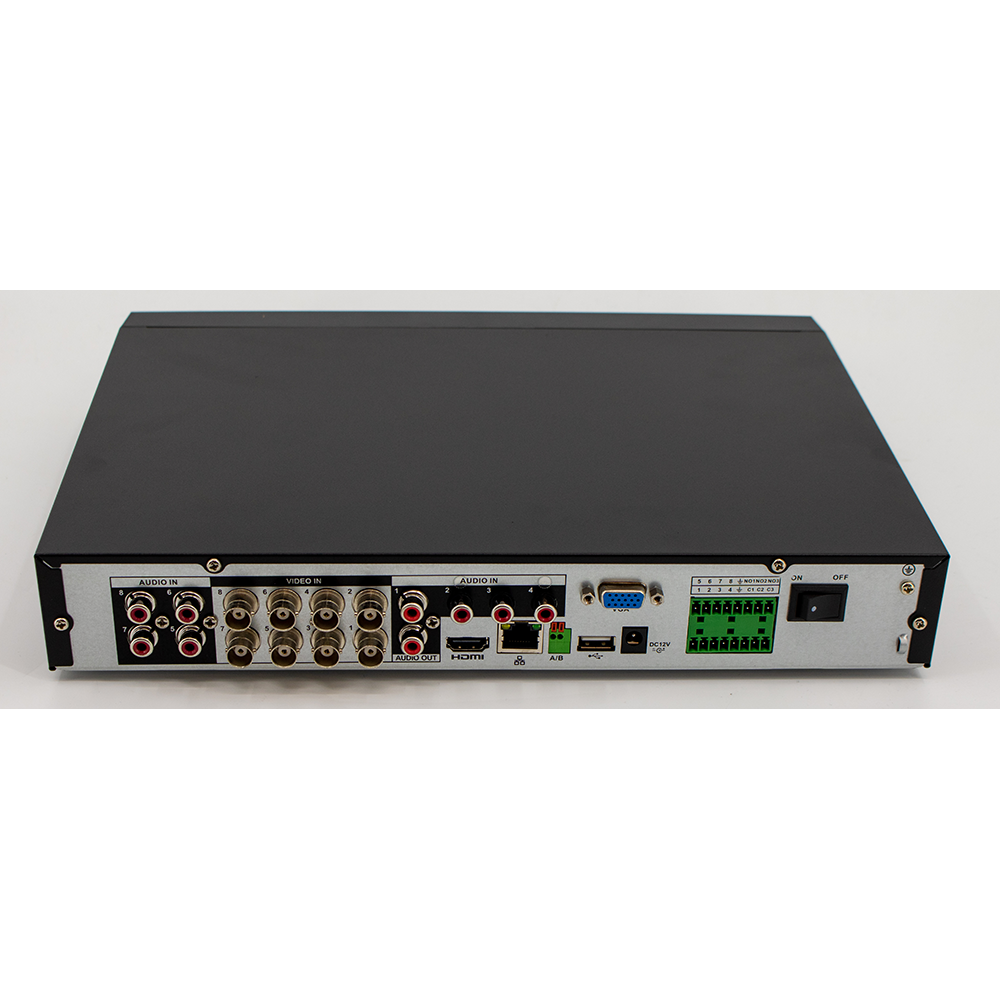

| Interface | |
| Analog Camera Input | 8 Channels, BNC |
| HDCVI | 5MP, 4MP, 1080p, 720p |
| AHD | 5MP, 4MP, 1080p, 720p |
| TVI | 5MP, 4MP, 1080p, 720p |
| CVBS | NTSC |
| IP Camera Input | 8 + 4 Channels, each channel up to 6 MP (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Audio | Input: Four (8) Channels, RCA Output: One (1) Channel, RCA |
| Two-way Talk | Audio Input Channel 1 In/ Audio Output, RCA |
| Recording | |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Recording Resolution | 5 M-N, 4 M-N, 1080p, 1080N, 720p, 960H, D1, CIF (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Main Stream | 5 M-N at 10 fps 4 M-N or 1080p at 15 fps 1080N, 720p, 960H, D1, or CIF at 30 fps |
| Sub Stream | 960H at 15 fps D1 or CIF at 30 fps |
| Max. Incoming Bandwidth | 64 Mbps |
| Bit Rate | 32 Kbps to 6144 Kbps per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 to 60 minutes (default: 60 minutes), Pre-record: 1 to 30 s, Post-record: 10 to 300 s |
| Audio Compression | G.711a, G.711Mu, PCM |
| Audio Sample Rate | 8 KHz, 16 bits per Channel |
| Audio Bit Rate | 64 Kbps per Channel |
| Display | |
| Interface | One (1) HDMI (1920 x 1080) Ports One (1) VGA (1920 x 1080) Port |
| Native Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Playback Decoding | Eight (8) Channels of 5M-N at 10 fps Eight (8) Channels of 4M-N at 15 fps Eight (8) Channels of 1080N/720p at 30 fps Four (4) Channels of 5M-N at 20 fps Four (4) Channels of 4M-N at 30 fps One (1) Channel of 6 MP at 30 fps |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | One (1) RJ-45 (100 Mbps) Port |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System I | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis |
| Alarm Input | Eight (8) Channels |
| Relay Output | Three (3) Channels |
| Playback and Backup | |
| Playback | 1/4/9 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | One (1) SATA Port, up to 10 TB capacity |
| Auxiliary Interface | |
| USB | Two (2) USB 2.0 Ports |
| RS485 | One (1) Port for PTZ Control |
| Electrical | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | < 7 W, without HDD |
| Construction | |
| Dimensions | Mini 1U, 325.0 mm x 257.10 mm x 55.0 mm (12.80 in. x 10.12 in. x 2.17 in.) |
| Net Weight | 1.20 kg (2.70 lb) |
| Gross Weight | 1.90 kg (4.20 lb) |
| Installation | Desktop |
| Video Transmission Distance | |
| RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K/4MP: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K/4MP: 700 m (2296.59 ft) |
| CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K/4MP: 300 m (984.25 ft) |
| Environmental | |
| Operating Conditions | –10° C to +55° C (+14° F to +131° F), 0% to 90% RH |
| Storage Conditions | –20° C to +70° C (–4°F to +158° F), 0% to 90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others |
| Certifications | |
| Safety | EN 60950-1 IEC 60950-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B EN 61000-3-2 EN 61000-3-3 EN 55032 EN 50130 EN 55024 |
